LOG Audio CUBE I Speaker Set (Clearance)

Colour
Black Piano Finish

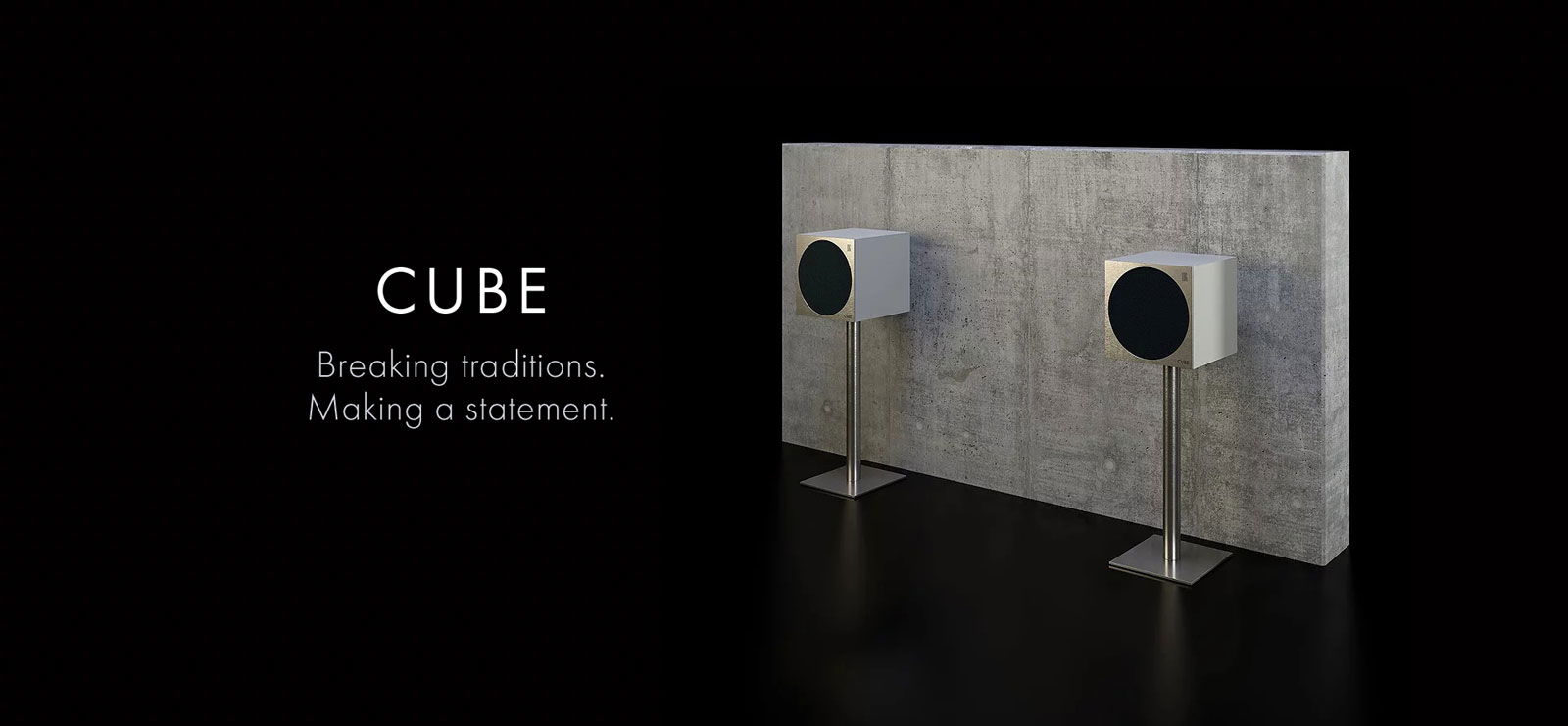

Breaking traditions. Making a statement.

The CUBE is a technical masterpiece designed specifically for ultimate high-end requirements of discerning audio enthusiasts.

Ultra-fine trebles, crystal clear mids and a powerful, dry bass response come from a 3-way speaker combination that has proven itself as top-of-the-line solution for many years. The 1" dome tweeter, the 6.5" bass-midrange speaker and the 6.5" subwoofer combine ultra-low distortion, maximum dynamics and an unprecedented level of supreme musicality. The convincing performance from a speaker of this size is simply sensational.

The CUBE I Speaker Set consists of two CUBE I speakers, two Steel Stands I, and a PROLOG digital control unit. For more info, please chat live from 11am to 7pm in the bottom left corner of the screen or leave a message.

*Clearance*

To ensure the product is in good condition, please note that this product has been thoroughly tested and assessed by ATLAS. This may mean that its original packaging has been unsealed. Warranty : 6 months.

This item is available only at ATLAS @ Harper.

Book a demo     Clearance Sale

Warranty

6 Month Warranty by ATLAS

Return Policy

All clearance items sold are non-exchangeable, non-returnable and non-refundable.

ULTIMATE HIGH-END
IN SOUND & DESIGN


The CUBE is a technical masterpiece designed specifically for ultimate high-end requirements of discerning audio enthusiasts.
Ultra-fine trebles, crystal clear mids and a powerful, dry bass response come from a 3-way speaker combination that has proven itself as top-of-the-line solution for many years. The 1" dome tweeter, the 6.5" bass-midrange speaker and the 6.5" subwoofer combine ultra-low distortion, maximum dynamics and an unprecedented level of supreme musicality. The convincing performance from a speaker of this size is simply sensational.
The design goal was to create something drastically different, but in a way that is feels familiar to everybody. Something that no one would expect from a high-end speaker, but one that is so appealing that it creates instant attraction. CUBE is designed for modern lifestyle individuals who enjoy maximum musical performance but do not insist on the classic "speaker look".
The result is a simple and timeless, yet elegant and luxurious piece of design that can be perfectly integrated into any living space without taking up a lot of space.
The CUBE impresses both in sound and in design, regardless of whether it is used as a stereo system for breathtaking music playback or as a component in a 5.1 or 7.1 home theater system.




MAIN FEATURES
  • 3-Way High-End Speaker
  • 3 x Class A/B amplifier, 220 W total
  • 30 - 22000 Hz frequency range
  • 192 kHz, 24 bit
  • Linear-phase FIR filters (crossover unit)
  • Wireless signal transmission


SPEAKER COMPOSITION

6.5" Bass/Midrange
Especially in the middle and vocal range, this bass midrange driver performs with outstanding  assertiveness and clarity.

1" Dome Tweeter
The fabric dome tweeter brings crystal clear trebles and an unparalleled feeling of lightness in the higher frequency range.

6.5" Subwoofer
For rich bass in the very low frequencies, the bass/midrange speaker is supported by 6.5" subwoofer and impresses with a tremendous precision.

DESIGN


The CUBE impresses with its simple and elegant shape, which fits perfectly into every living room. Despite the small edge length of approx. 30 cm, this 3-way system with a built-in subwoofer brings the ultimate high-end experience into every home without taking up a lot of space.

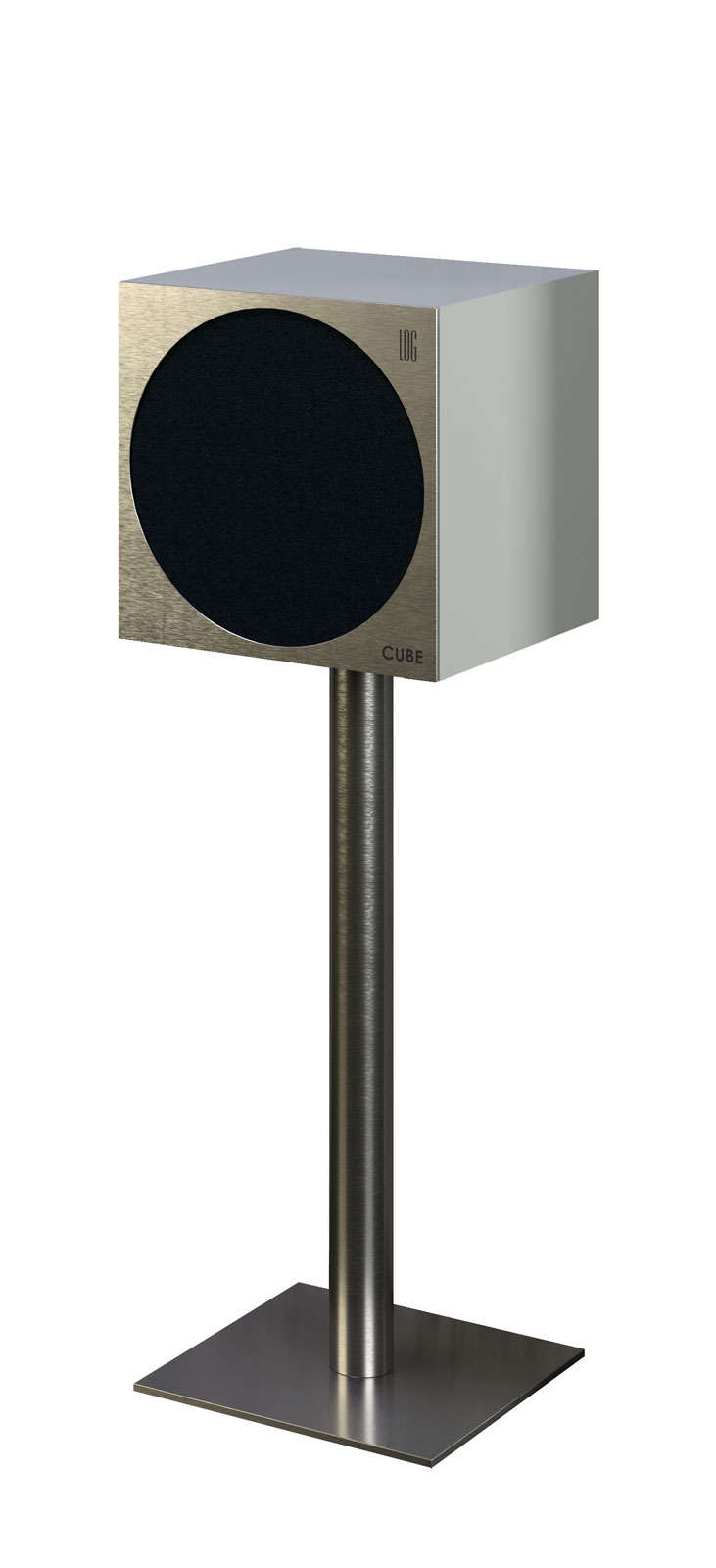

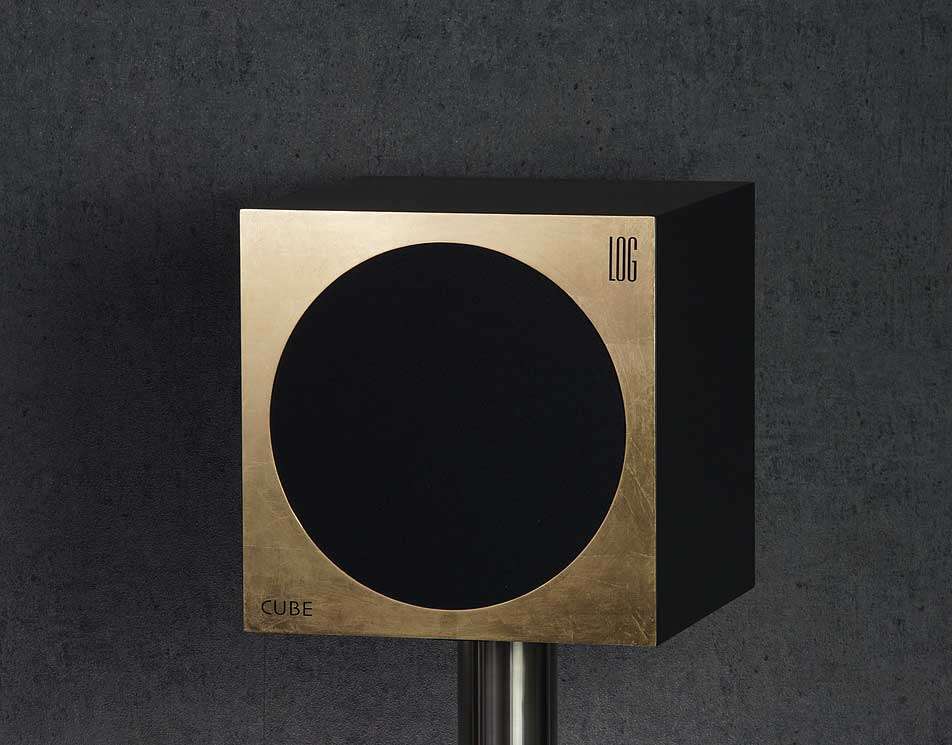

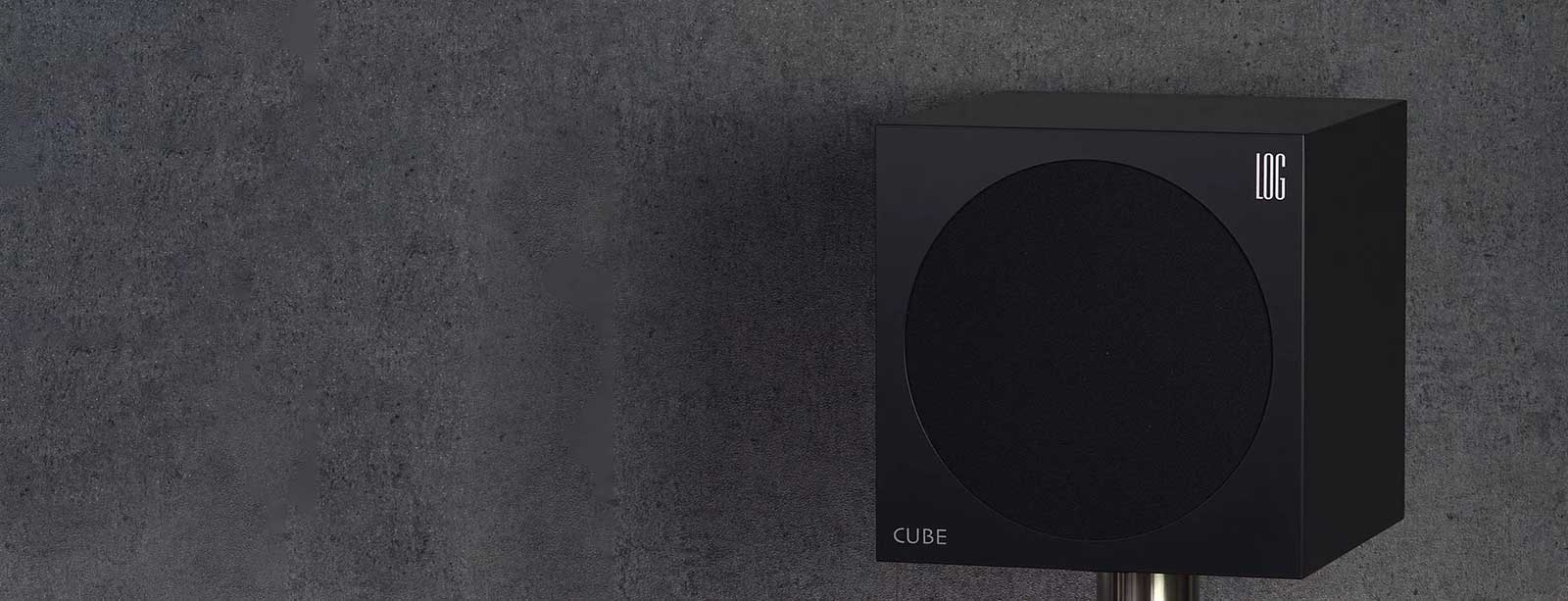

The CUBE is available in all RAL colors and also in a black piano lacquer finish. For the magnetic front cover, you can choose between silver (stainless steel), anodised black or an even more exclusive hand-made gold version. With the optional stainless steel stand, this high-quality high-end loudspeaker is ideally presented in your elegant living room.

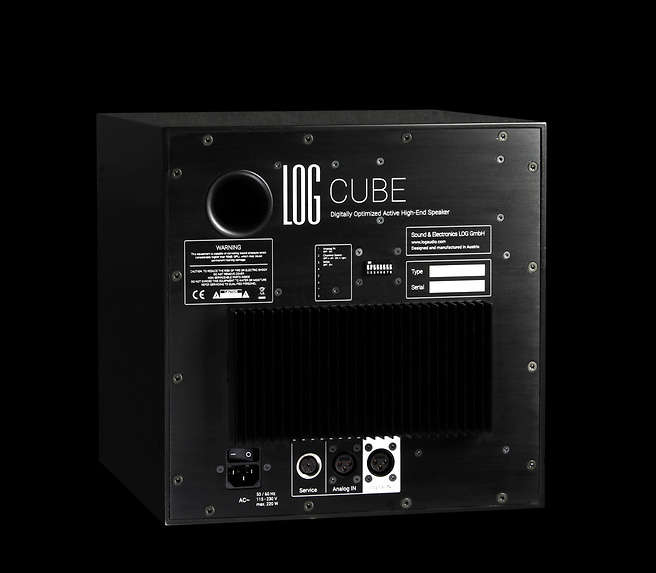

The back of the speaker – a black anodised metal plate – gives room for digital and analog inputs, the power switch and a DIP switch for different adjustment settings.
With the optional WiSA wireless audio signal transmission, you will only need on cable to power this active speaker. No audio cables are required, which guarantees maximum flexibility and – of course – a great, cable-free and independent look – and yes: the power-cable can be hidden inside the stainless steel stand.

CONNECTIVITY

Digital & Analog XLR Inputs

The CUBE offers digital and analog inputs for maximum sound reproduction quality in every setup. For the best possible sound quality, the digital input is used with a PROLOG control unit. The digital audio signal is then transferred to the speakers losslessly, either via XLR-cable or WiSA wireless technology.

PROLOG select + phono

LOG Audio Prolog digital phono stage

A completely new experience.
Now with digital phono stage.

The CUBE I speaker set comes with a PROLOG control unit. The PROLOG is designed specifically for active LOG speakers and works as a digital control unit that enables a lossless signal transfer from the source to the speakers. Its main – and most important – function is to manage the incoming signals from the digital and analog inputs at the back of the PROLOG. You can connect TVs, smart devices, network streamers, Wifi-routers and analog third party devices. The PROLOG also features Bluetooth and Wifi (Airplay, DLNA/UPnP) and is therefore open to all types of signals, making it the interface between the source (music player) and LOG speakers.

ROOM CORRECTION

Linear-phase, digital room correction
With the high-performance DSP of the LOG AudioEngine, room correction is achieved without losses or phase-shifts. All adjustments can be done inside the PROLOG control unit without touching the speaker physically.


DIP-switch settings
With DIP-switches on the back of the speaker, you can easily mute the analog input, define the speaker as left or right (when using the digital input), adjust bass and treble frequencies and change the input level of the analog input.


SPECIFICATIONS


Speakers
3-way bass-reflex: 6.5" subwoofer, 6.5" bass, 1" dome tweeter

Frequency Range
30 - 22000 Hz

Digital Input
XLR (AES/EBU, 96 kHz / 24 bit)

Analog Input
XLR (A/D-C 192 kHz / 24 bit)

Switches
Analog IN: mute / active ■ Low frequency: off / -3dB, 35 Hz ■ High frequency: off / -1dB, 10 kHz ■ Analog input level at 0 dBFS: -1dBV (-10 dBV @ -9dBFS) / +18dBu (0dBu @ -18dbFS ITU/EBU) / +24dBu (+4dBu @ -18dBFS SMPTE)
Internal Performance Features  | 192 kHz, 24 bit ■ State-of-the-art ASRC ■ Jitter minimized master clock generator

Digital Crossover Unit
Linear-phase FIR-filters



Power Amplifier
2 x 75 W, 1 x 35 W Class-A/B (max. 0,008 % THD+N @ 1 W total distortion)

Max. Power Consumption
220 W

Maximum SPL
105 dB

Input Impedance
10kΩ

Dimensions
300 x 300 x 300mm

Weight
13 kg
