Enriching lives through technology & music
Music can be soothing, exciting, exhilarating. It can move hearts and enrich lives — that's the goal Accuphase seeks to achieve through audio technology.
About Accuphase

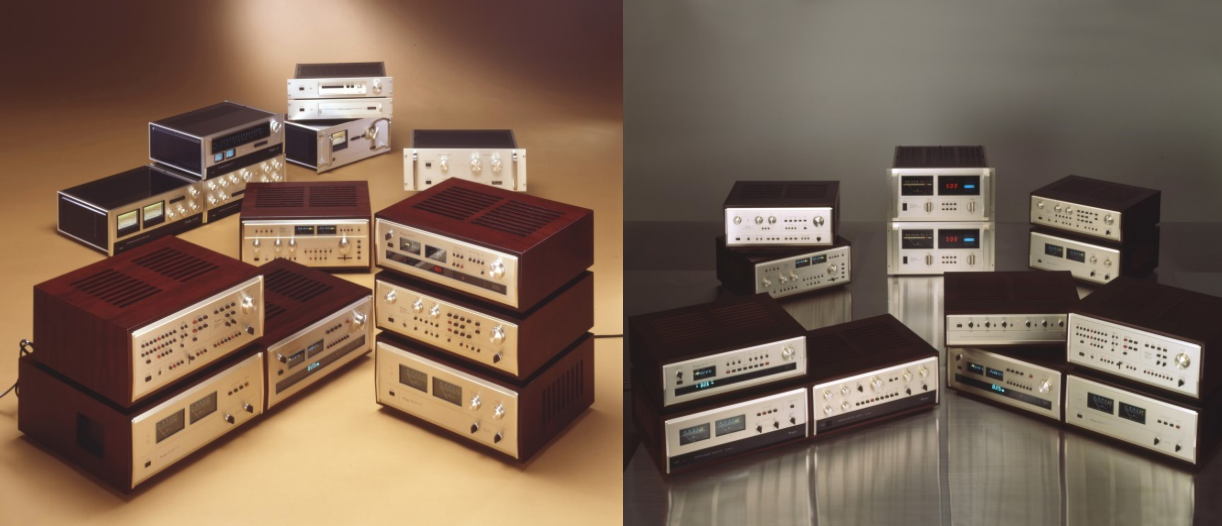

Back in 1972, Accuphase was started by brothers Nakaichi and Jiro Kasuga, then known as Kensonic, dedicated to the manufacture of audio products. They began with a small run of components, designed and manufactured in-house, that focused on impeccable sound quality and realised their personal ideals for music reproduction. Since then, Accuphase products have become legendary milestones in the history of audio and have had countless global honors bestowed upon them.
Today, every Accuphase product continues to uphold extraordinary craftsmanship with sophisticated technology built for the future. Discover the stunning musical performance and sound purity behind the iconic champagne gold facade.
Accuphase Technology
By combining dedicated research with creative thinking, the Accuphase engineering department has developed numerous proprietary technologies.
- MDSD (Multiple Double Speed DSD): Reduces noise during playback of Super Audio CD (SA-CD) sources
- AAVA (Accuphase Analog Vari-gain Amplifier): Revolutionary preamplifier topology that eliminates conventional volume controls from the signal path
- DS-DC (Direct Synthesis-double cancellation): Software-based demodulation used for FM reception
- MCS (Multiple Circuit Summing-Up): Drastic improvement of S/N radio through parallel connection of amplification circuits
- MDS (Multiple Delta Sigma): Innovative D/A converter technology resulting in significantly improved THD and S/N performance
Ordering Accuphase
How do I purchase Accuphase products?
We encourage customers to book a demo to listen to Accuphase products in-person. We have 6 products available at ATLAS@Harper for audition. These products are listed under 'Featured products' on this page.
What if the Accuphase product I want isn’t available for demo/listed?
As Accuphase’s exclusive distributor in Singapore, we can order products beyond the 6 available for demo. Contact us via live chat or our contact form to request the product you're interested in purchasing.
Book A Demo
Accuphase A-300 Mono Power Amplifier
Accuphase A-36 Power Amplifier
Accuphase A-48S Stereo Power Amplifier
Accuphase A-80 Power Amplifier
Accuphase C-2900 Precision Pre-amplifier
Power Amplifiers
Encounter music like never before with Accuphase monophonic and stereo power amplifiers. Marked by impeccable quality that stands the test of time, every model delivers effortlessly dynamic performance, expressing even the most delicate and minute details with stunning realism.

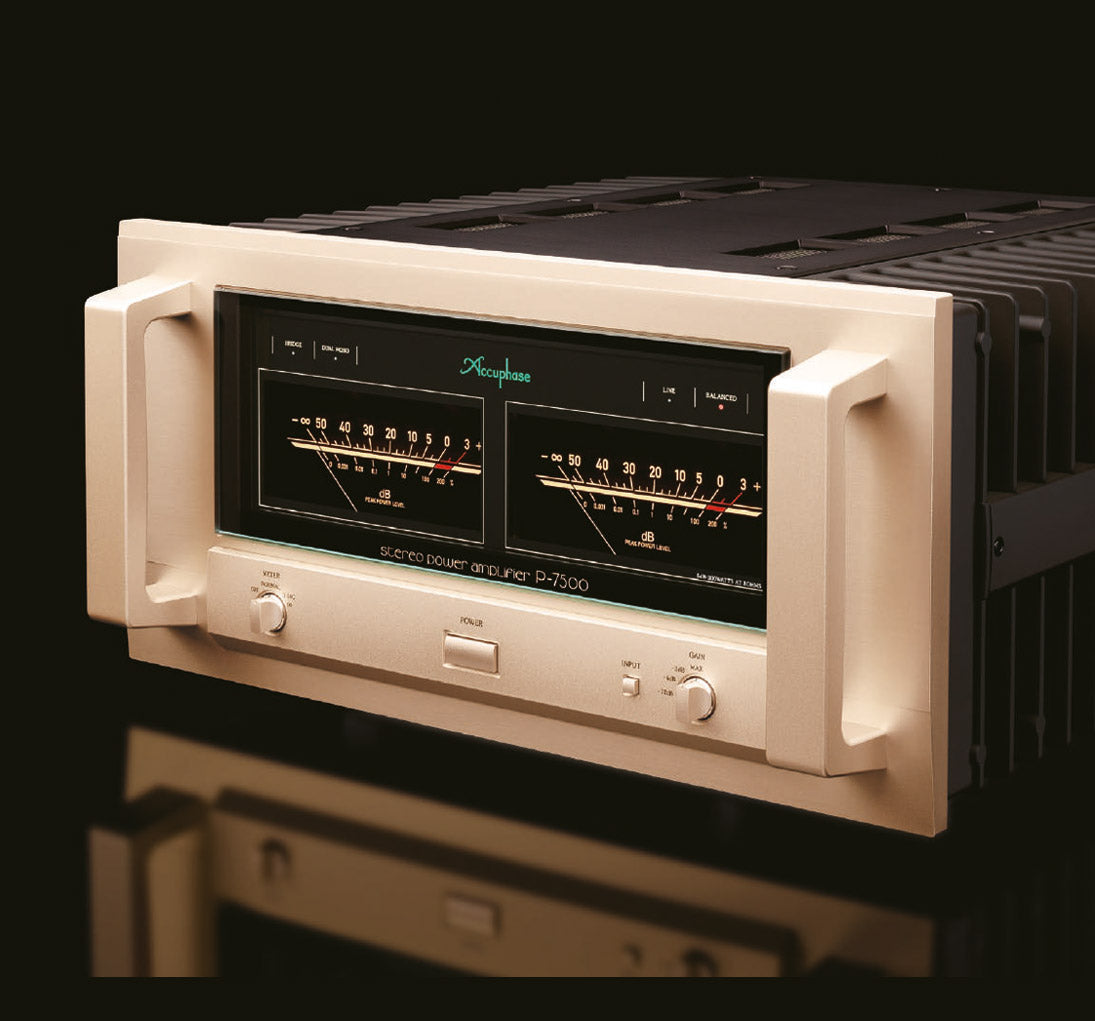

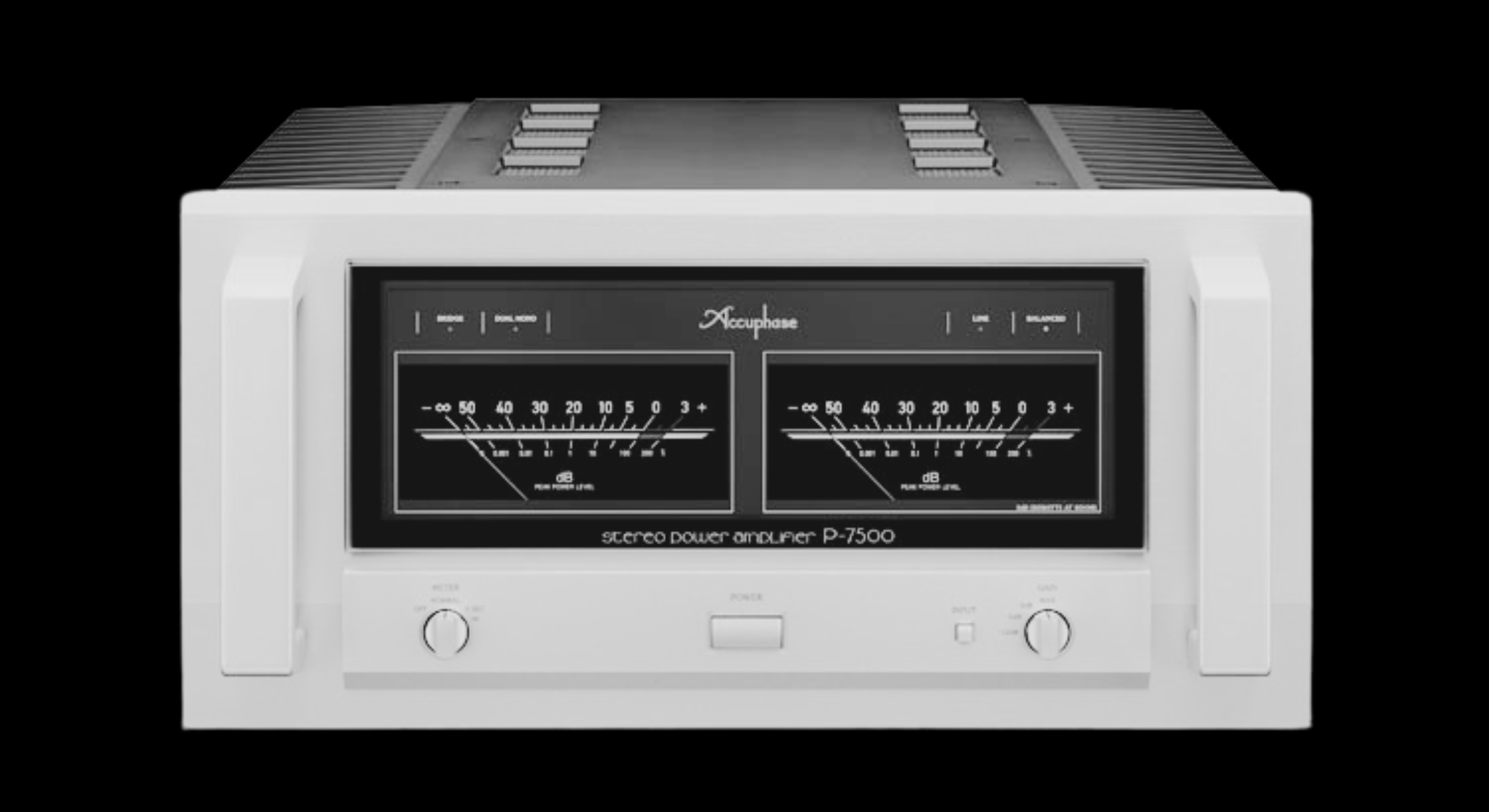

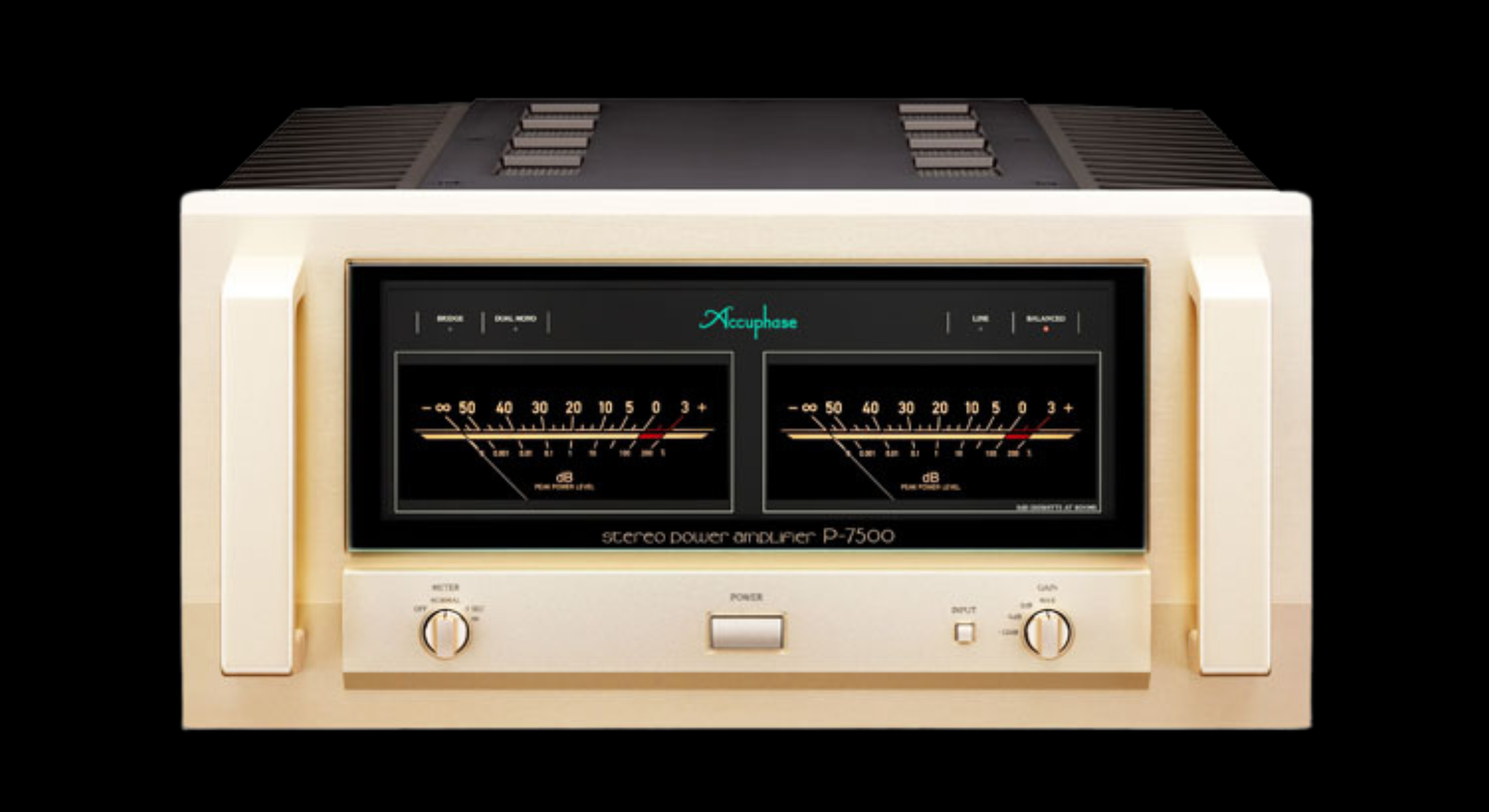

P-7500
Stereo Power Amplifier
The P-7500 is our flagship model Class AB stereo power amplifier that provides supreme driving performance. The power amplification stage uses a 10-parallel push-pull power transistor architecture, providing a rated output power of 300 W / 8 ohms that vastly exceeds that of conventional models. Boasting an impressive signal-to-noise ratio of 130 dB and a damping factor of 1,000, it can effortlessly drive massive speakers and create musical recreations overflowing with energy. The P-7500 brings out the best of any speaker, allowing you to enjoy never-before experienced soundscapes.
Features
- Large output 300 W / 8 ohms, 600 W / 4 ohms, 900 W / 2 ohms
- 10-parallel push-pull output stage power transistors
- Instrumentation amplifier principle
- Current feedback amplification circuits
- Balanced Remote Sensing
- MCS+ circuit and current feedback topology in amplification stage
- High damping factor of 1,000
- Speaker output protection
- Highly responsive large-scale power meters
- Support for bi-amping and bridged mode connection

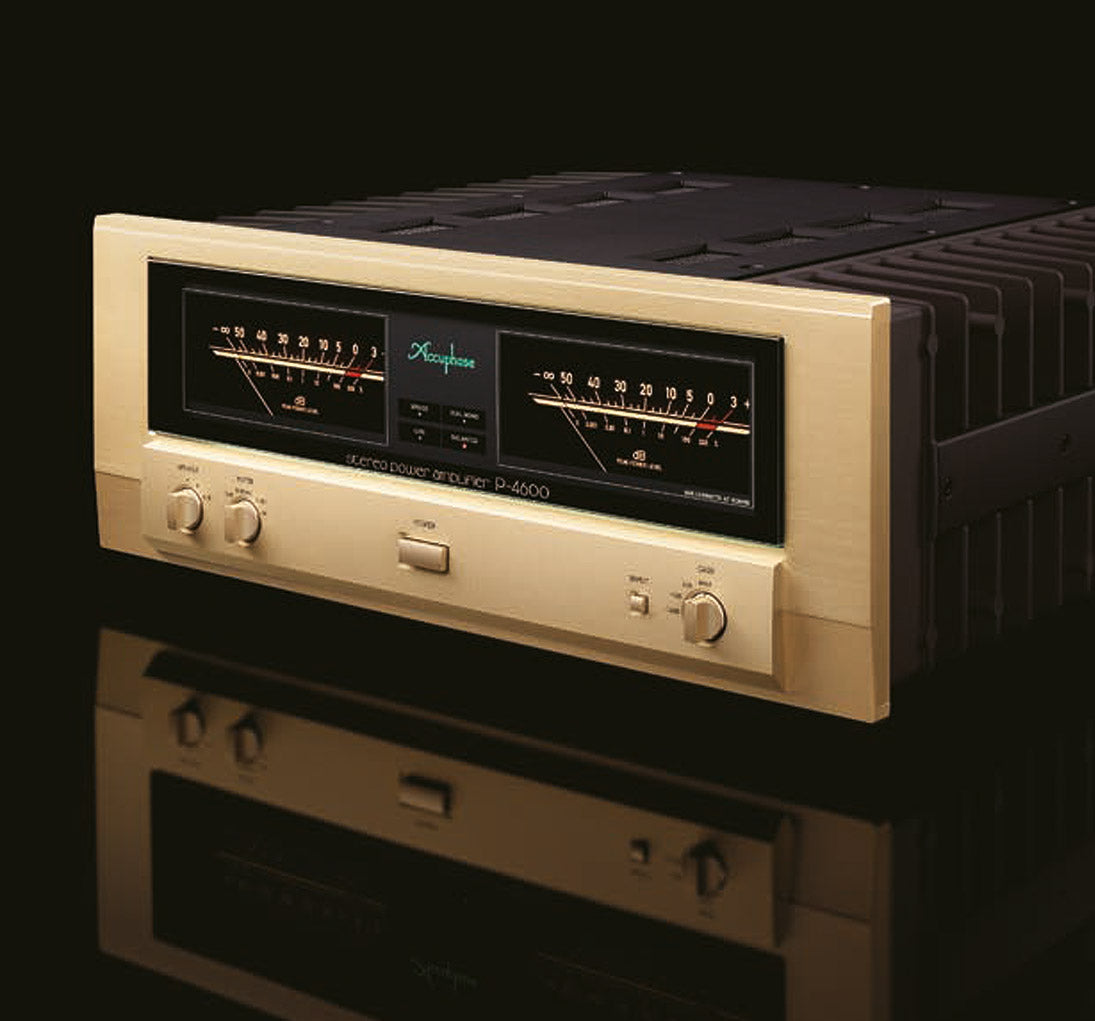

P-4600
Stereo Power Amplifier
Filled with the highest-quality technologies, the P-4600 Class AB stereo power amplifier provides supreme driving performance. The power amp stage features 6-parallel push-pull power transistors, while its rated output of 150 W into 8 ohms dwarfs conventional models. Combined with an S/N ratio of 125 dB and a damping factor of 800, it drives large speakers with ease and creates a rich, deep soundscape. The P-4600 power amplifier extracts the complete breadth of recordings, vividly recreating the rush of live performances, and lets you enjoy the very essence of musical performances.
Features
- 6-parallel push-pull power transistor output stage
- Large output 150 W / 8 ohms, 300 W / 4 ohms, 450 W / 2 ohms
- Instrumentation amplifier principle
- Current feedback amplification circuits
- Balanced remote sensing
- MCS+ circuit
- High damping factor of 800
- Speaker output protection
- Highly responsive large-scale power meters
- Support for bi-amping and bridged mode connections

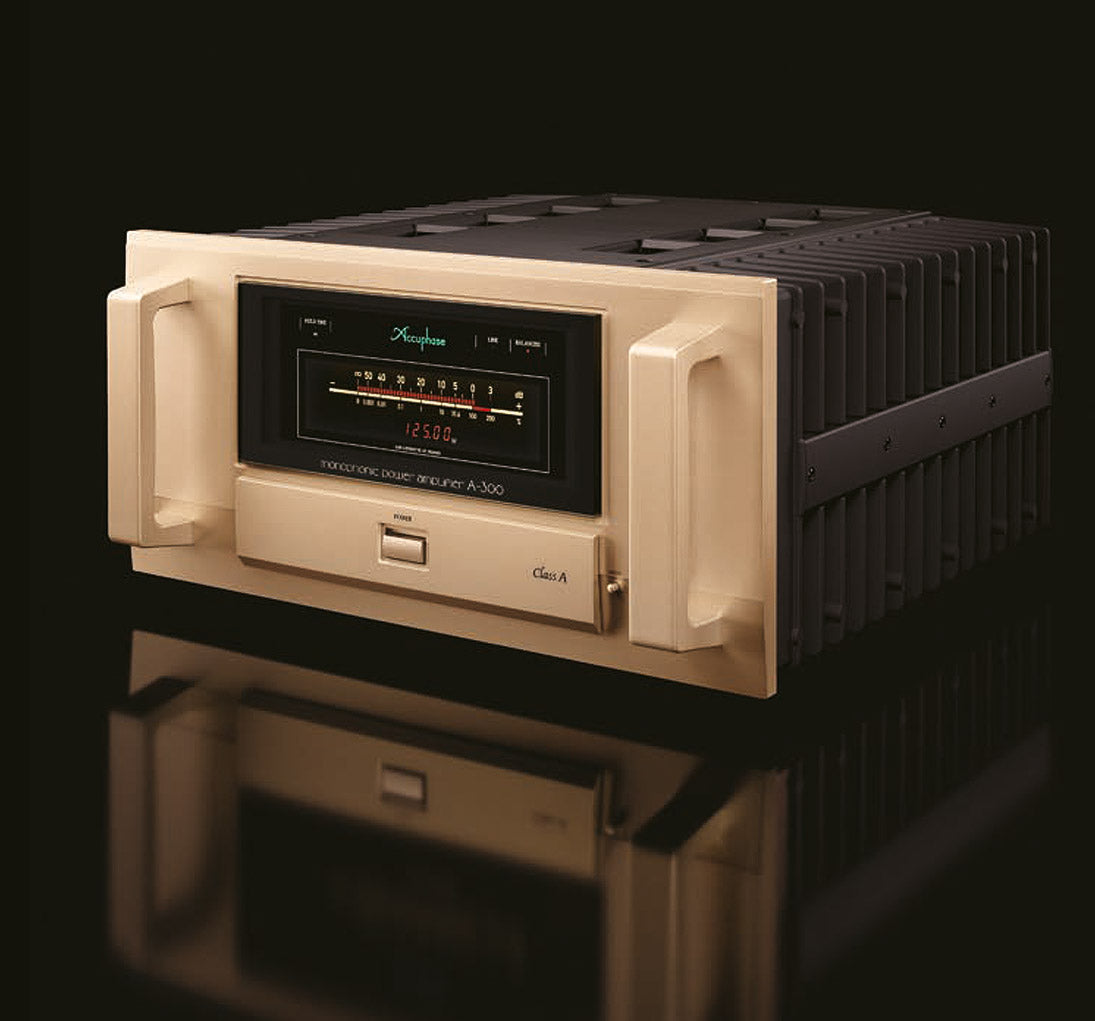

A-300
Class-A Monophonice Power Amplifier
Created to mark Accuphase's 50th anniversary, the A-300 redefines the ideal for Class A power amplifiers. 20-parallel push-pull power MOS-FETs in the output stage improves performance by 25% over conventional models with outputs of 125 W into 8 ohms, 250 W into 4 ohms, 500 W into 2 ohms, and 1,000 W into 1 ohm that set the stage for enviable constant-voltage drive. The fully discrete balanced input amplifier achieves a level of quietness that will make you forget you are using audio equipment for reproduction. The A-300’s unmatched expressiveness lets you enjoy the most exquisite pieces from the world’s greatest composers.
Features
- Class A driven output stage with 20-parallel push-pull power MOS-FETs
- Large linear output 125 W / 8 ohms, 250 W / 4 ohms, 500 W / 2 ohms, 1,000 W / 1 ohm
- Instrumentation amplifier principle
- Current feedback amplification circuits
- Balanced Remote Sensing
- Double MCS+ circuit
- High damping factor of 1,000
- Speaker output protection
- Highly reliable MOS-FET switches with no mechanical connections
- Signal input section with a fully discrete configuration for low noise
- Highly responsive large-scale bar graph power meter
- Connecting two pairs of A-300 supports bi-amping and bridged mode connection
- 4-step gain control
- High capacity 100,000 μF filtering capacitors
- Large speaker terminals connected directly to protection circuitry
- High-carbon cast iron insulator feet with superior damping characteristics
- Power amplification section on circuit boards using glass cloth fluorocarbon resin
- Aluminum hairline finish top plate

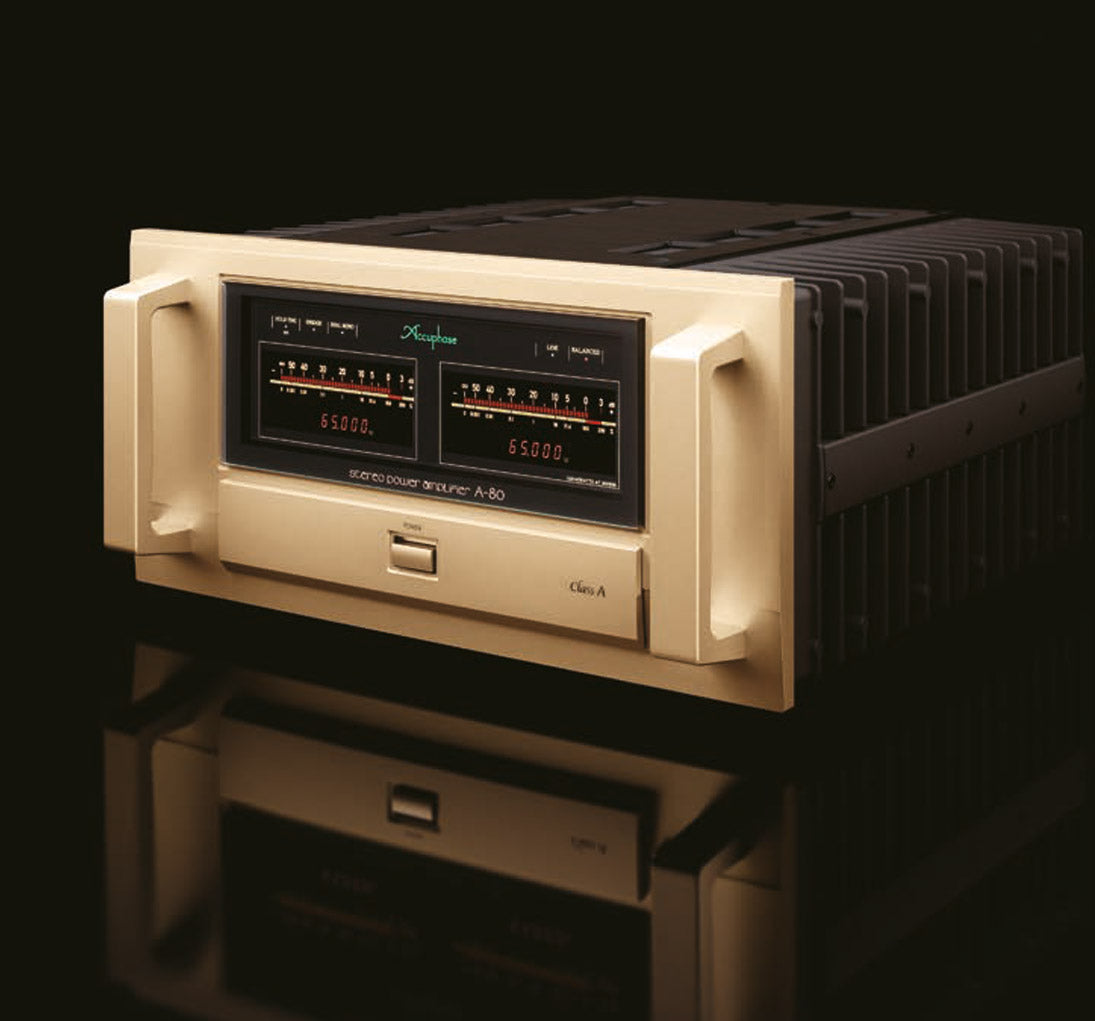

A-80
Class-A 65W/ch Stereo Power Amplifier
The A-80 is a Class A power amplifier developed as a stereo amplifier version of our 50th anniversary A-300 model. Optimizing the 10-parallel push-pull power MOS-FETs in the output stage produces an output power of 65 W into 8 ohms, 130 W into 4 ohms, 260 W into 2 ohms, and 520 W into 1 ohm. Rigorous investment into new, cutting-edge noise reduction technologies has achieved a sense of presence and minute expression that rival live performances. The A-80 power amplifier perfectly fuses modern technology with the wealth of knowledge Accuphase has amassed in its pursuit of perfect sonic expression.
Features
- 65 W into 8 ohms, 130 W into 4 ohms, 260 W into 2 ohms,and 520 W into 1 ohm large linear output power
- Class A driven 10-parallel push-pull MOS-FET output stage
- Instrumentation amplifier
- Signal input section with a fully discrete configuration for low noise
- Current feedback amplification topology
- Balanced remote sensing
- MCS+ circuitry
- High damping factor of 1,000
- Large, high-efficiency toroidal transformer
- High capacity 120,000 μF filtering capacitors
- Power amplification section on circuit boards using glass cloth fluorocarbon resin
- Hold time switching function that changes the meter peak display time
- 4-step gain control
- Bi-amping connection and bridged connection switching
- Large speaker terminals connected directly to protection circuitry
- Speaker output protection circuit guards against short-circuiting
- Highly reliable MOS-FET switches with no mechanical
- Aluminum hairline finish top plate
- High-carbon cast iron insulator feet with superior damping characteristics

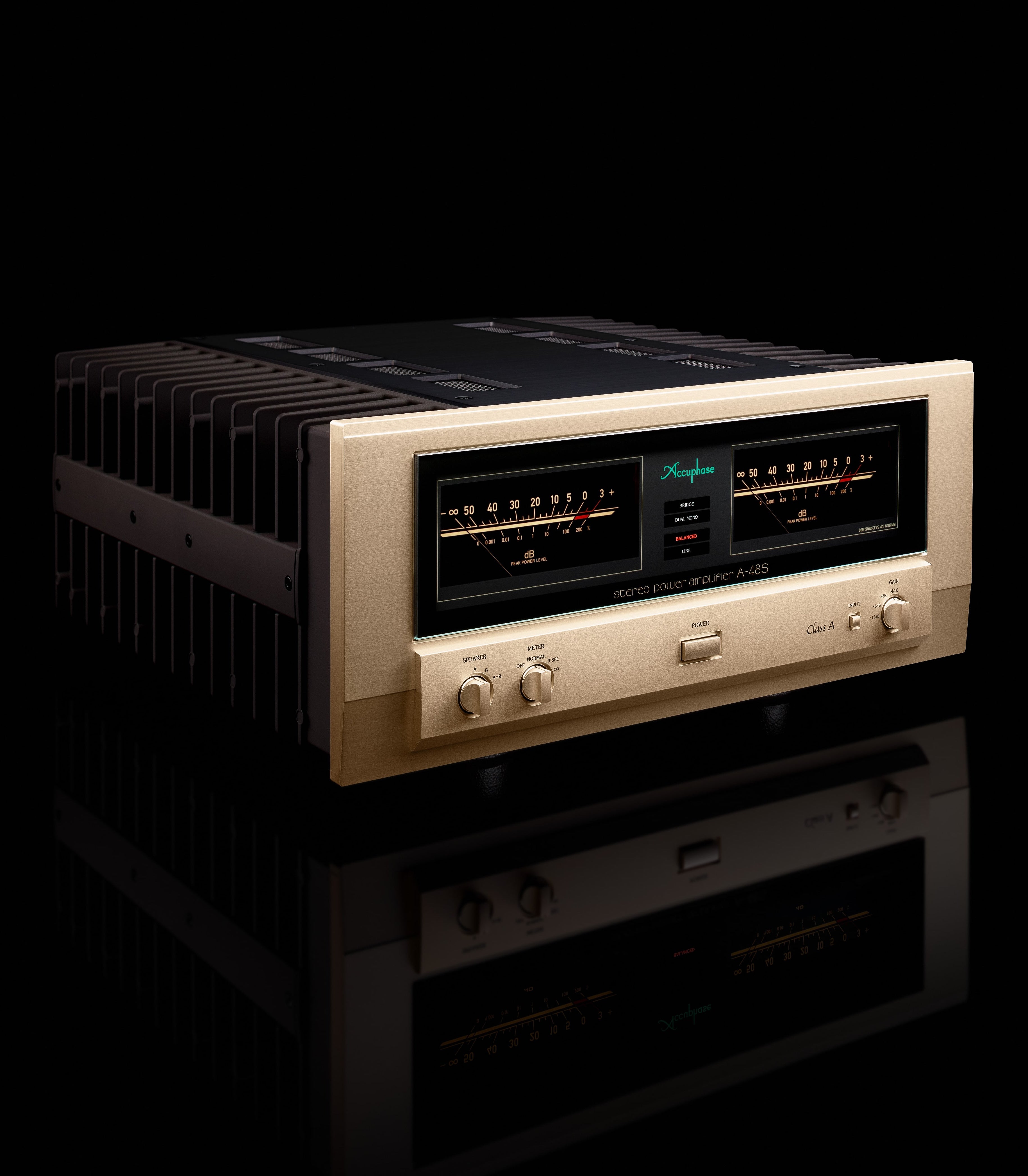

A-48
Class-A 45W/ch Stereo Power Amplifier
Featuring a six-fold parallel push-pull architecture with power MOS-FETs, as well as ideal gain allocation realized with discrete semiconductors in an instrumentation amplifier configuration, the A-48 harnesses a wealth of advanced technology. Its outstanding performance is exemplified by a signal/noise ratio of 117 dB, output of 360 watts into 1 ohm (music signals), and a damping factor of 800. The newly designed output protection circuit can detect any short-circuiting of the speaker terminals, for complete peace of mind. This power amplifier is the ultimate instrument for immersive music appreciation on the highest level.
Features
- Power MOS-FETs in 6-parallel push-pull configuration
- Linear output characteristics over entire load impedance range
- Strong power supply with massive toroidal transformer and large 60,000 μF filtering capacitors
- Instrumentation amplifier principle
- High-gain signal input section in discrete configuration
- Dedicated power supply for signal input section
- Polarity switching for balanced input connectors
- MCS+ circuit topologys
- Current feedback principle in amplification circuitry
- Protection circuitry using MOS-FET switches
- High damping factor of 800
- Speaker output protection circuit guards against short-circuiting
- Two sets of large speaker terminals
- 4-step gain control
- Support for bi-amping and bridged mode
- Aluminum top plate with hairline finish
Preamplifiers
The essence of trailblazing technology meets the beauty of tradition in our range of Accuphase preamplifiers. Accuphase's distinctive design philosophy has been honed to perfection, marrying true craftsmanship and sophisticated engineering in its iconic champagne gold package.
C-47
Stereo Phono Amplifier
The C-47 is the first phono amplifier of this series which realizes a fully balanced configuration from input to output. The resulting product not only is highly impervious to external noise, it also features a dedicated head amplifier optimized for the characteristics of MC and MM phono cartridges, and a high-accuracy equalizer amplifier, thereby ensuring precise equalization with a minimum of noise. A set of newly added dedicated balanced MC phono inputs enables balanced connection to the analog record player. By bringing out the full performance potential of each phono cartridge, the C-47 delivers a rich and deeply satisfying musical experience.
Features
- Low-noise fully balanced configuration
- One dedicated balanced MC phono input and three sets of regular phono inputs
- Separate settings memory for each input position
- Balanced and line level output connectors
- Balanced output polarity selector
- Full mono construction
- Separate toroidal power transformers for left and right channel
- Low-noise regulated power supply circuitry unaffected by load fluctuations
- High-accuracy phono equalizer with RIAA deviation of only ±0.3 dB
- Load impedance settings for six MC and three MM phono cartridge types
- 7-segment LED indicator shows load impedance
- Gain selector for low-output phono cartridges
- Built-in subsonic filter
- Disc equalizer assembly using glass cloth fluorocarbon resin PCBs with low dielectric constant and low losses
- Gold-plated printed circuit boards
- Aluminum top plate with hairline finish
- Elegant side panels with natural wood grain finish

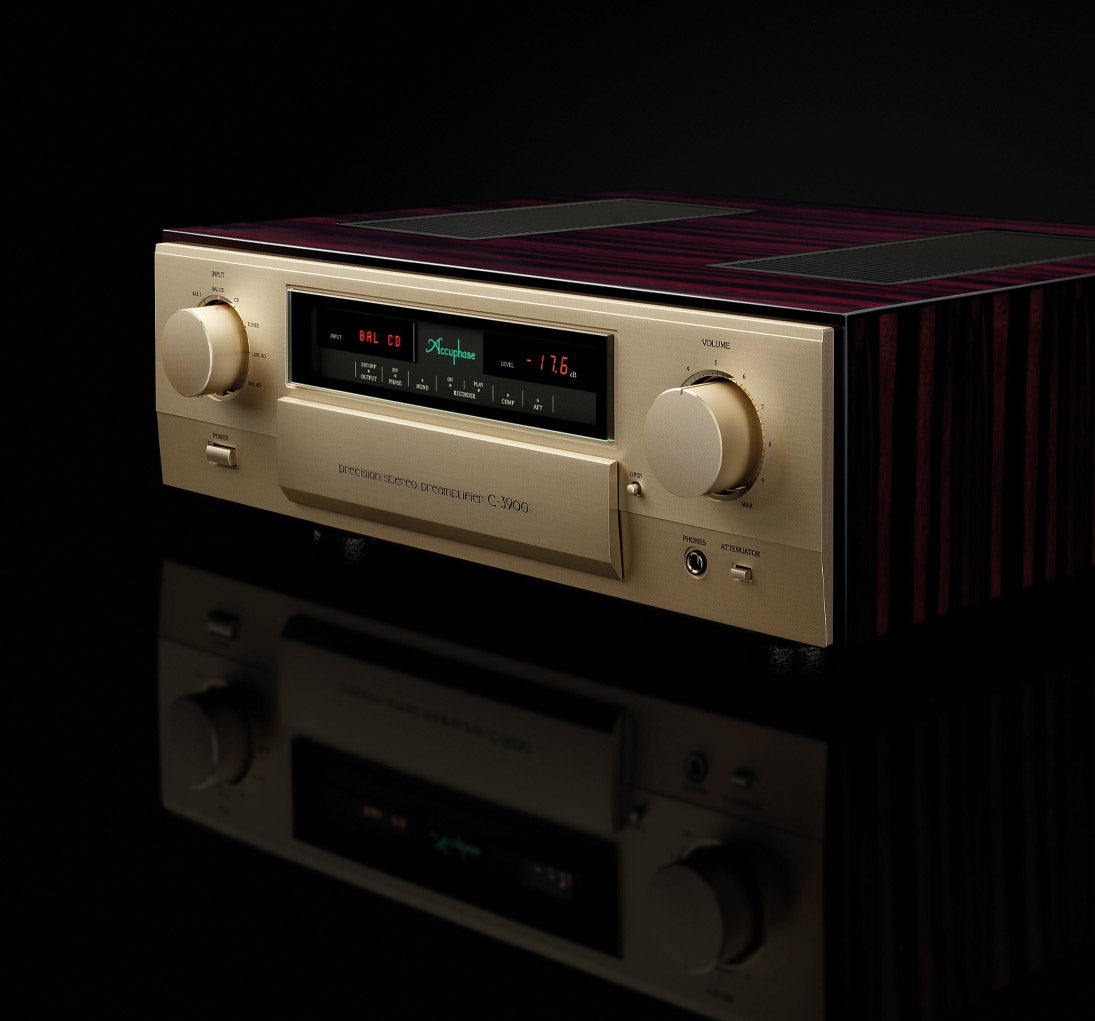

C-3900
Precision Stereo Preamplifier
To celebrate the 50th anniversary of Accuphase's founding, the development of a new flagship model to incorporate the entire wealth of the company's experience was begun. Now, after five years, the work is complete. The C-3900 represents an uncompromising harmony of technology and sensibility, boasting ultimate performance and sound quality that ushers in a new era of the preamplifier.
The Dual Balanced AAVA design with two balanced AAVA circuits delivers sonic excellence that is transparence itself. Volume adjustment is realized while retaining all the vibrant energy and richness of detail that is the life breath of an artistic performance. The supple elegance of music as reproduced by the top-of-the-line C-3900 is a moving experience that reflects the impressive depth of Accuphase know-how.
Features
- Dual Balanced AAVA volume control
- High-gain discrete current feedback type input amplifier
- ANCC technology minimizes noise and distortion
- Newly developed volume sensor construction
- Separate toroidal power transformers for left and right
- Newly developed filtering capacitors
- Separate unit amplifiers for left and right
- Printed circuit boards using glass cloth fluorocarbon resin
- Wood cabinet with natural grain finish
- High-performance headphone amplifier
C-2900
Precision Stereo Control Centre
For more than half a century, Accuphase has continued its relentless pursuit of creating the ideal volume control circuitry. The C-2300 preamplifier utilizes Balanced AAVA – the successor of the AAVA system – to control volume without sacrificing vibrancy in the source sound. A newly added 4-band tone control enables fine adjustments to sound tone. Experience the sonic depth from the combined sound quality and superior features the C-2300 provides.
Features
- Balanced AAVA volume control
- 4-band tone control
- Quiet and smooth volume sensor construction
- Ample inputs: 5 Line and 2 Balanced
- Independent power supplies and unit amplifiers for left and right
- Phase setting memory for each input
- Highly reliable logic-controlled signal switching relays
- High-quality headphone amplifier
- Additional option boards support digital signals and analog records

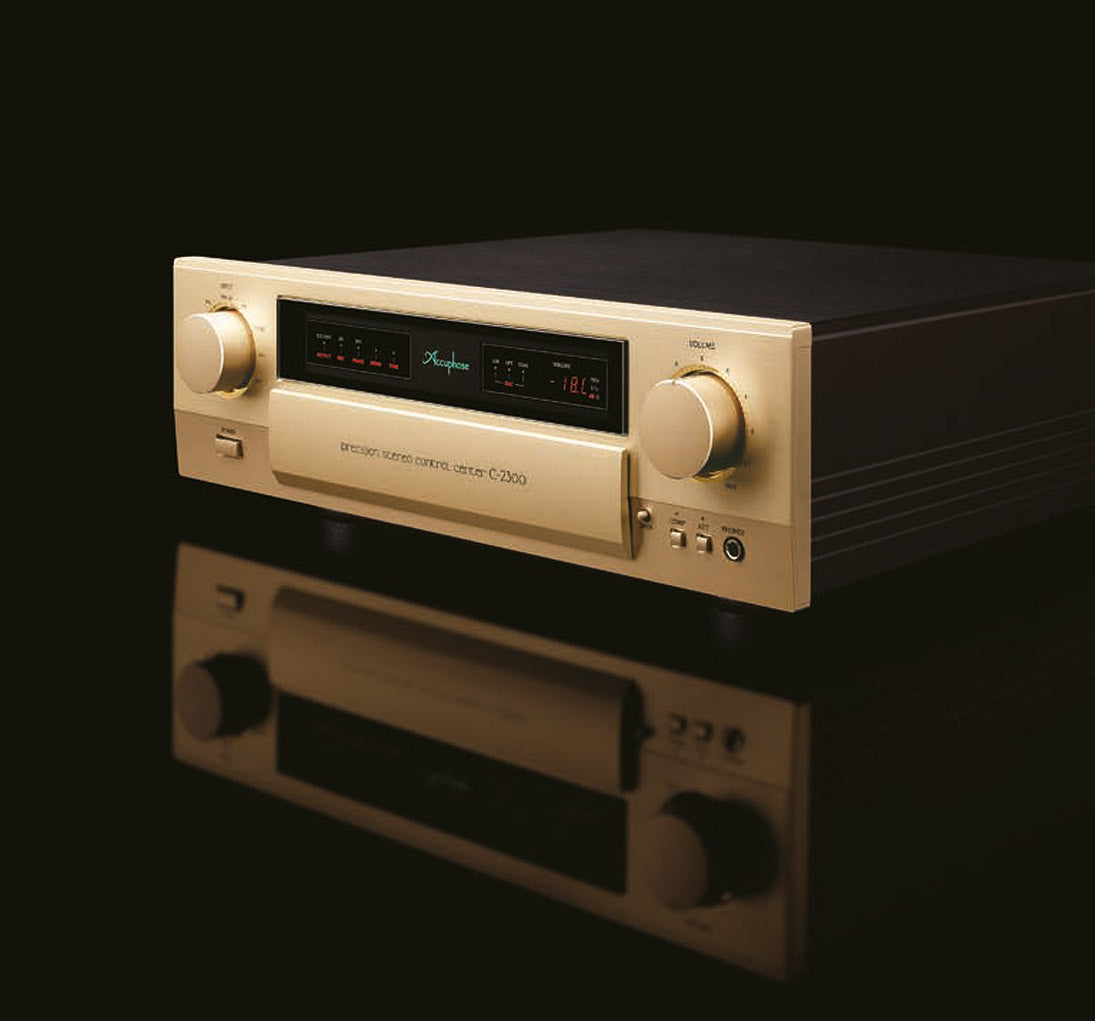

C-2300
Precision Stereo Control Centre
For more than half a century, Accuphase has continued its relentless pursuit of creating the ideal volume control circuitry. The C-2300 preamplifier utilizes Balanced AAVA – the successor of the AAVA system – to control volume without sacrificing vibrancy in the source sound. A newly added 4-band tone control enables fine adjustments to sound tone. Experience the sonic depth from the combined sound quality and superior features the C-2300 provides.
Features
- Balanced AAVA volume control
- 4-band tone control
- Quiet and smooth volume sensor construction
- Ample inputs: 5 Line and 2 Balanced
- Independent power supplies and unit amplifiers for left and right
- Phase setting memory for each input
- Highly reliable logic-controlled signal switching relays
- High-quality headphone amplifier
- Additional option boards support digital signals and analog records
Integrated Amplifiers
It's more than just about great sound. In an epoch-defining fusion of skill and technology, Accuphase delivers peerless acoustic excellence and instills the dynamic performance of separate components into its range of integrated amplifiers.

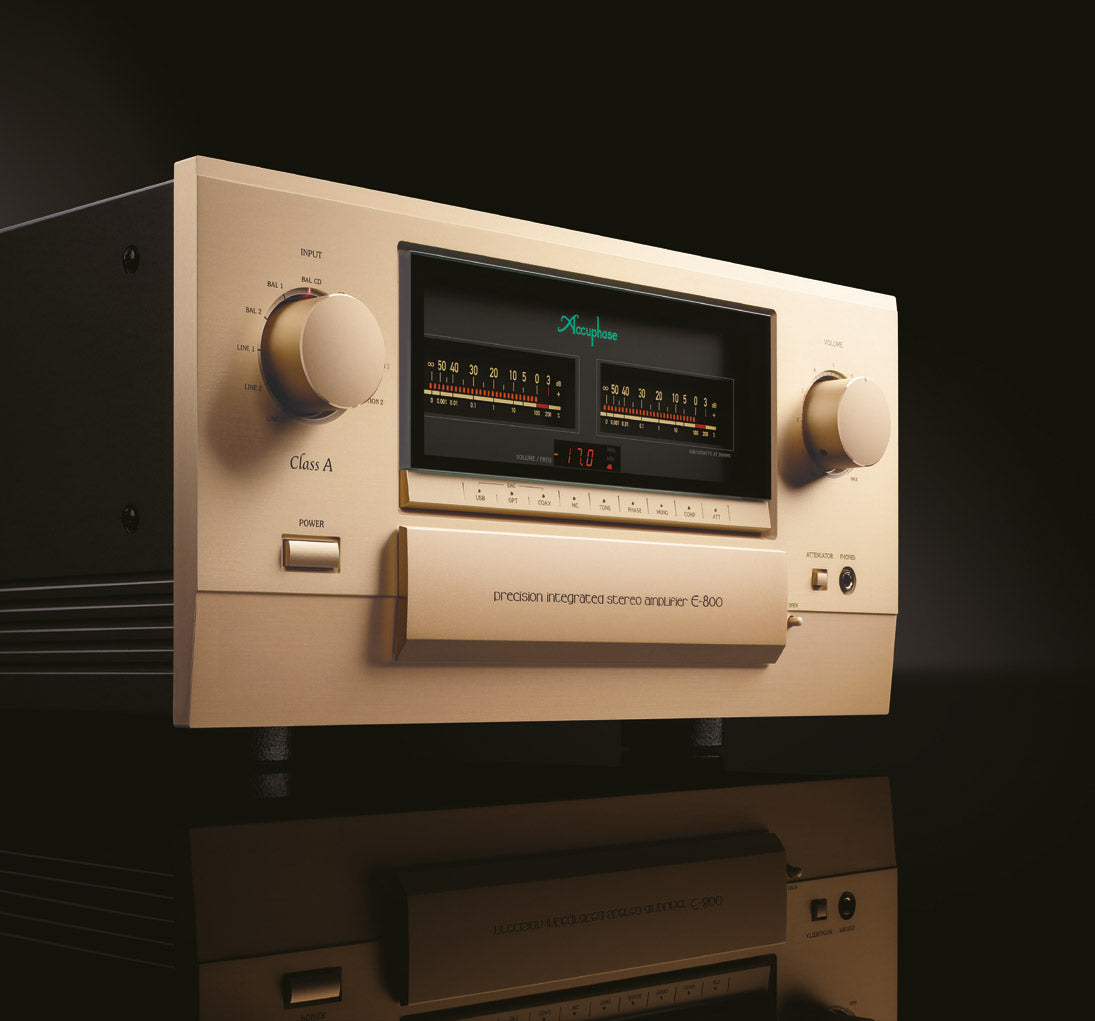

E-800
Class-A Precision Integrated Stereo Amplifier
The E-800 is positioned above the E-650 as the new flagship model in the integrated amplifier lineup of Accuphase. The preamplifier section features the impeccable Balanced AAVA type volume control, while the power amplifier section is configured as an instrumentation amplifier using a six-fold parallel push-pull configuration of power MOS-FETs driven in pure Class A. The resulting quality is on a par with high-class separate type amplifiers. Operating as a simple and smart system, the E-800 realizes acoustic excellence that reaches to the very heart of the music.

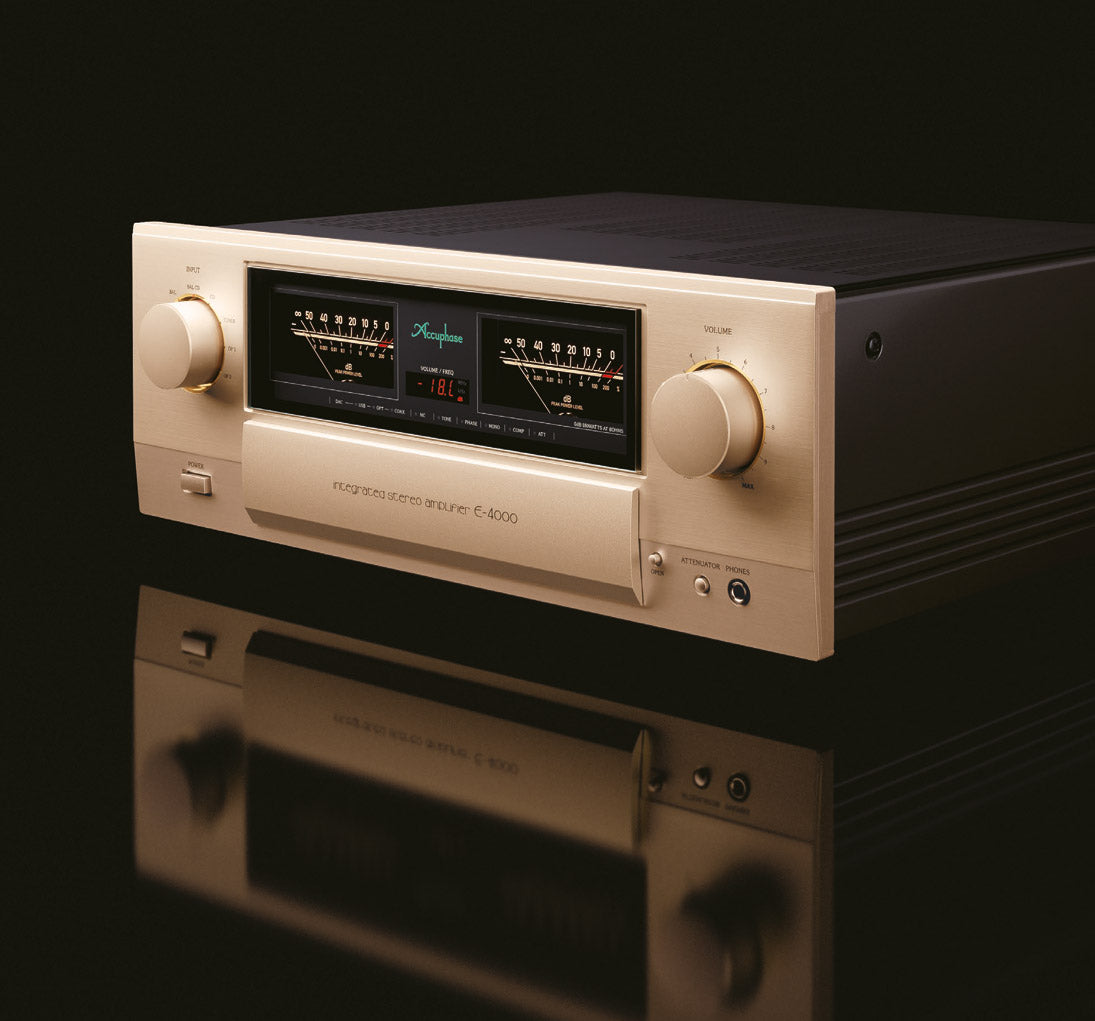

E-4000
180W/ch Integrated Stereo Amplifier
The E-4000 integrated amplifier has emerged from separate amplifier technologies. The preamplifier section features AAVA using ANCC to allow for volume adjustments that maintain high levels of vibrancy. The power amp section employs balanced transmission utilizing the instrumentation amplifier principle to drive noise suppression to its limit. The E-4000 is equipped with a four-fold parallel push-pull configuration of power transistors driven in Class AB in the output stage to extract every last ounce of potential from the speakers and create soundscapes filled with subtlety.
Features
- Revolutionary AAVA volume control
- Four-fold parallel push-pull configuration of power transistors driven in Class AB
- High power output of 180 watts into 8 ohms / 260 watts into 4 ohms
- Power amplification stage configured as instrumentation amplifier
- High damping factor of 800
- Strong power supply with massive high-efficiency toroidal transformer
- High-voltage, large filtering capacitors
- Protection circuitry using MOS-FET switches

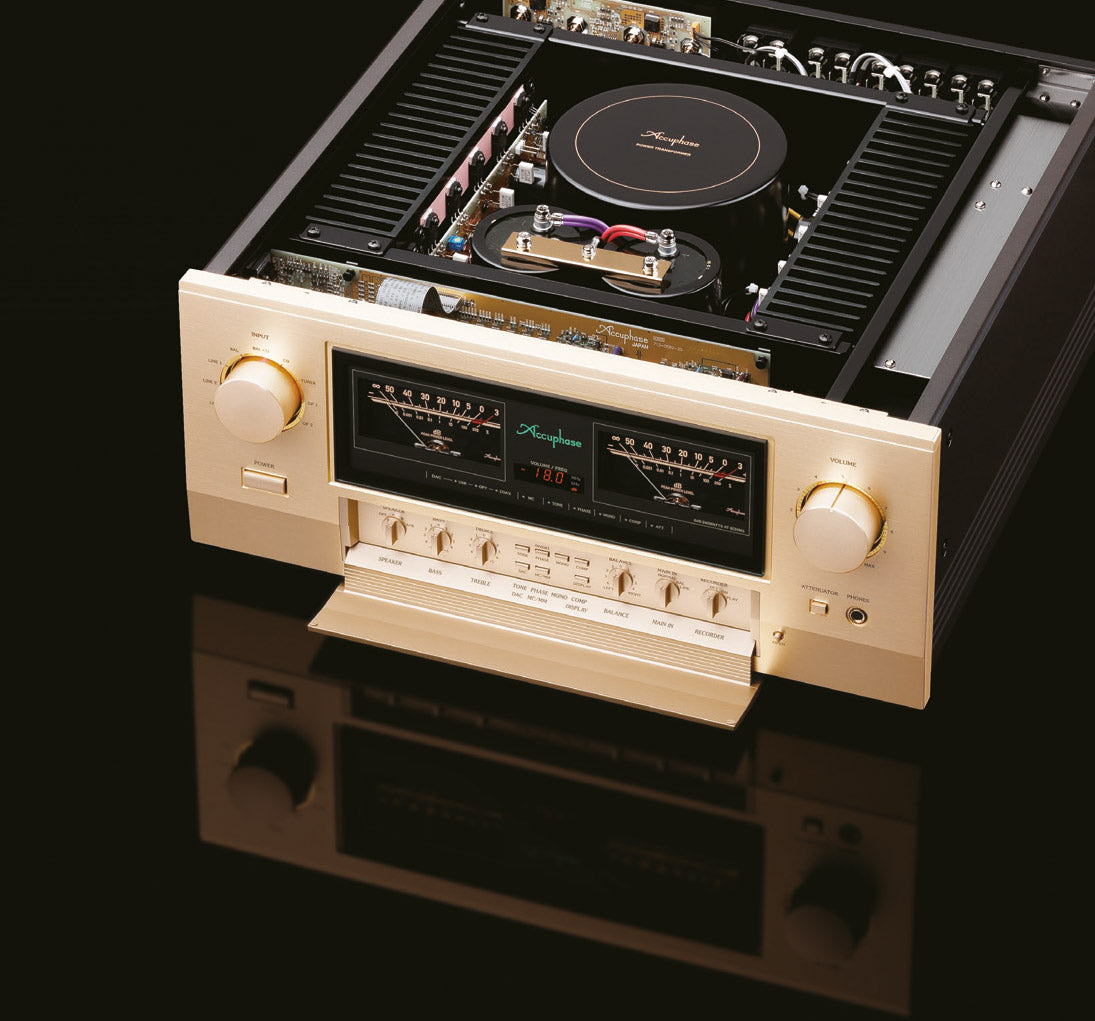

E-5000
Precision Integrated Stereo Amplifier
The E-5000 is the flagship high-power Class AB integrated amplifier developed to mark Accuphase’s 50-year anniversary. The preamplifier section features our superior Balanced AAVA volume control, while the power amplifier section includes an instrumentation amp and power transistors in a five-fold push-pull arrangement driven in Class AB. These circuits create a balanced circuit from input to output. With its precisely balanced circuits and solidly built output stage, the E-5000 integrated amplifier presents every piece of music in exquisite detail.
Features
- Balanced AAVA volume control
- Highly reliable logic-control signal switching relays
- Ample input connectors (Five line level and two balanced)
- Line level input and output connectors for a recorder
- Individual phase setting for each input
- Stereo signal can be switched to monophonic operation
- Left / right balance control through Balanced AAVA
- Volume attenuator that can instantly reduce sound as low as –20 dB
- Loudness compensator to adjust audible sonic balance
- Tone controls using summing active filters
- Power amplification stage employs instrumentation amplifier principle
- Current feedback amplification circuit topology assures excellent phase characteristics in high range
- Speaker output protection circuit guards against short-circuiting
- Protection circuitry using low impedance, highly reliable MOS-FET switches
- Two massive speaker connectors for output switching and simultaneous output
- Line level and balanced outputs at the preamplifier section support bi-amping connection
- Line level and balanced inputs at the power amp section allow use as a power amplifier
- Dedicated, high-quality headphone amplifier constructed with discrete components
- Two expansion slots for option boards
E-650
Class-A Precision Integrated Stereo Amplifier
Innovative engineering and top-grade parts and materials come together in this product featuring the superb Balanced AAVA type volume control and a triple parallel arrangement of power MOS-FETs in the output stage. The power amplifier section employs the latest instrumentation amplifier configuration for balanced signal transmission, resulting in an integrated amplifier with fully balanced configuration from the inputs right through to the output. The massive power supply and low-impedance output circuitry deliver 150 watts per channel (into 1 ohm, with music signal) and a damping factor of 800.
Features
- First integrated amplifier featuring Balanced AAVA volume control
- Pure Class A operation (30 watts into 8 ohms)
- Guaranteed linear power: 120 watts into 2 ohms, 60 watts into 4 ohms, 30 watts into 8 ohms
- Output stage with power MOS-FETs in triple parallel push-pull configuration
- Instrumentation amplifier principle in power amplifier for fully balanced signal transmission, complemented by MCS+ topology and current feedback amplification circuitry
- Strong power supply with massive high-efficiency transformer and large filtering capacitors
- Preamplifier and power amplifier sections can be used separately
- Numeric indication of volume level
E-380
120W/ch Integrated Stereo Amplifier
The E-380 realizes a 20% increase in rated output power thanks to a reinforced power amplification stage and power supply. The further evolved AAVA volume control system allows music enjoyment at any level without even the slightest degradation of signal quality. The power amplifier section utilizes the instrumentation amplifier principle to achieve outstanding S/N ratio. Low impedance design of the output circuitry results in a damping factor of 500, ensuring that the potential of every speaker can be brought out to the fullest. Enjoy a musical performance of amazing transparency and dynamism.
Features
- AAVA volume control
- Power amplification stage with bipolar transistors in double parallel push-pull configuration
- Rated for 180 watts into 4 ohms and 120 watts into 8 ohms
- High damping factor of 500
- Power amplification stage configured as instrumentation amplifier
- Current feedback amplification topology in power amplification stage
- Logic-control relays for shortest signal paths
- Strong power supply with massive high-efficiency transformer and large filtering capacitors
- Protection circuitry using MOS-FET switches
E-280
90W/ch Integrated Stereo Amplifier
The AAVA volume control builds upon the knowledge of high-end equipment to control volume without loss of information. The power amplification section utilizes the instrumentation amplifier principle to create an ideal speaker driver. The low impedance design of the output circuitry brings out the full potential of every speaker. Two option boards can be added for improved expandability. The E-280 sound performance will defy the imagination.
Features
- AAVA volume control
- Power amplification stage with bipolar transistors in double parallel push-pull configuration
- Rated for 120 watts into 4 ohms and 90 watts into 8 ohms
- High damping factor of 500
- Power amplification stage configured as instrumentation amplifier
- Current feedback amplification topology in power amplification stage
- Logic-control relays for shortest signal paths
- Strong power supply with massive high-efficiency transformer and large filtering capacitors
- Protection circuitry using MOS-FET switches
- Two rear panel expansion slots allow use of option boards
Digital Source
The future is here. The new digital processors from Accuphase are built with high rigidity and precision to deliver a digital signal of unsurpassed purity, bringing you one step closer to your favourite music.

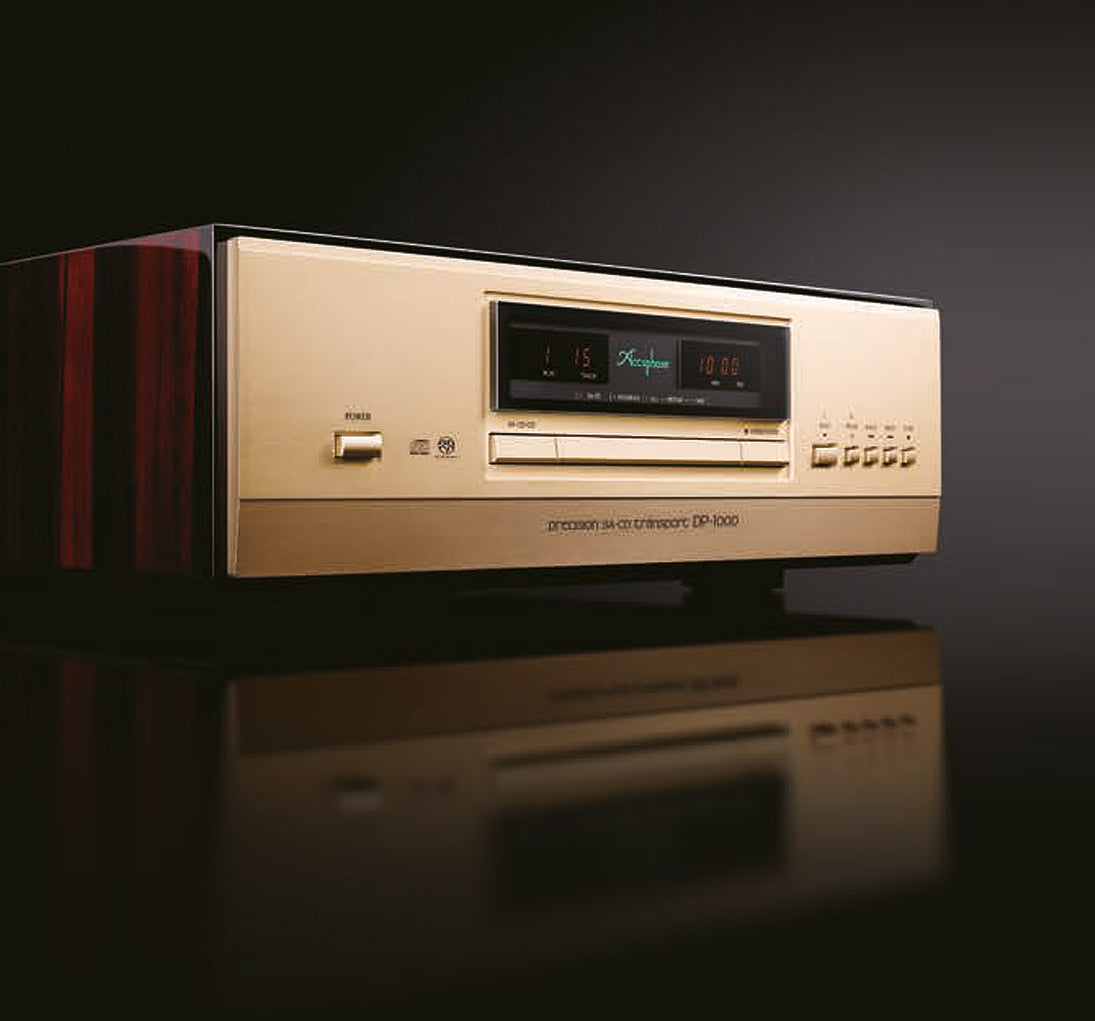

DP-1000
Precision SA-CD Transport
The DP-1000 is the culmination of Accuphase’s 50-year pursuit of creating the ideal transporter. This high-rigidity, high-precision drive is equipped with a silent and elegant disc loading mechanism. The outer rotor brushless DC motor smoothly rotates the disc, while the newly developed dampers protect the pickup from vibrations. Incorporating a number of technological improvements like a low center of gravity and fortified frame alongside features like programmable playlists, the DP-1000 is the ideal transport to quietly and accurately read data.
Features
- High-rigidity, high-precision aluminum machined SA-CD/CD drive
- Low-noise power supply circuits and separate toroidal transformers for mechanical system and signal processing
- Programmable playlists so that you can enjoy your music in the order you want
- Accuphase voicing equalizer and digital connections
- Digital outputs (HS-LINK / COAXIAL)
- Low placement of the SA-CD/CD player for a low center of gravity
- “Power-on play” that automatically starts playback with a timer (sold separately)
- HS-LINK Ver. 1 / Ver. 2 switching
- Data disc playback (including DSD discs)
- Natural grain wood case with a mirror finish crafted by artisans using carefully selected virgin wood
- 12 mm thick machined aluminum bottom plate
- Advanced high-carbon cast iron insulators
- Supplied with HS-LINK cable AHDL-15

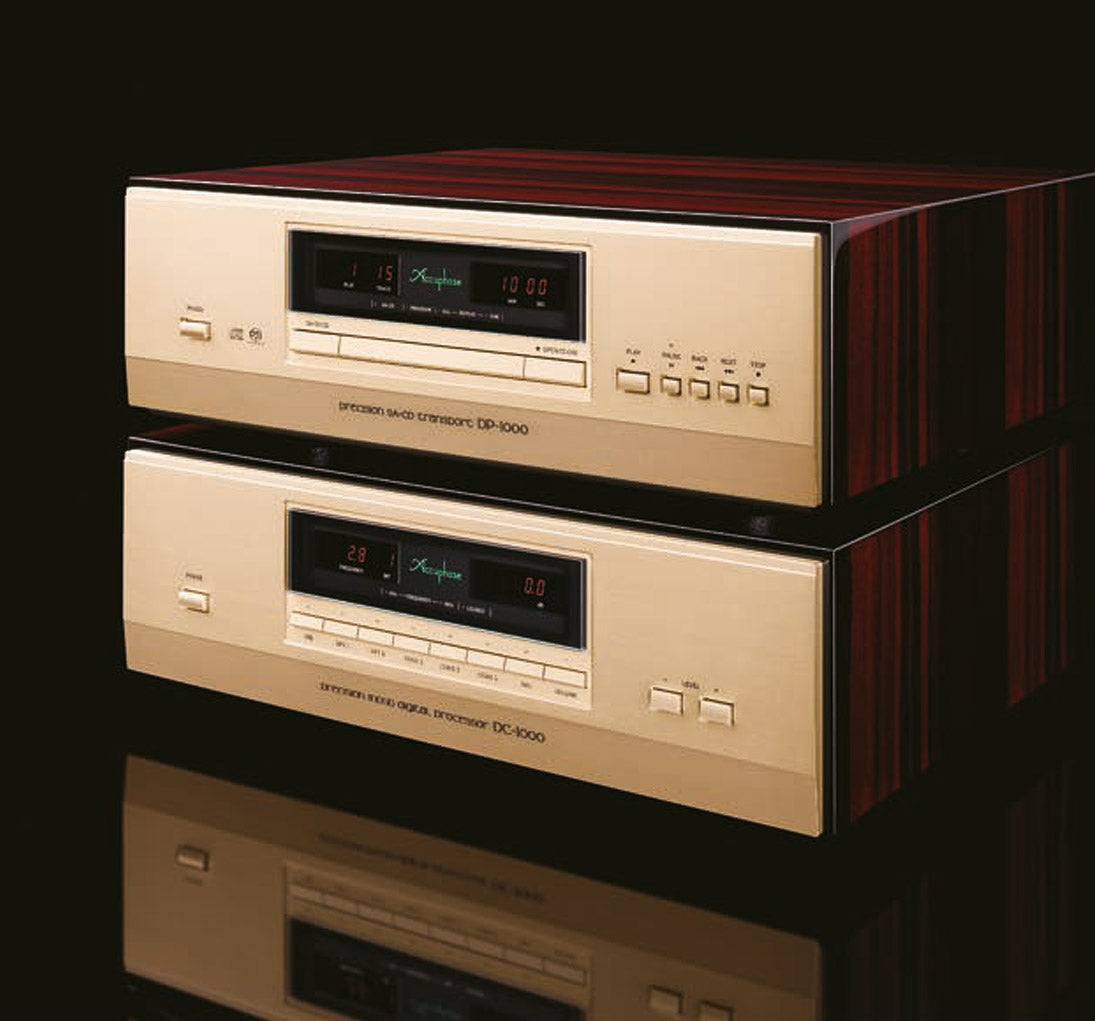

DC-1000
Precision MDSD Digital Processor
Accuphase celebrates 50 years of manufacturing with the DC-1000, a digital processor developed to deliver the ultimate in performance and sound quality. It is equipped with the ES9038 PRO (ESS Technologies) processor: an 8MDSD (DSD signal) / 8MDS++ (PCM signal) type D/A converter that drives 8 channels in parallel to deliver almost 3 times more performance than single channel converters. Low-noise technologies refined during development of the amplifiers, like amplification of ANCC and internal signals and parallel arrangement of power circuits, allow the DC-1000 to deliver unprecedented levels of emotion.
Features
- MDSD / MDS++ D/A converter driving 8 parallel channels using ANCC
- Dual Direct Balanced Filter with completely separate line and balanced signals
- Separate toroidal transformers for analog and digital circuits
- Separate low noise power supply circuits for analog and digital circuits
- Display with sampling frequency and number of quantization bits
- Output level adjustments that can control different outputs from other players
- Digital interface for Accuphase Voicing Equalizer
- Abundant digital inputs like USBs, etc. to connect with computers (HS-LINK, USB, OPTICAL × 2, COAXIAL × 3, BALANCED)
- Digital outputs that can be used in digital recording (OPTICAL, COAXIAL)
- 2 (BALANCED, LINE) analog outputs
- Phase selector that can invert the balanced output
- Active filter amplifiers use glass cloth fluorocarbon resin substrate with low dielectric constant and minimum loss
- Natural grain wood case with a mirror finish crafted by artisans using carefully selected virgin wood
- 8 mm thick machined aluminum bottom plate
- Advanced high-carbon cast iron insulators
- High quality audio cable ASL-10B

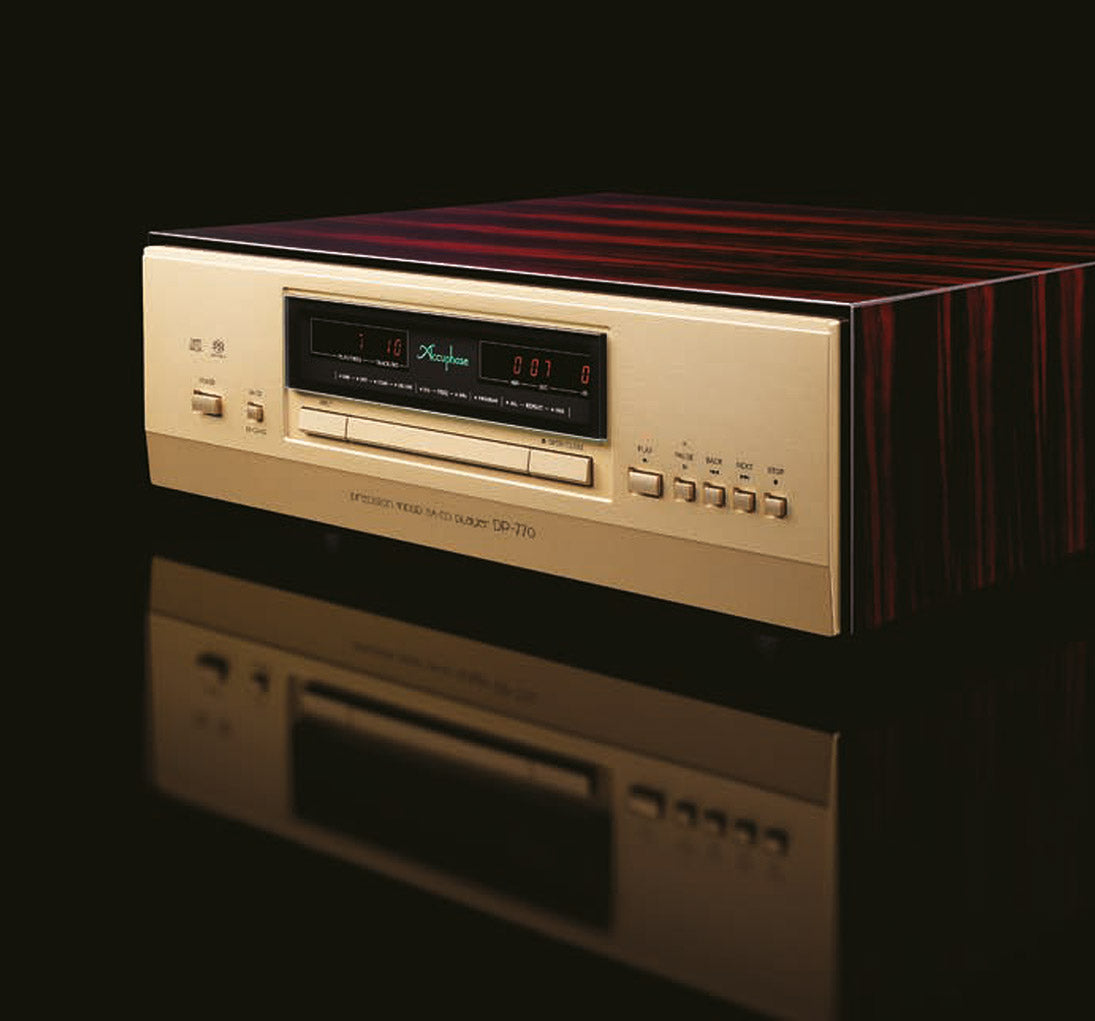

DP-770
Precision MDCD SA-CD Player
The high-rigidity, high-precision drive traverse mechanism equipped with an outer rotor brushless DC motor drive rotates discs smoothly and delivers accurate data reading, while the 8MDSD (DSD signal) / 8MDS++ (PCM signal) type D/A converter driving the ES9028 PRO (ESS Technologies) processor in 8 parallel channels converts the inputs into highly precise analog signals. The DP-770 also incorporates numerous noise suppression technologies like ANCC* to create an unparalleled musical experience.
Features
- High-rigidity, high-precision aluminum machined SA-CD/CD drive with low center of gravity
- MDSD/MDS++ D/A converter driving 8 parallel channels using ANCC
- Programmable playlists so that you can enjoy your music in the order you want
- Data disc playback
- Direct Balanced Filter with completely separate line and balanced signals
- Display with sampling frequency and number of quantization bits
- Abundant transport outputs and digital inputs
- Digital connections to an Accuphase Voicing Equalizer
- Balanced output phase selector

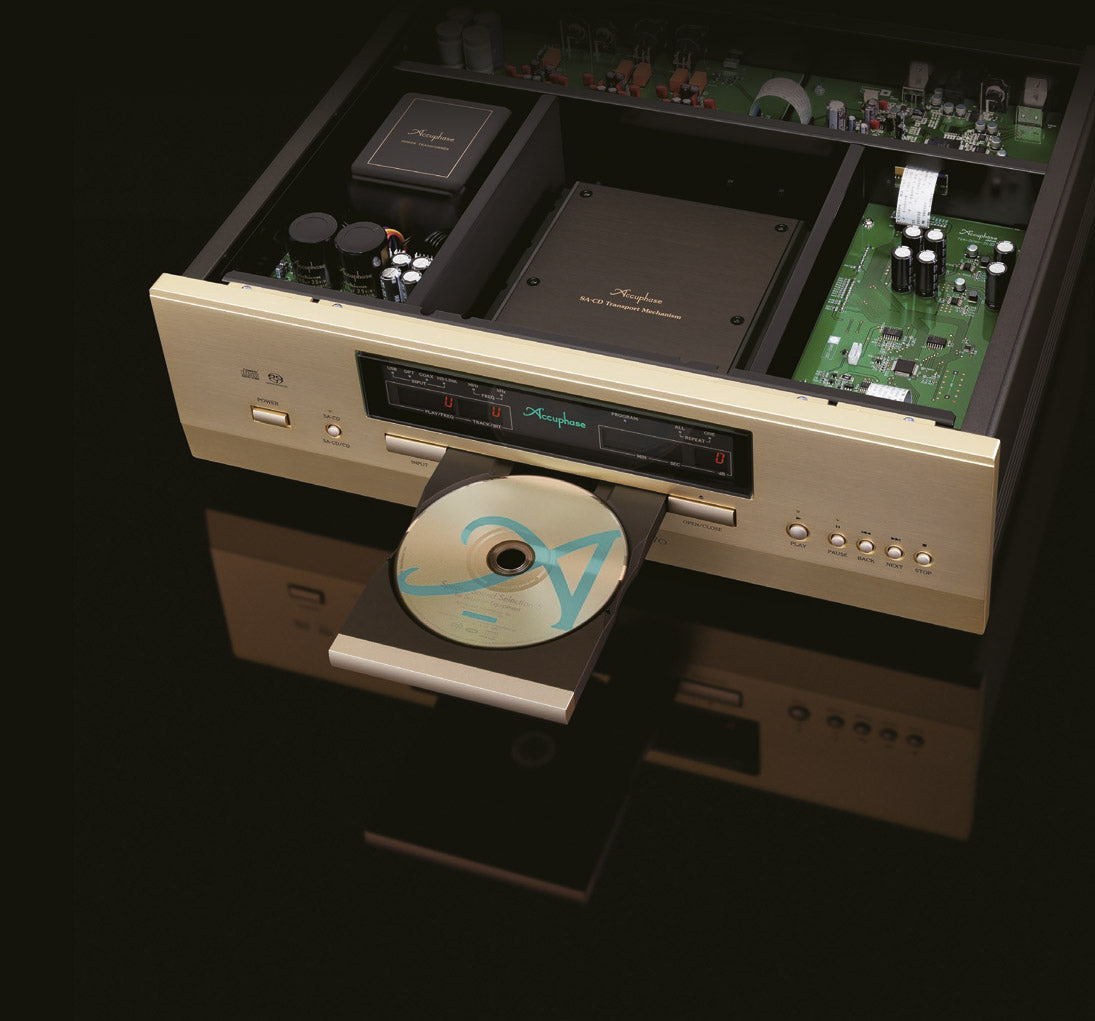

DP-570
MDS SA-CD Player
Equipped with quiet and smooth disc loading, the high rigidity and low center of gravity of the SA-CD/CD drive vastly improves readability, while the MDS+ type D/A converter with four parallel circuits accurately reads disc information and converts analog signals. It also supports a digital connection with a voicing equalizer and provides a programmable playlist feature that lets you enjoy listening in the order you prefer. Enjoy listening to the DP-570, the next step in the pursuit of the ideal disc playback experience.
Features
- High-grade SA-CD/CD drive
- MDS+ type D/A converter with four parallel circuits
- Direct Balanced Filter with separate line and balanced signal paths
- Programmable playlist
- Sampling frequency and quantization bit display
- Data disc playback
- Numerous transport outputs and digital inputs
- Digital connection with voicing equalizers
- Phase selector for balanced outputs

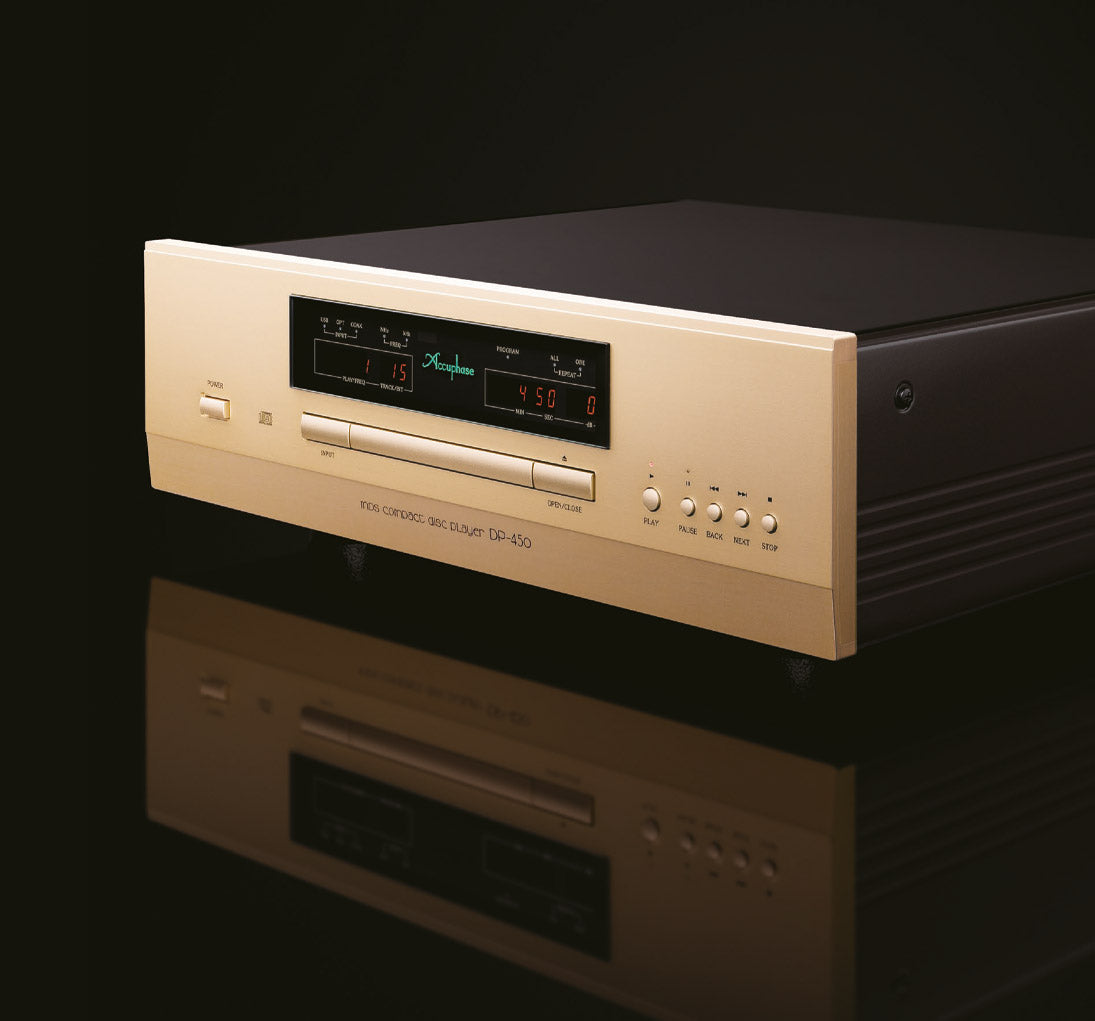

DP-450
MDS Compact Disc Player
Accuphase has spent 35 years developing CD players in pursuit of the best in disc playback. The DP-450 CD player combines a number of innovative technologies, including a CD drive mechanism with a strong integrated structure, high-quality elastic dampers that protect the lensactuator from vssibration, and MDS+ type D/A converters with four parallel circuits. The DP-450 extracts the full potential of any CD to deliver a listening experience that stays with you.
Features
- High-grade CD drive
- MDS+ type D/A converter with four parallel circuits
- Direct Balanced Filter with separate line and balanced signal paths
- Programmable playlists that can change track order
- Sampling frequency and quantization bit display
- Transport outputs and digital inputs
- Digital interface with USB input
- Digital connection with an Accuphase voicing equalizer
- Balanced output phase selection
DG-68
Digital Voicing Equalizer
In 1997, Accuphase introduced a product which revolutionized the concept of the graphic equalizer and made headlines in the audio world: the Digital Voicing Equalizer DG-28. Follow-up models in the DG series brought further improvements which garnered more praise and led to the recognition of the Voicing Equalizer as an indispensable component of the ultimate audio system.
The high-resolution, high-definition color IPS LCD panel allows the use of a stylus pen to directly draw any desired response curve. Intuitive operation and a full complement of sophisticated display functions make sound field compensation swift and easy while giving the user full control. Setting data as well as display screenshots can be saved on a USB flash drive for quick recall at any time. The DG-68 brings out unknown possibilities in music reproduction by controlling the sound field and tone exactly in accordance with the user's preferences.
Features
- Fully digital signal processing Voicing Equalizer
- Separate sound field compensation and equalizer functions
- Smooth Voicing feature prevents excessive correction based on the low frequency reproduction capability of the speakers
- High-speed 40-bit floating point DSP
- High-accuracy A / D and D / A conversion circuitry
- Intuitive and highly readable menu screens make operation easy
- Freely programmable 30 pattern memory
- Analog and digital inputs and outputs provided as standard

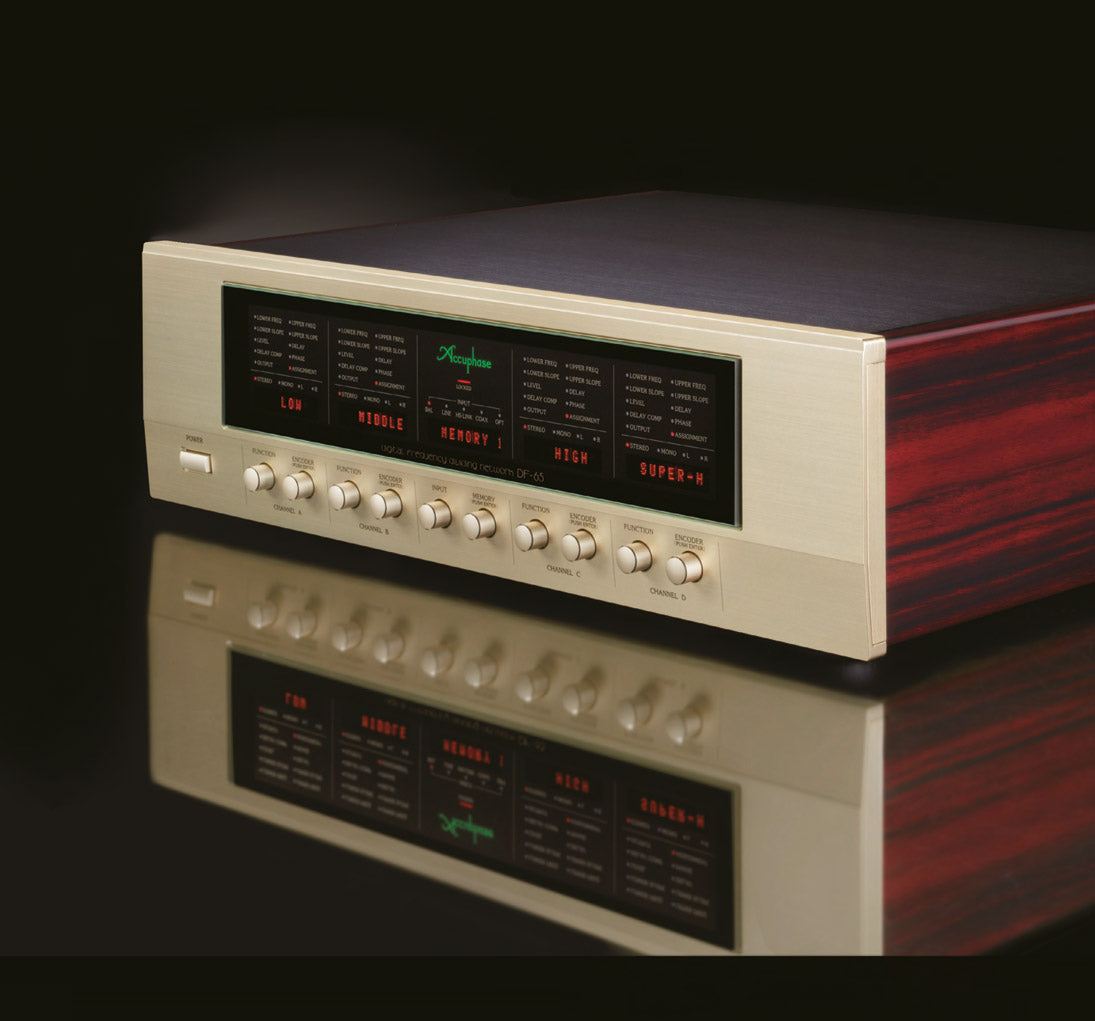

DF-65
Digital Frequency Dividing Network
The Digital Frequency Dividing Network DF-65 harnesses the very best of digital technology in every aspect, including a high-speed 40-bit floating point DSP. The standard unit configuration supports signal processing for up to four-way systems. Highly accurate digital filters offer a choice of 59 cutoff frequency points and up to 96 dB/octave attenuation. Integrated time alignment function adjustable in 0.5-cm steps, and delay compensator for automatically offsetting any filter circuit delays. Monophonic output mode provides high versatility for various configurations.
Features
- High-speed DSP realizes fully digital signal processing in channel divider units
- Standard configuration allows 4-channel (4-way) system setup
- 59 selectable cutoff frequency points
- Highly accurate 96 dB/oct attenuation slope
- Time alignment function allows delay time setting in 0.5-cm steps
- Delay compensator offsets signal delays in filter circuitry
- Further refined MDS++ D/A converter
- Selectable monophonic output mode for further enhanced specifications
Tuner, Power Supply, Phono, and more
Discover supreme listening pleasure with our range of Accuphase Tuners, Power Supply, Phono Cartridges, and other Options.
Experience Accuphase's stunning musical performance and sound purity.

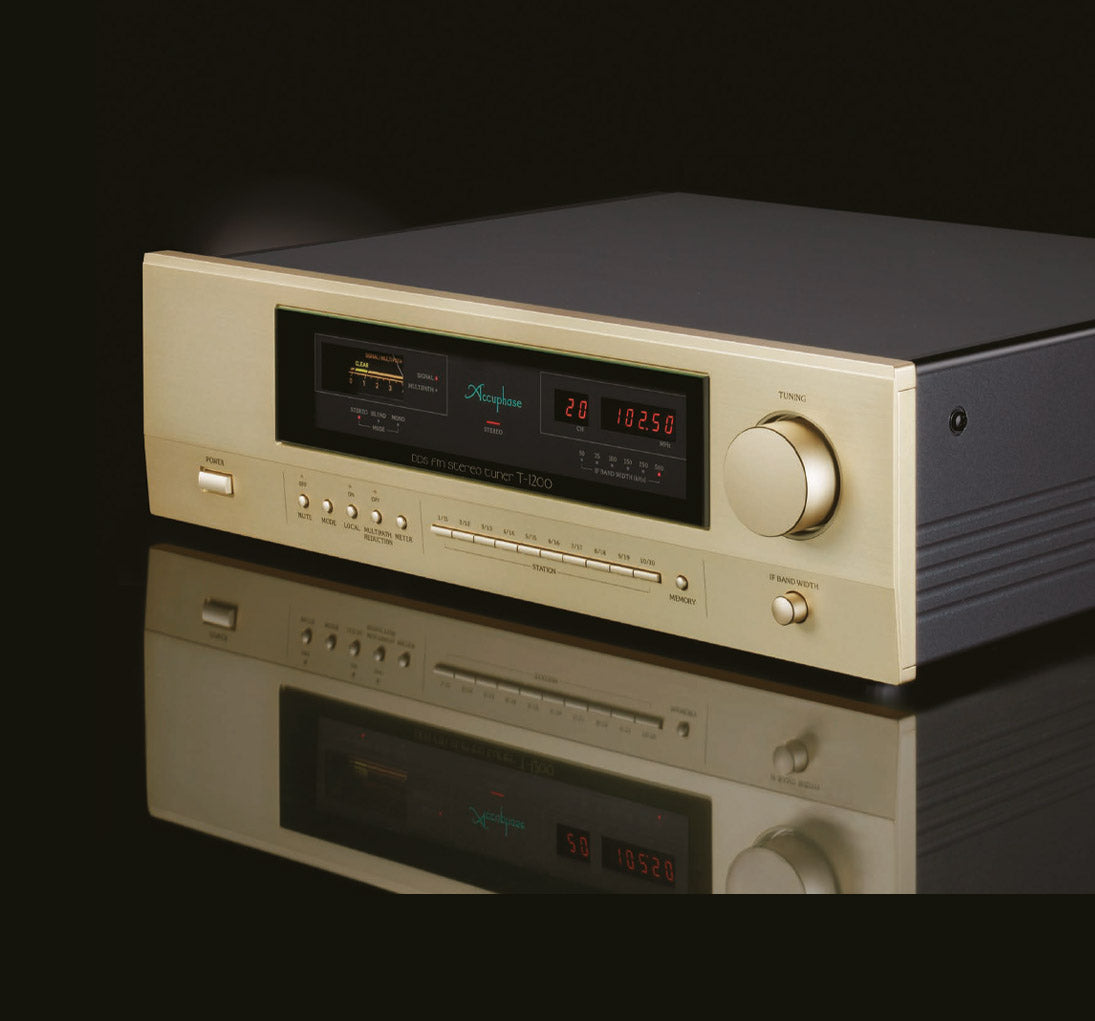

T-1200 DDS FM Stereo Tuner
With impeccable sound quality and outstanding performance in an easy to use format, this FM tuner has been developed for demanding audio and music connoisseurs.
Features
- Using a blend of latest RF circuit design with sophisticated digital signal processing
- Most major functions after the intermediate frequency stage such as the variable bandwidth IF filter, multipath reduction, digital FM demodulator and DS-DC stereo demodulation have been moved to software on the DSP chip
- Manual tuning using the pulse tuning method, plus 20-station memory tuning
- A digital output provides further flexibility
PS-1250 Power Supply
Clean Power Supply
The PS-1250 delivers impressive improvements in audio quality, making it an essential supplement to fine audio equipment.
Features
- Input /output waveform display
- Output power meter
- Input/output voltage meter
- Input/output distortion meter
- Massive output capacity
- 0.08% total harmonic distortion waveform shaping
- High-grade output voltage correction
- Numerous output terminals
- High-sensitivity protection circuitry
- Large high-efficiency toroidal transformer
- Large filtering capacitors

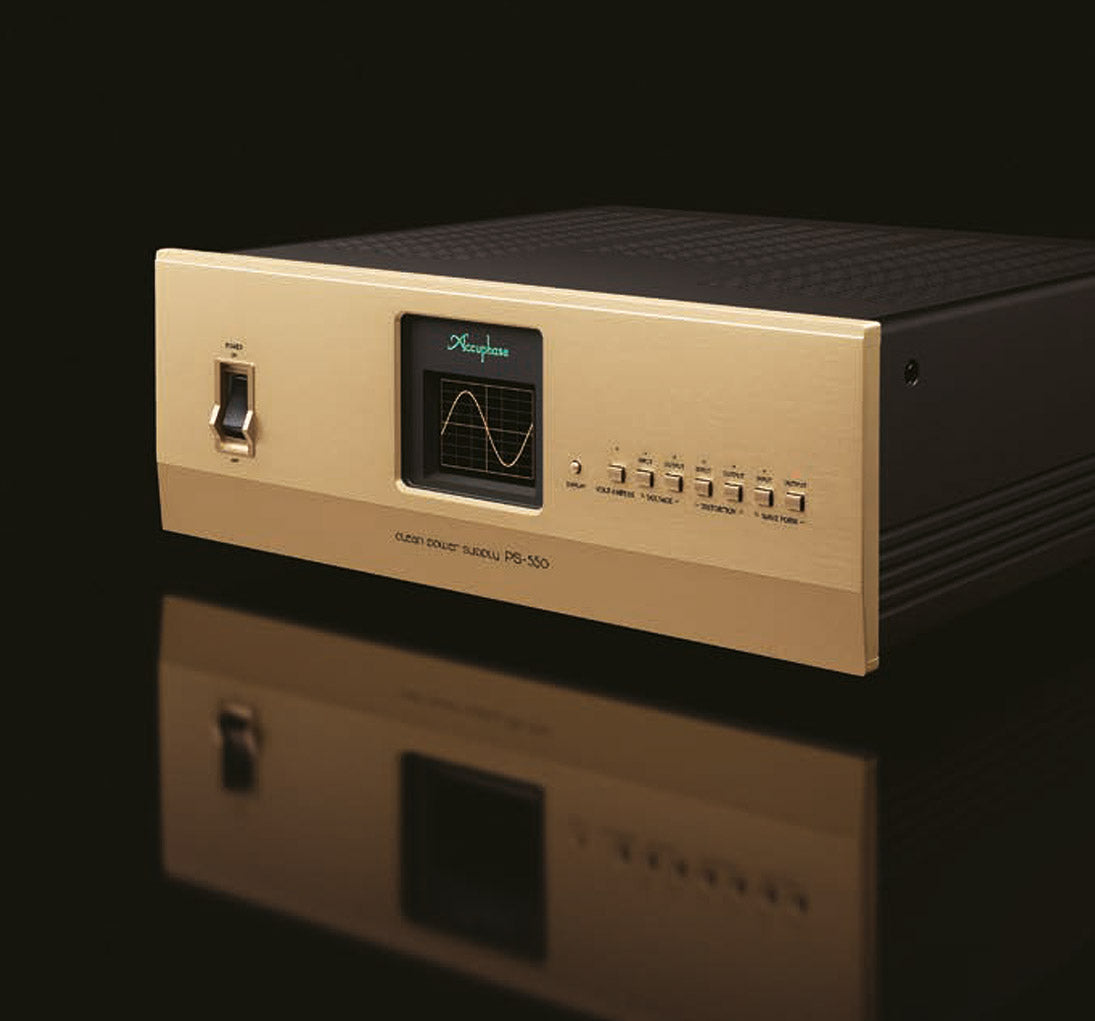

PS-550 Power Supply
Clean Power Supply
The PS-550 can deliver as much as 510 VA, covering the requirements of most standard audio components.
Features
- AC voltage stabilizer based on waveform shaping technology
- Acts as a source of extremely clean energy
- Low-distortion reference waveform generator
- Highly effective waveform compensation
- Outstanding current capability
- Superb interference rejection
- Built-in meter for monitoring vital parameters including output power, input/output voltage, and input/output distortion
- Advanced protection features
- Large high-efficiency toroidal transformer

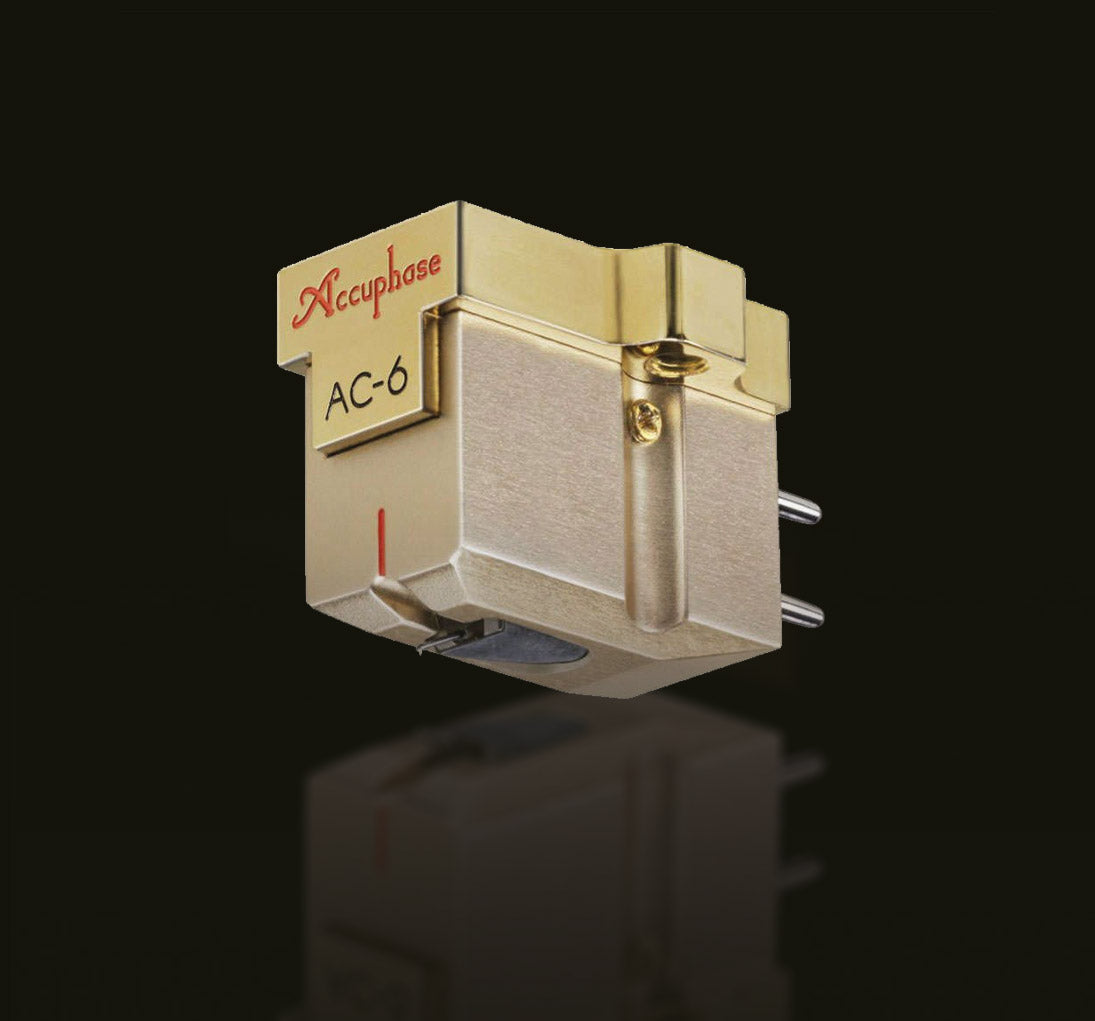

AC-6 Moving Coil Phono Cartridge
The AC-6 is a new addition to the highly acclaimed Accuphase lineup of phono cartridges. This MC cartridge features the latest technology in terms of materials and construction. Every single aspect of the cartridge has been finely honed to deliver optimum performance, ushering the listener into the wonderful world of analog records.
Features
- Base section made of stiff extruded titanium further hardened by gold ion plating
- Cartridge body made of extruded aluminum with gold-colored alumite coating
- Solid boron cantilever with high propagation speed faithfully transmits the stylus
motion - Semi line contact stylus shape accurately traces even minute groove details
- Magnetic circuit with strong grade N50 permanent neodymium magnet

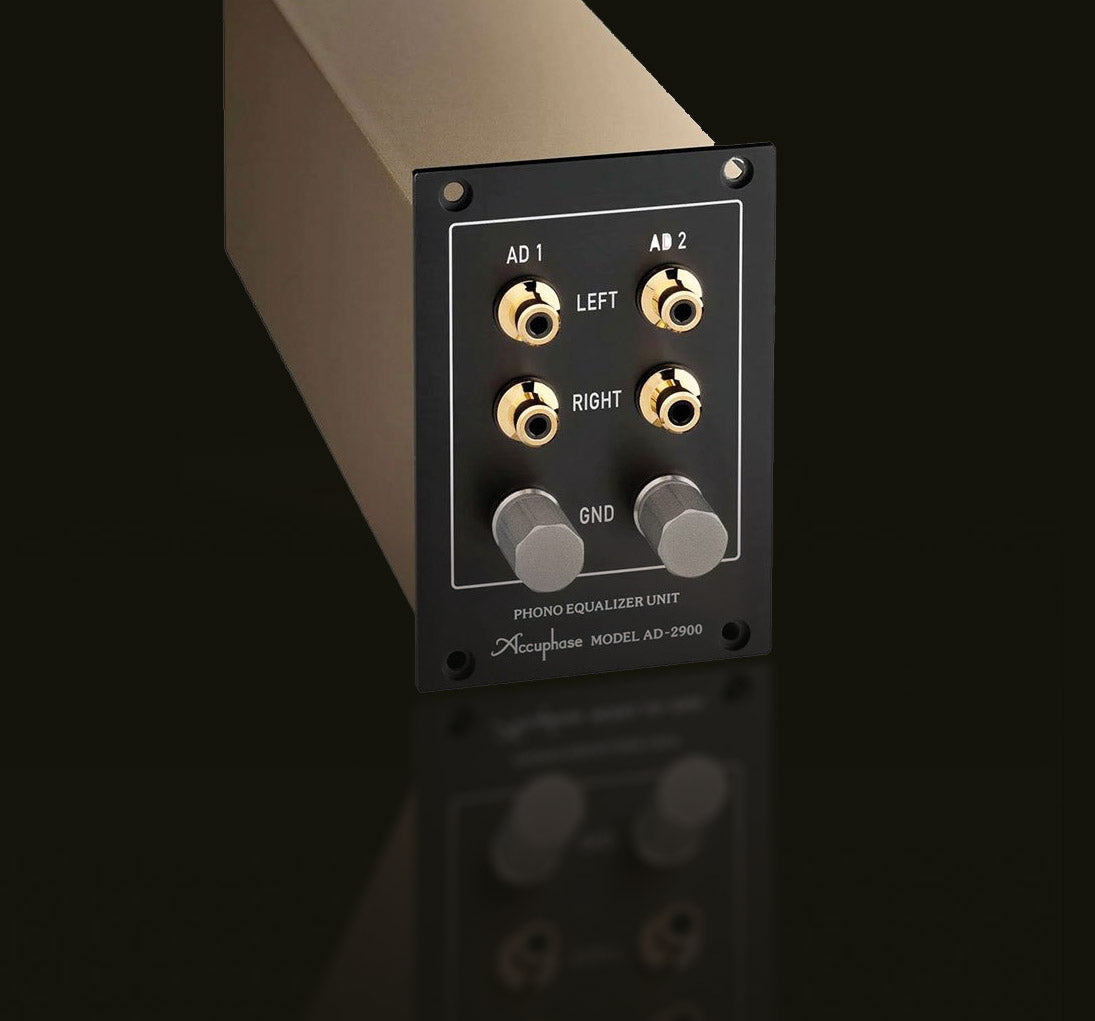

AD-2900 Option Board
Phono Equaliser Unit
AD-2900 is the dedicated phono equalizer unit. Analog records can be reproduced with high quality by installing AD-2900 in a rear-panel slot. The AD-2900 features separate input circuitry for MC and MM cartridges to ensure optimum matching and realize outstanding S/N ratio. 2 sets of analog-player input jacks, the AD1 and AD2 are equipped, and their selections are switchable with the INPUT selector of pre-amplifiers.

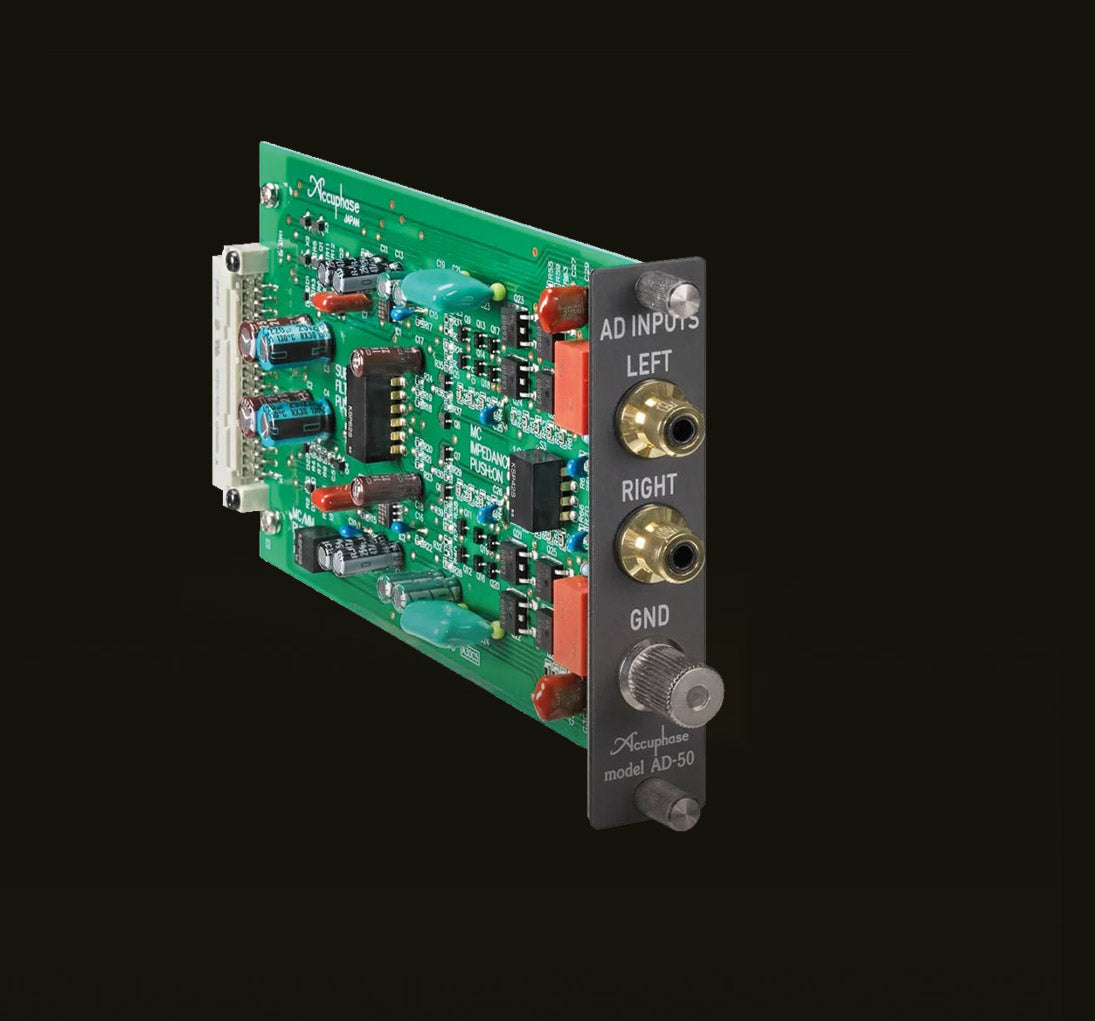

AD-50 Option Board
Analog Disc Input Board
High- performance phono equalizer amp for playback of analog records.
Features
- MC/MM switching is possible on the front panel of the enabled device.
- Internal DIP switches control MC input impedance and subsonic filter on/off

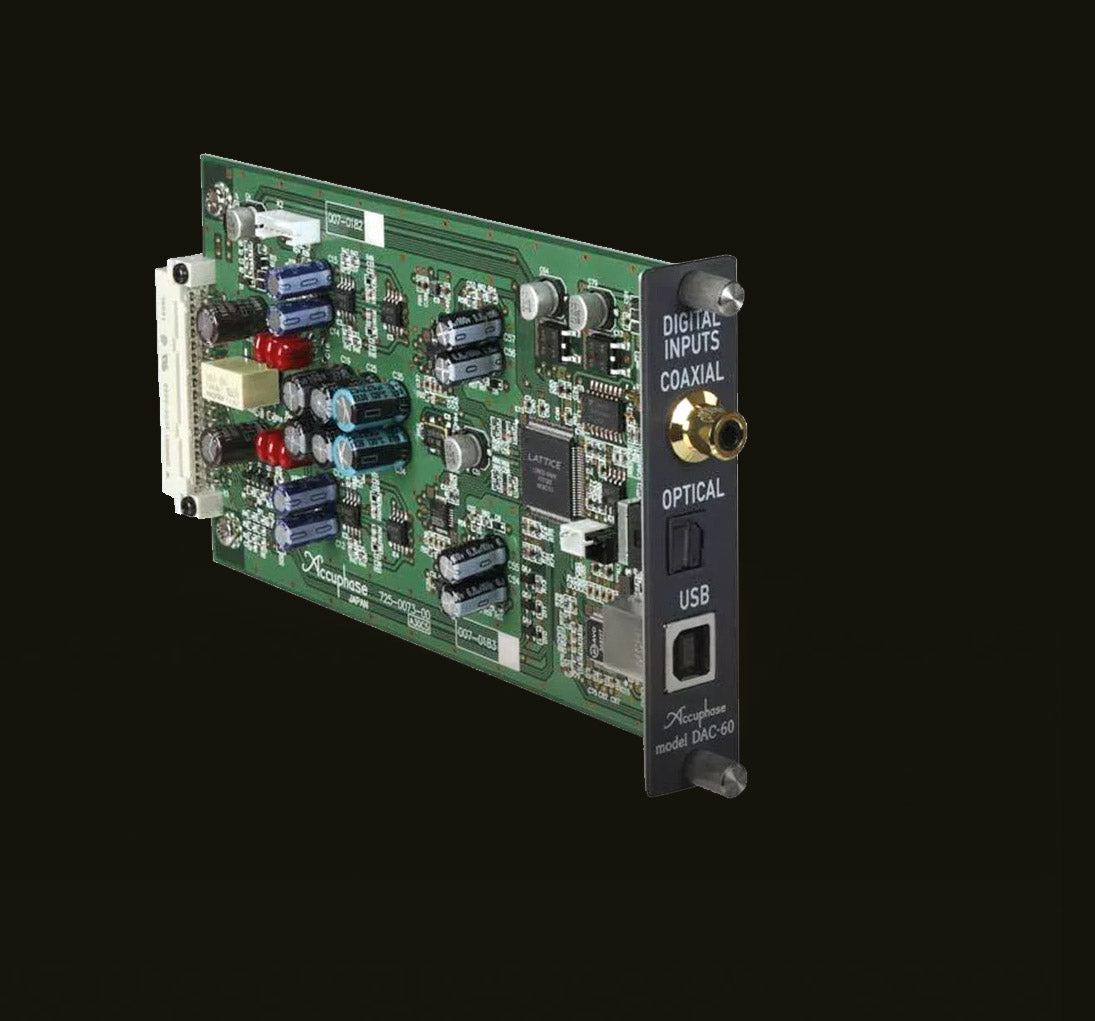

DAC-60 Option Board
Digital Input Board
The DAC-60 is a digital input board that can input digital signals directly into amplifier units when installed in Accuphase preamplifiers and integrated amplifiers. Three input types are provided (USB, OPTICAL, COAXIAL) for connection to a broad range of digital devices.
LINE-10 Option Board
Line Input Board
Born from cutting-edge audio technologies, the LINE-10 is an option board that provides truly high-quality and fully expressive performances.
Compatible: C-2000, C-245, C-265, CX-260 E-307, E-308, E-407, E-408, E-530, E-550
