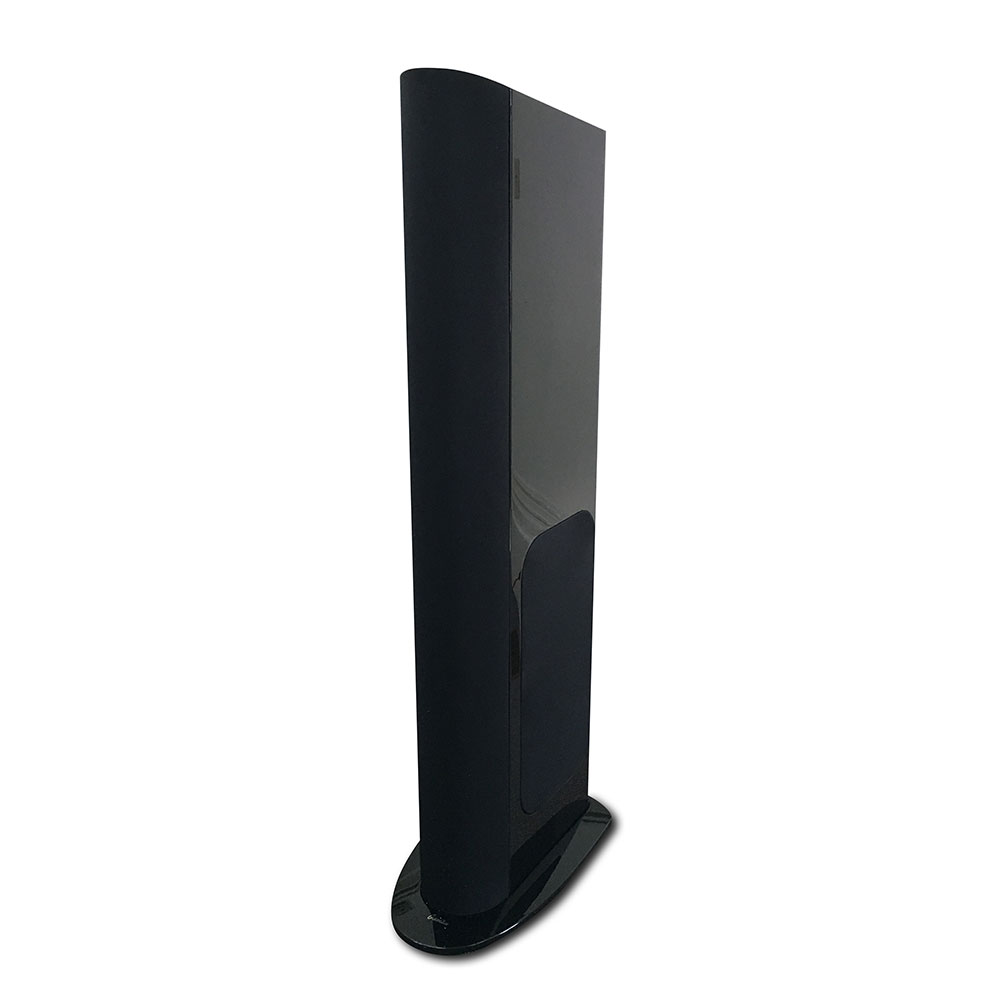

GoldenEar Triton Reference Speakers

Reference Floorstanding Tower with Built-in 1800 Watt SuperSubwoofer

The Triton Reference is an evolution of all we’ve learned so far, taken to a stunning level of sonic performance and sophisticated visual design. All the components are specifically developed for use in the Reference, including the fully-balanced and the powerful subwoofer amplifier and 56-bit DSP control unit.

The Reference has been engineered to perform with a dramatic and authoritative voice, comparable to speakers many times its surprisingly affordable price. They completely disappear, with superb three-dimensional imaging that stretches from wall to wall and beyond. Tremendous time and energy has been put into the voicing of the speaker and the seamless blending of the drivers, for unmatched musicality with all types of music, and home theater perfection.

Book a demo
Devialet Expert 220 integrated amplifier
The Details

SPECIFICATIONS


TRITON REFERENCE

WEIGHT
49.8 kg

DIMENSION (H X W X D)
23.36 cm x 47.6 cm x 147.27 cm (W x D x H)
(height is with base installed, no spikes)

Base: 13-5/8" W x 22-1/4" D

FREQUENCY RESPONSE
12 Hz – 35 kHz

EFFICIENCY
93.25 dB

NOMINAL IMPEDANCE
Compatible with 8 ohms

DRIVER COMPLEMENT
  • Three 6" x10" long-throw quadratic Reference subwoofers, coupled to:
  • Four - 9-1/2"x10-1/2" Quadratic Planar Infrasonic Radiators
  • Two - 6˝ High-Definition Cast-Basket Reference Mid/Bass Drivers, One High-Gauss Reference High-Velocity Folded Ribbon (HVFR™) Tweeter



RECOMMENDED AMPLIFICATION
20 – 750 watt/channel







TRITON ONE.R

WEIGHT
36.3 kg (product) | 47.6 kg (shipping)

DIMENSION (H X W X D)
14.6 cm (W - front) x 20.3 cm (W - rear) x 42.3 cm (D) x 137.2 cm (H)

Base: 31.4 cm (W) x 50.2 cm (D)

FREQUENCY RESPONSE
13 Hz - 35 kHz

EFFICIENCY
92 dB

NOMINAL IMPEDANCE
Compatible with 8 ohms

DRIVER COMPLEMENT
  • Three - 5˝ x 9˝ Long-Throw Quadratic Reference Subwoofer Bass Drivers, coupled to:
  • Four - 7˝ x 10˝ Quadratic Planar Infrasonic Radiators
  • Two - 5-1/4˝ High-Definition Cast-Basket MVPP™, Focused Field, Reference Upper-Bass/Mid Drivers
  • One - High-Gauss HVFR™ High-Velocity Reference Folded Ribbon Tweeter

RECOMMENDED AMPLIFICATION
20 - 650 watt/channel

BUILT-IN SUBWOOFER POWER AMPLIFICATION
1600 watt SuperSub Amplifier





TRITON FIVE

WEIGHT
18 kg (product) | 25.4 kg (shipping)

DIMENSION (H X W X D)
16.8 cm (W - front) x 20.5 cm (W - rear) x 31.3 cm (D) x 112.4 cm (H)

Base: 27.9 cm (W) x 41.9 cm (D)

FREQUENCY RESPONSE
26 Hz - 35 kHz

EFFICIENCY
90 dB

NOMINAL IMPEDANCE
Compatible with 8 ohms

DRIVER COMPLEMENT
  • Two - 6˝ High-Definition Cast-Basket
    Mid/Bass Drivers, coupled to:
  • Four - 8˝ Planar Sub-Bass Radiators
  • One - HVFR™ High-Velocity Folded Ribbon Tweeter





RECOMMENDED AMPLIFICATION
15 - 400 watt/channel








High-Velocity Folded Ribbon Tweeter (HVFR)
  • Tweeter Diaphragm is a High Temperature Film
  • High-Power Neodymium Magnets
  • Squeezes/Pressurizes Air Instead of Pushing It
  • Greater Control, Smoother More Extended Response
  • Vanishingly Low Distortion
  • Dramatically Improved Dynamic Range and Detail
  • Superb Dispersion Characteristics





High-Definition Cast-Basket Bass/Midrange Driver
  • GoldenEar Multi-Vaned Phase Plug (MVPP) Design
  • Rigid Free-Flow Cast-Basket Chassis
  • Proprietary Computer Optimized Cone Topology
  • High-Gauss Magnet Assembly (Focused Field on Triton One.R)
  • 1˝ High-Temperature Kapton Former Voice Coil
  • Extremely Extended Resonant-Free Linear Frequency Response Characteristics



5˝ x 9˝ Quadratic Sub-Bass Driver
  • Ultra-Long Throw
  • Glass Fiber and Nomex® Composite Cone
  • Huge, High-Gauss Magnet Assembly
  • 1.5˝ High-Temperature Aluminum Voice-Coil
  • Quadratic Cone topology for Maximum Cone Surface Optimization







Quadratic Planar Infrasonic Radiators
  • Quadratic Planar Radiators, Four on Triton One, Two on Triton Two+ and Three+
  • Pressure-Coupled Loading Extends Usable Bass Performance to the Infrasonic Region
  • Performs Like a well-Tuned Transmission Line but with Superior transient Performance and Control
  • Inertially-balanced opposing design
