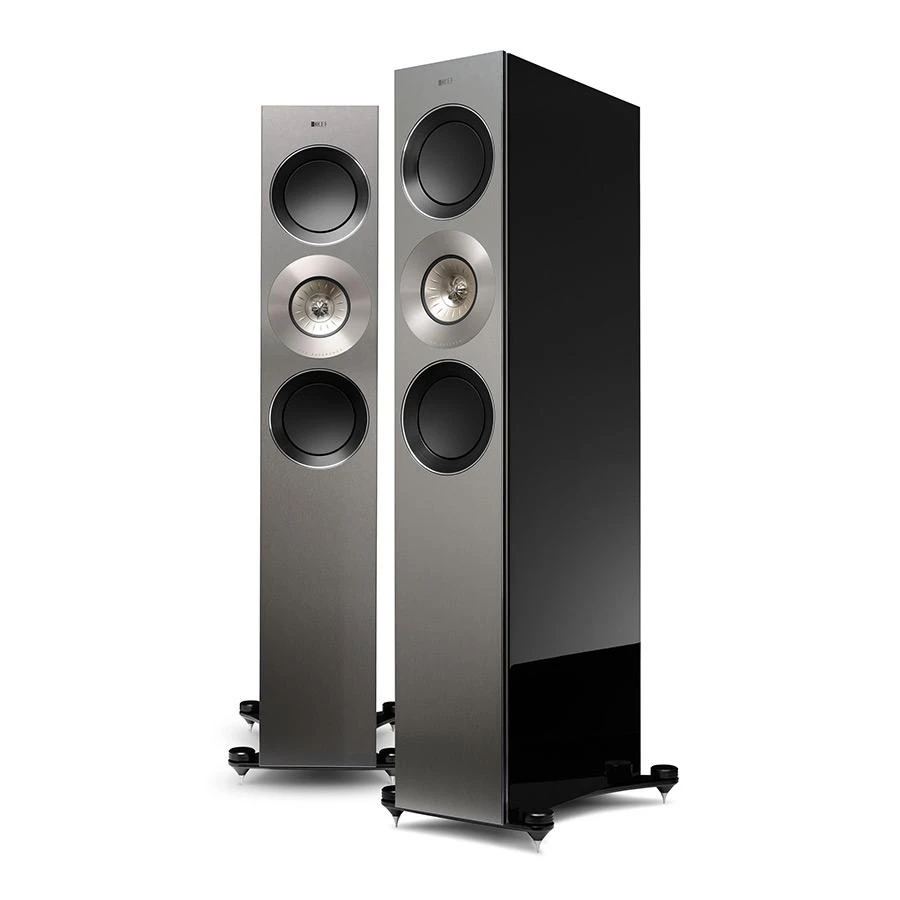

    KEF Reference 3

    Mid-sized three-way floorstander

    KEF REFERENCE 3's intricate, emotionally compelling three-dimensional soundstage places you right at the heart of the original performance.

    With an uncanny ability to generate an intricate, totally natural-sounding 3D soundstage, the REFERENCE 3 is equipped to get you to the heart and soul of your favourite music and movies.

    Live Experience

    REFERENCE 3

    Two 165mm (6.5 inch) bass drivers positioned above and below KEF's latest 125mm (5 inch) MF/HF Uni-Q driver array means that fidelity across the midrange and treble is outstanding. Everyone in the room can enjoy the same rich, spatially precise imagery and it puts them right at the heart of the original performance.

    SPECIFICATIONS

    WEIGHT

    51.3kg (113.1lbs)


    DIMENSION (H X W X D)

    H x W x D with grille and terminal : 1155 x 205 x 470 mm (44.5 x 8.1 x 18.5 in.)
    H x W x D with grille, terminal & plinth : 1202 x 349 x 470 mm (47.3 x 13.7 x 18.5 in.)


    DESIGN

    Three-way bass reflex


    IMPEDANCE

    8 Ohms (min.3.2 Ohms)
    FREQUENCY RANGE

    Typical in room bass response: 28Hz (-6dB)
    Free Field - Short port: 38Hz - 45kHz (-6dB)
    Free Field - Long port: 35Hz - 45kHz (-6dB)


    CROSSOVER FREQUENCIES

    350Hz, 2.8kHz


    FREQUENCY RESPONSE

    43Hz - 35kHz (±3dB)


    MAXIMUM OUTPUT

    113.5 dB (peak sound pressure level at 1m with pink noise)
    DRIVE UNITS

    Uni-Q driver array:
    HF: 25mm (1in.) vented aluminium dome
    MF: 125mm (5in.) aluminium
    Bass units:
    LF: 2 x165mm (6.5in.) aluminium


    BASS DRIVER:

    LF: 4x 165mm (6.5in.) hybrid aluminium


    CROSSOVER FREQUENCIES

    400Hz, 2.9kHz


    AMPLIFIER CLASS

    50-300W
