GoldenEar

10-inch, 1200-watt ultra-compact powered subwoofer

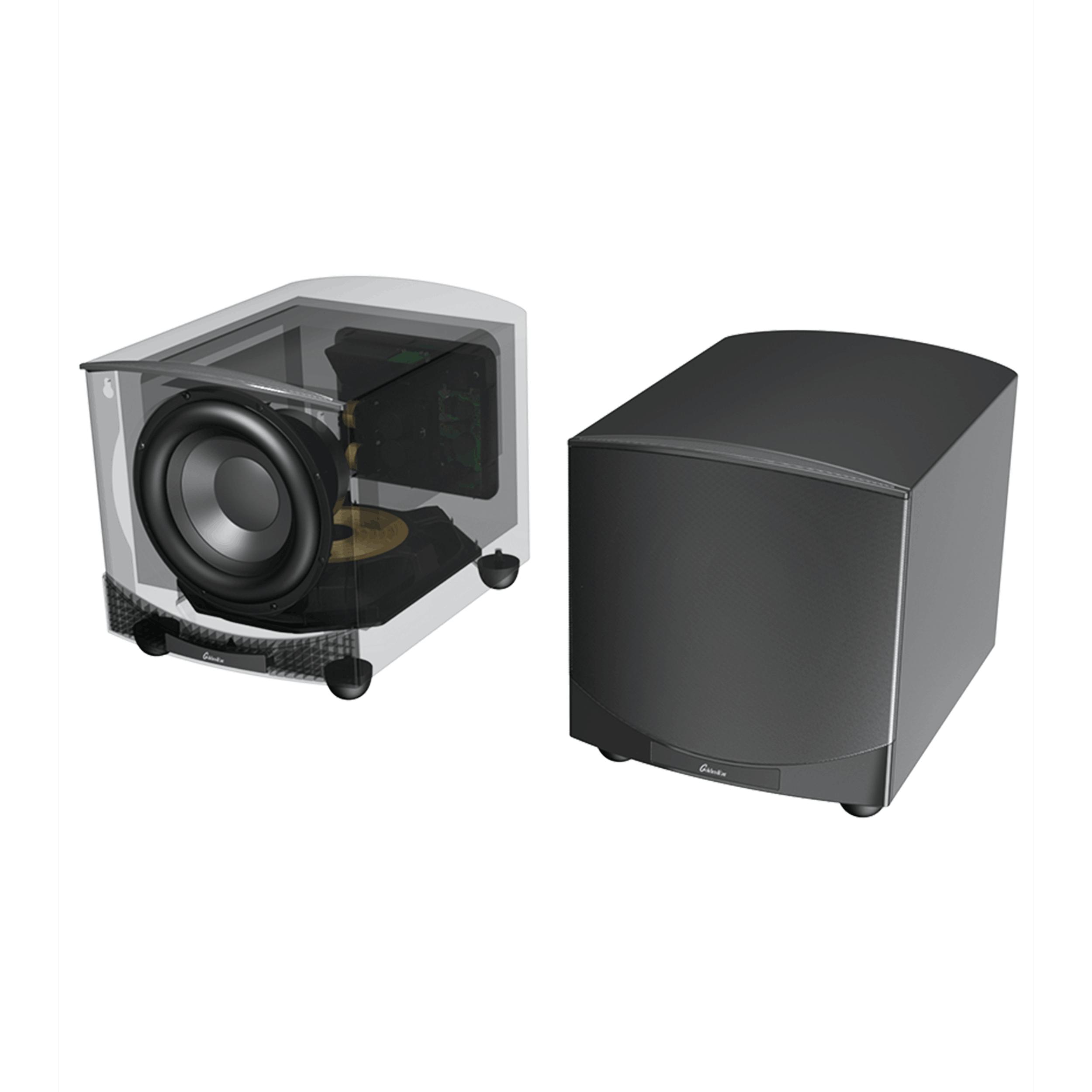

The flagship of GoldenEar's ForceField Series, the mighty ForceField 40 features one 10” ultra-long-throw high-output bass driver, one 11” x 13” downward-firing passive radiator, and a 1200W ForceField digital amplifier. Frequency response is 26Hz - 200Hz; Anechoic response: 31Hz – 170Hz (-6db on axis).

SPECIFICATIONS
Driver Complement

One 10" Long-Throw High-Output Bass Driver

One 11" x 13" Quadratic Planar Back-Wave-Driven Radiator

Passive Radiator Surface Area

98.63in2(636.35cm2cm2)

Frequency Response

24Hz–170Hz (-6dB on axis, anechoic)

Amplifier

1000W peak/500W RMS, DSP-Controlled, MOSFET Output Stage (50-ohm load – 5 seconds sustained 55Hz sinusoidal signal) Note: Not tested to FTC standard (8-ohm load – 5 minutes sustained 1kHz sinusoidal signal)

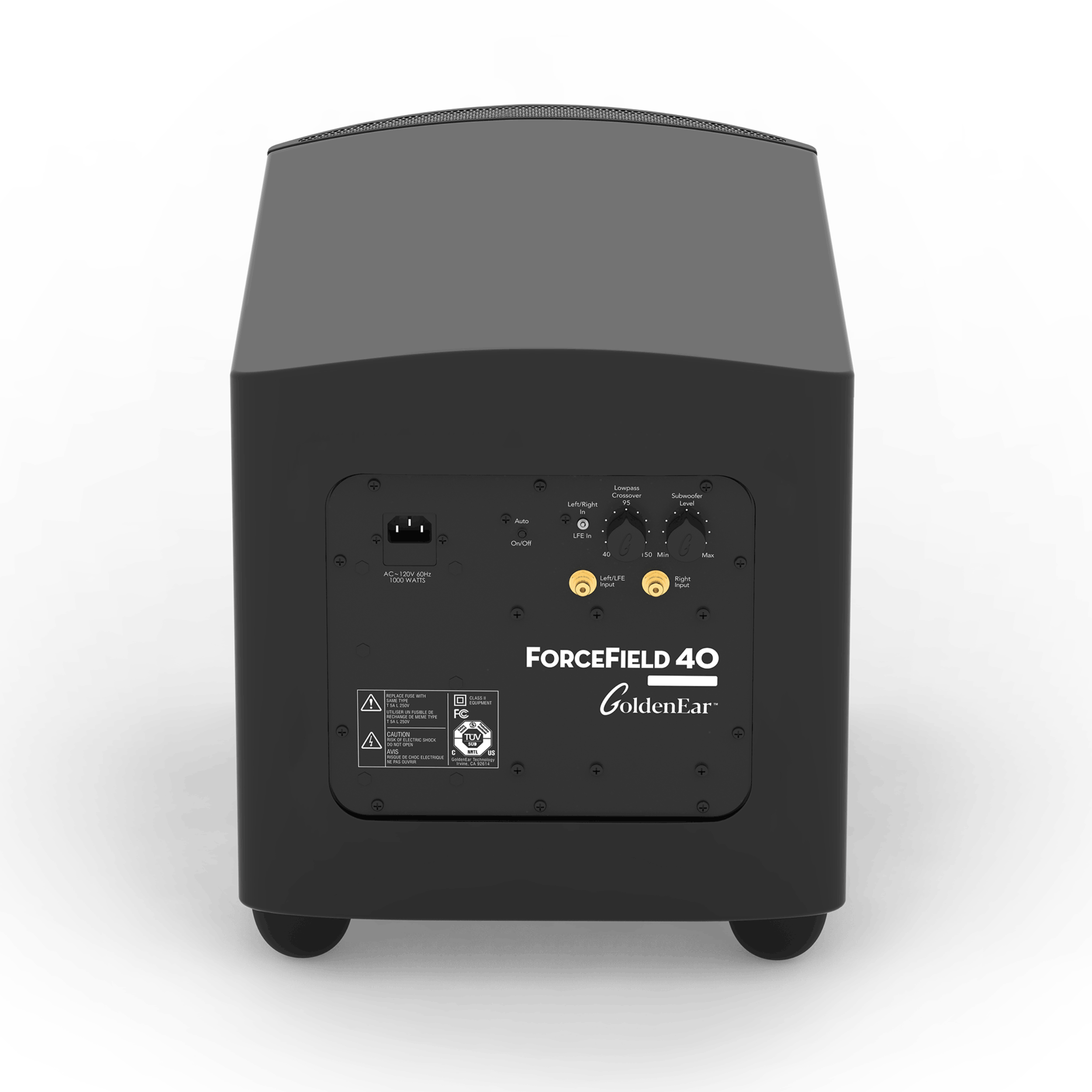

Right/Left Line-Level Input

12dB per octave continuously variable from 40–150Hz

Low-Level Input (Mono)

Unfiltered (no low-pass), direct coupled

Power Requirements/Consumption

Low Voltage Model: 100-120V at 50 or 60Hz/1400 Watts

High Voltage Model: 220-240V at 50 or 60Hz/1400 Watts

DIMENSIONS
Dimensions

13.3" (33.7cm) W x 18.3" (46.5cm) D x 14.7" (37.3cm) H (with feet)

Weight

Product: 40.5lbs (18.4kg); Shipping: 46.5lbs (21.1kg)
