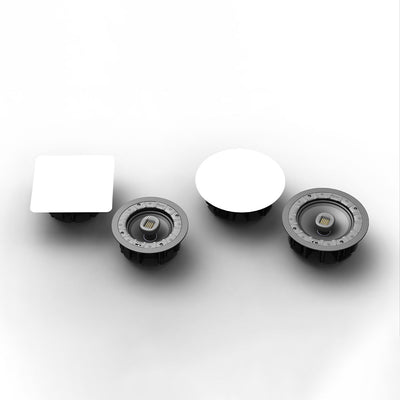

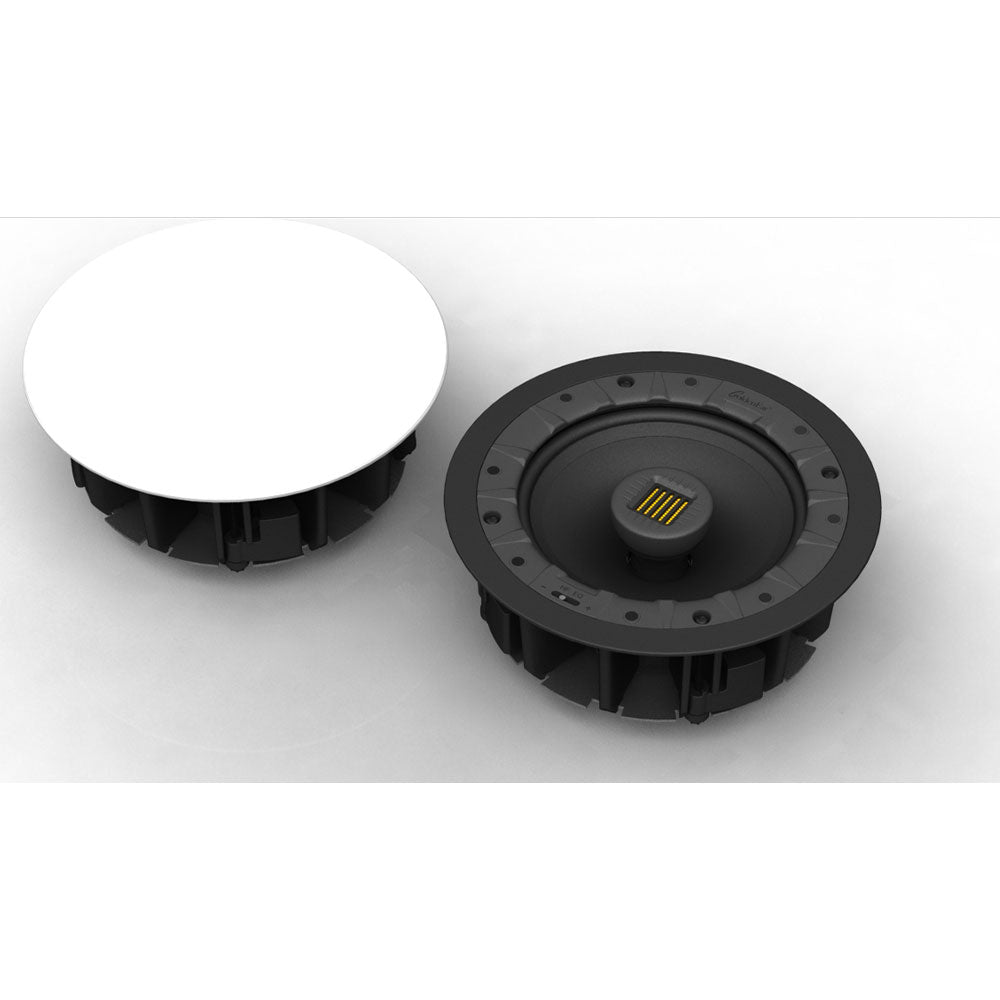

GoldenEar Invisa 650 In-Wall Loudspeaker

In-Ceiling/In-Wall Loudspeaker

The Invisa 650 and 525 are designed for in-ceiling and in-wall use. The driver motor structures and cone/voice coil assemblies (5.25" in the 525 and 6.5" in the 650) are based on those utilized in GoldenEar’s Triton and Aon speakers. Of course, both also incorporate the GoldenEar High Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance.

The Invisa 525 and 650 ceiling speakers / in wall speakers come standard with a round, paintable MagneLock™ grille and there is an optional square grille available. Special attention has been given to achieving wide sonic dispersion that is so important in distributed audio systems. The tweeters twist and pivot to optimize performance and a high-frequency equalization switch allows precise matching to any environment.

Book A Demo     Shop GoldenEar online

Warranty

Limited Warranty

  • 5 years for speaker drivers and cabinets
  • 3 years for all other electronic components.
The Details

SPECIFICATIONS


WEIGHT
1.8 kg (product) | 2.5 kg (shipping)

SPEAKER DIMENSIONS
20.6 cm diameter x 8.7 cm depth

SQUARE GRILLE DIMENSIONS
22 cm diameter x 22 cm depth

ROUND GRILLE DIMENSIONS
22 cm diameter

CUTOUT
18 cm diameter

FREQUENCY RESPONSE
25 Hz - 35 kHz

EFFICIENCY
90 dB

NOMINAL IMPEDANCE
Compatible with 8 ohms

DRIVER COMPLEMENT
  • One - 6-1/2˝(16.51 cm)  High-Definition Cast-Basket Mid/Bass Driver
  • One - Pivotable HVFR™ High-Velocity Folded Ribbon Tweeter
RECOMMENDED AMPLIFICATION
10 - 250 watt/channel
