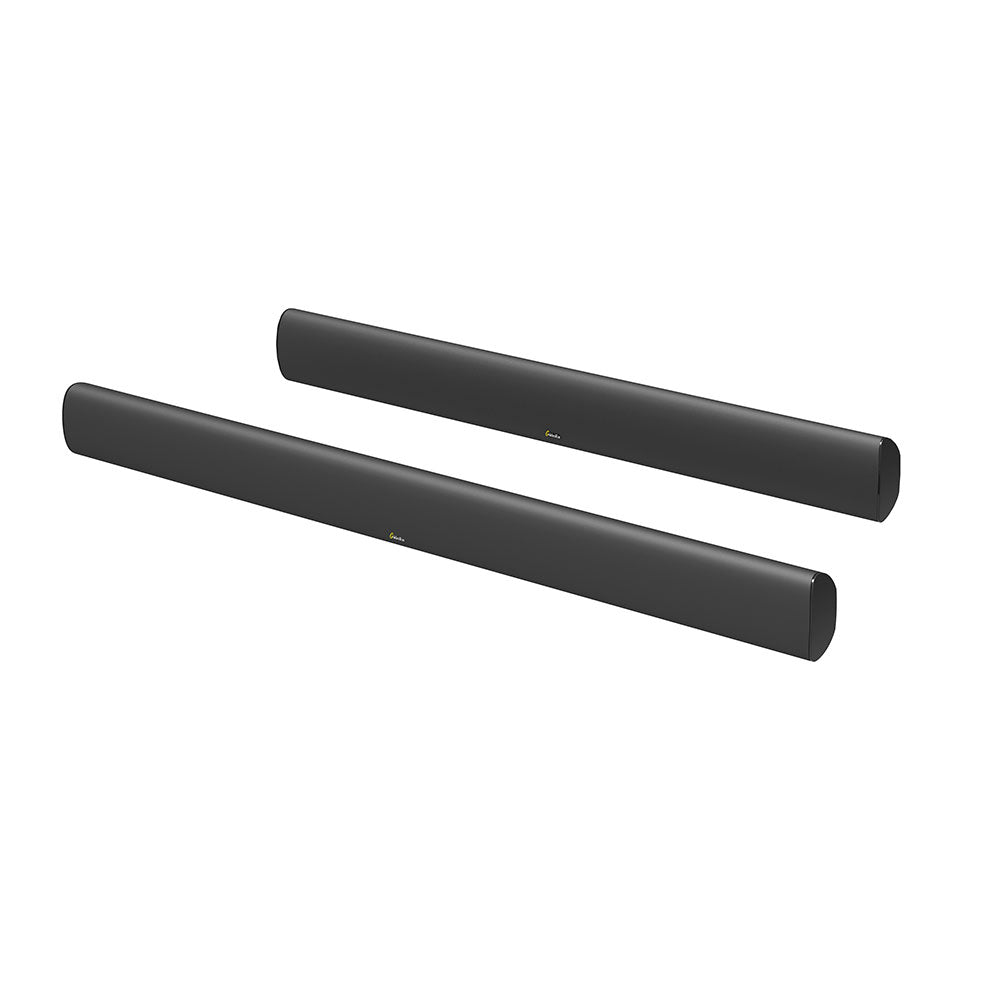

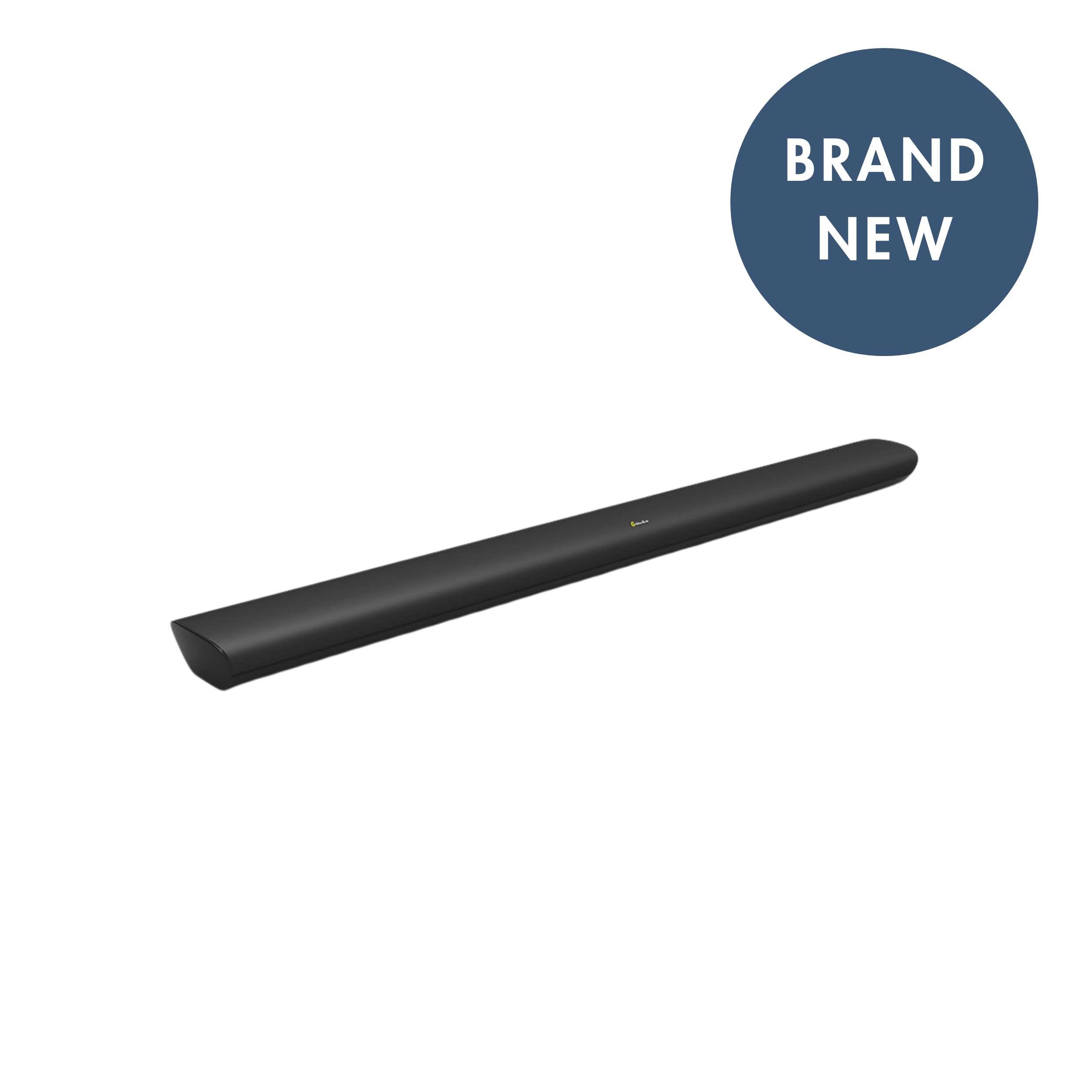

GoldenEar SuperCinema 3D Array X Soundbar

On-Wall/On-Shelf 3-Channel Soundbar

The SuperCinema® 3D Array® soundbars are remarkable loudspeaker systems that combine the elegant form factor of a soundbar with the extraordinary sonic performance of a true discrete-speaker surround system.

GoldenEar Technology has developed a unique technology for our soundbar series that incorporates special 3D image optimization technology to achieve superbly lifelike, wide, deep 3D playback realism with virtually no acoustic coloration.

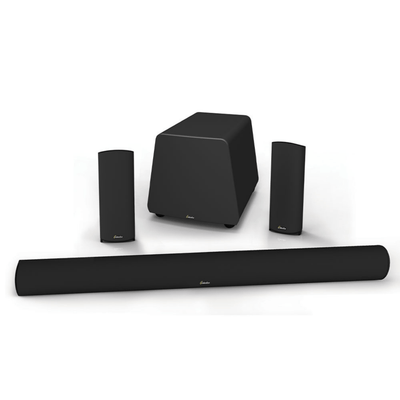

The 3D Array soundbars are designed for use with a powered subwoofer - the GoldenEar ForceField Subwoofers are engineered to be the perfect high-performance match.

Book A Demo     Shop GoldenEar online

Features

  • Frequency Response: 80 Hz - 35 kHz
  • Efficiency: 91 dB
  • Nominal Impedance: Compatible with 8 ohms

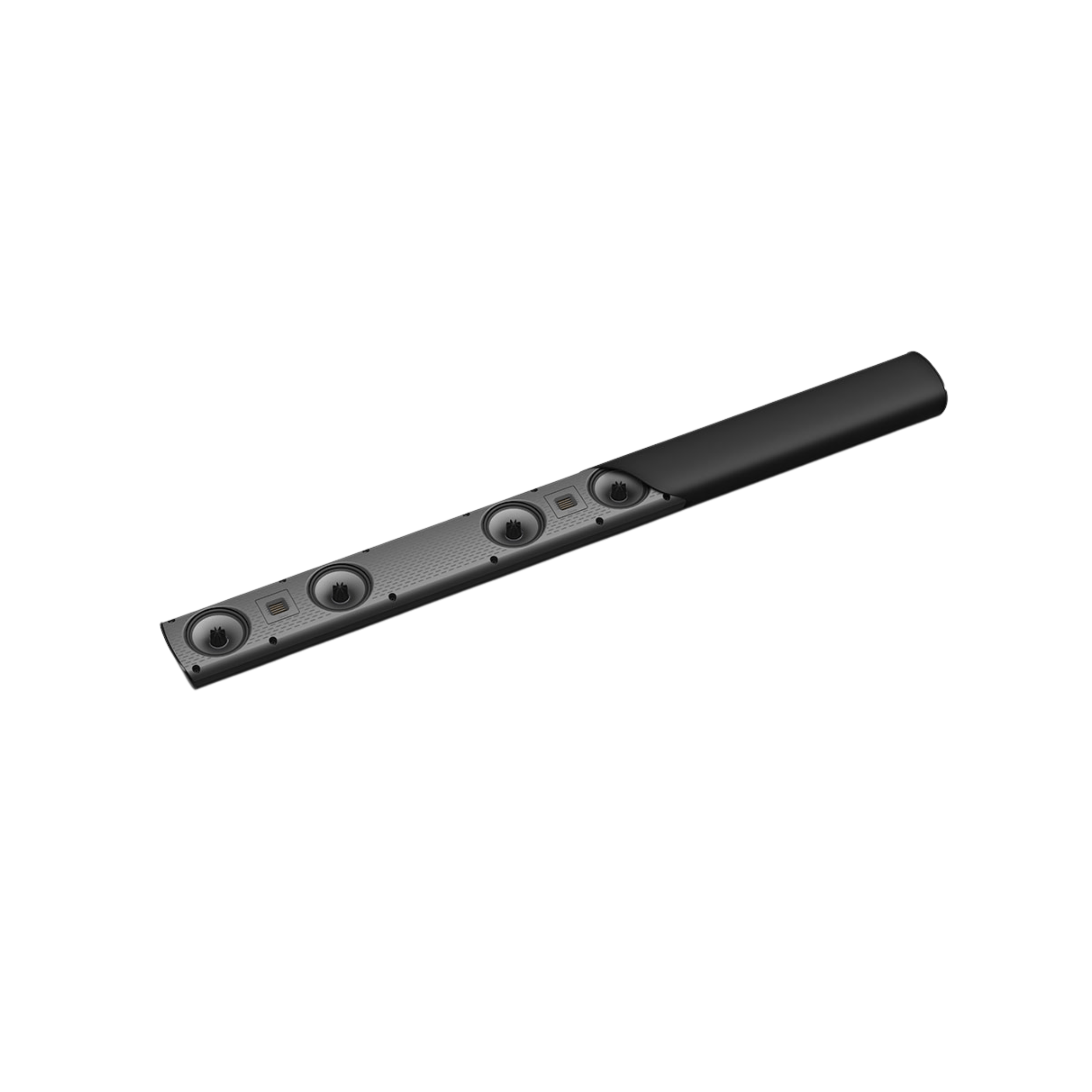

  • Driver Complement:
    • Six - 4-1/2˝ High-Definition Cast-Basket MVPP™ Mid/Bass Drivers
    • Three - HVFR™ High-Velocity Folded Ribbon Tweeters
  • Recommended Amplification: 20-200 watts/channel
  • Dimensions & Weight
    • 124.5 cm x 12.1 cm x 7.2 cm (HWD)
    • 7.8 kg (product) | 10 kg (shipping)

Warranty

Limited Warranty

  • 5 years for speaker drivers and cabinets
  • 3 years for all other electronic components.
The Details

SPECIFICATIONS


WEIGHT
7.8 kg (product) | 10 kg (shipping)

DIMENSION (H X W X D)
124.5 cm x 12.1 cm x 7.2 cm (HWD)






FREQUENCY RESPONSE
80 Hz - 35 kHz

EFFICIENCY
91 dB

NOMINAL IMPEDANCE
Compatible with 8 ohms

DRIVER COMPLEMENT
  • Six - 4-1/2˝ High-Definition Cast-Basket MVPP™ Mid/Bass Drivers
  • Three - HVFR™ High-Velocity Folded Ribbon Tweeters
RECOMMENDED AMPLIFICATION
20 - 200 watt/channel

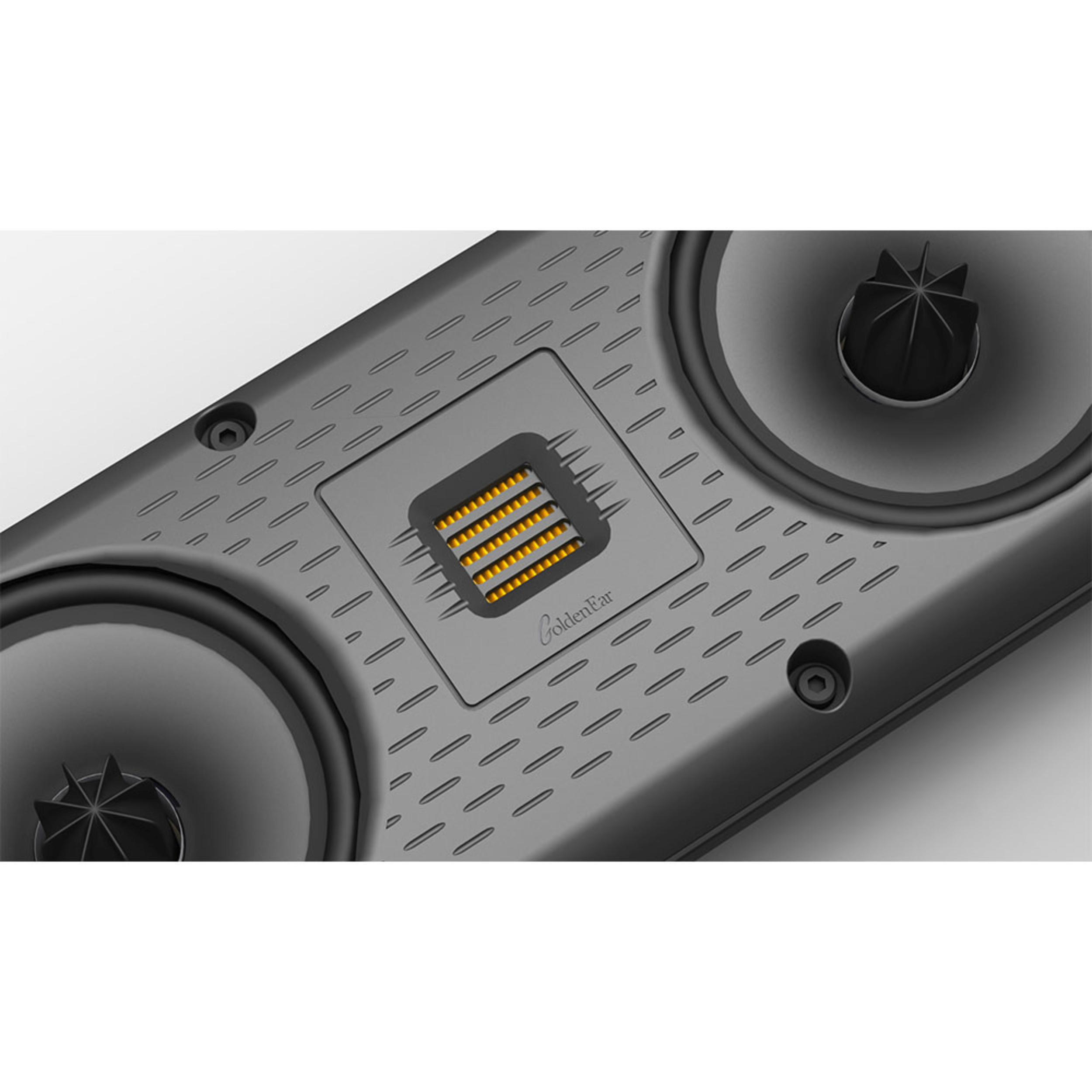

High-Velocity Folded Ribbon Tweeter (HVFR)
  • Tweeter Diaphragm is a High Temperature Film
  • High-Power Neodymium Magnets
  • Squeezes/Pressurizes Air Instead of Pushing It
  • Greater Control, Smoother More Extended Response
  • Vanishingly Low Distortion
  • Dramatically Improved Dynamic Range and Detail
  • Superb Dispersion Characteristics

4.5˝ High-Definition Bass/Midrange Driver
  • GoldenEar Multi-Vaned Phase Plug (MVPP) Design
  • Rigid Free-Flow Cast-Basket Chassis
  • Proprietary Computer Optimized Cone Topology
  • High-Gauss Magnet Assembly
  • 1˝ High-Temperature Kapton Former Voice Coil
  • Extremely Extended Resonant-Free Linear Frequency Response Characteristics
