GoldenEar

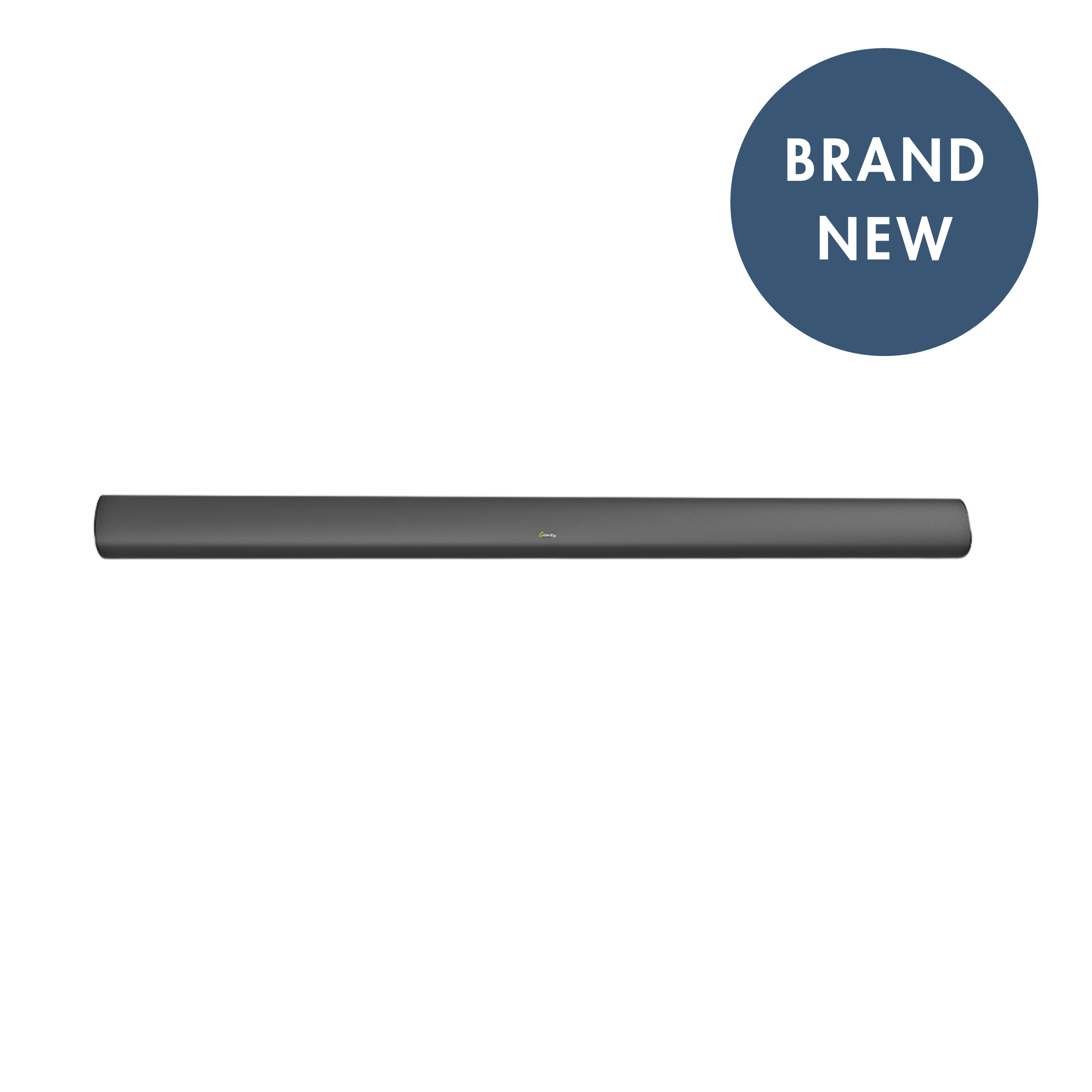

On-Wall/On-Shelf 3-Channel Soundbar

The SuperCinema® 3D Array® soundbars are remarkable loudspeaker systems that combine the elegant form factor of a soundbar with the extraordinary sonic performance of a true discrete-speaker surround system.

GoldenEar Technology has developed a unique technology for our soundbar series that incorporates special 3D image optimization technology to achieve superbly lifelike, wide, deep 3D playback realism with virtually no acoustic coloration.

The 3D Array soundbars are designed for use with a powered subwoofer - the GoldenEar ForceField Subwoofers are engineered to be the perfect high-performance match.

LEARN MORE

Download SuperCinema 3D Array XL Manual

Download 3D Array Soundbars Series Brochure

The 3D Array soundbars are designed for use with a powered subwoofer – the GoldenEar ForceField Subwoofers are engineered to be the perfect high-performance match.

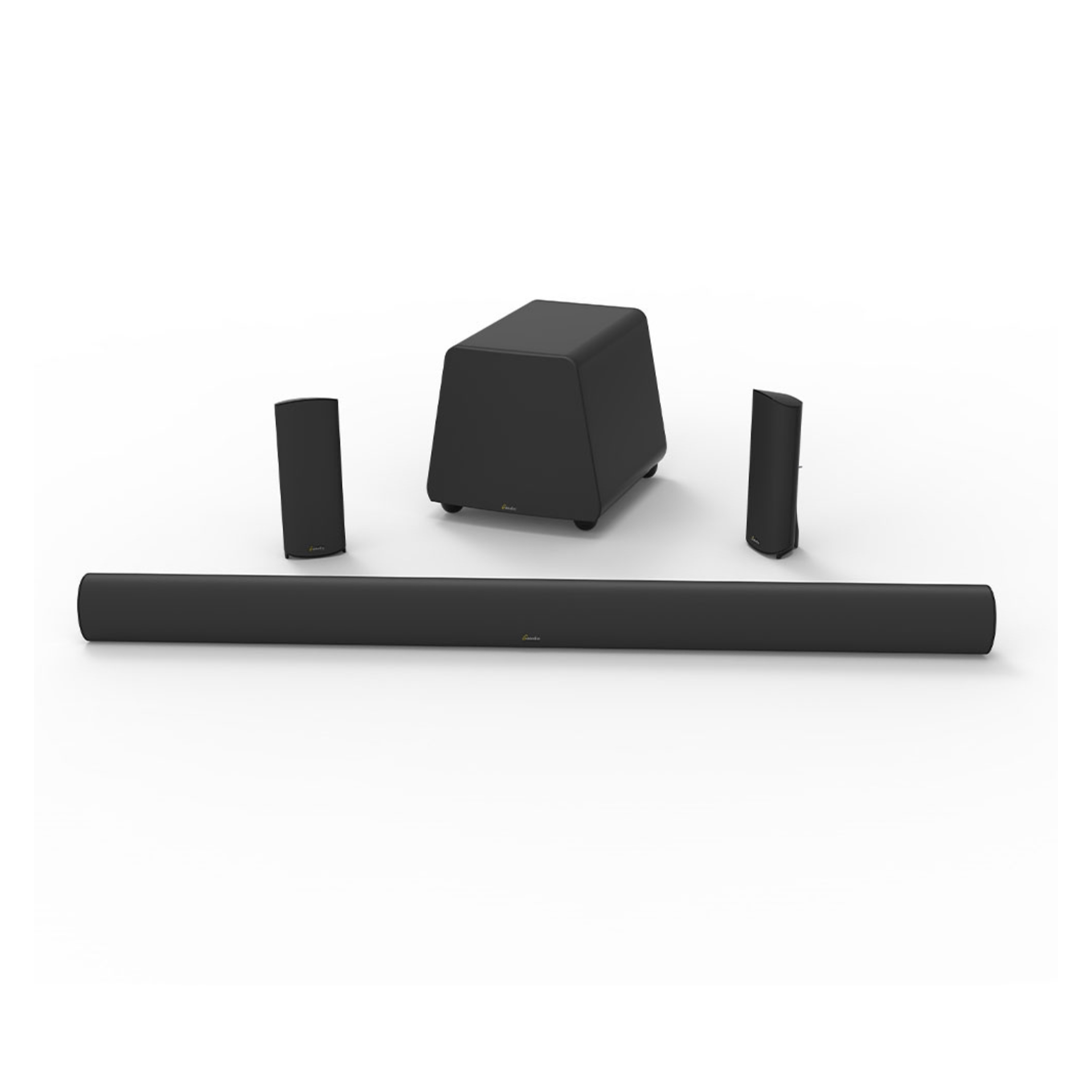

SURROUND SPEAKERS OPTIONAL: Our unique 3D Array soundbar Technology delivers extraordinary surround sound performance with or without rear surround speakers. Excellent and convincing surround sound performance is achieved even without surround speakers, however, when the 3D Arrays are combined with a pair of rear surrounds (like our SuperSat 3s or Invisa In-Ceiling) the result is a mind-boggling true surround-sound experience that rivals discrete six-speaker (or more) systems. In fact, it actually surpasses all but the very best in the ability to dramatically recreate the realism of a live performance or a cinematic event.

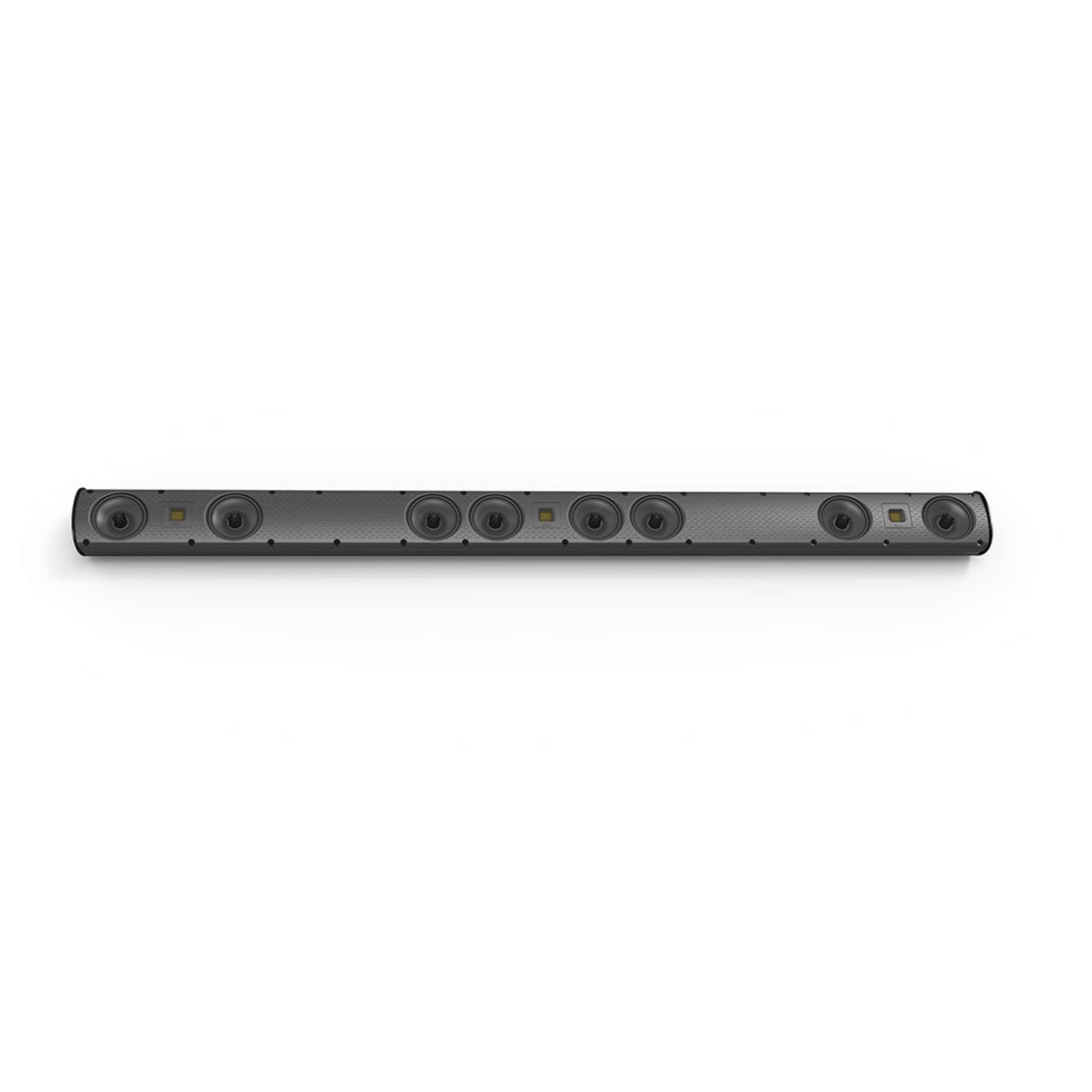

The 3D Array XL soundbars incorporate eight of GoldenEar Technology’s spider-leg cast basket 4.5″ bass-midrange drivers with our unique Multi-Vaned Phase Plugs (MVPP™). In addition, there are three of GoldenEar’s extraordinary High-Velocity Folded Ribbon tweeters (HVFR™). Utilizing our patent pending, Mag-X Coupling™ Crossover Technology, which delivers improved 3D imaging as well as smoother response and greater detail. The 3D Array XL is an ideal match for 65″ and up TVs. The beautiful piano-gloss-black-finished cabinets are aerospace-grade extruded aluminum with marble-powder-infused baffle and end-caps. They can be easily wall-mounted using their keyhole mounts or threaded brass inserts, or shelf-mounted using their adjustable rear supports.

SPECIFICATIONS

Driver Complement
Three High-Velocity Folded Ribbon AMT Tweeter

Eight 4.5" High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Drivers

Efficiency
91 dB 1W/1M @ 4Ω (2.83V/1M)

Frequency Response
80Hz–25kHz typical (-6dB on axis @ 140Hz, anechoic bass response)

Nominal Impedance

Recommended Amplification
20 - 300Wpc

DIMENSIONS

Dimensions
62.1" (157.8cm) W x 4.75" (12.1cm) H x 2.9" (7.2cm) D

Weight
Product: 21lbs (9.5kg); Shipping: 25lbs (11.3kg)
