KEF

Features KEF’s patented Uni-Q driver array

The stylish Ci130QR's thin bezel and narrow rim allow for flawless visual integration into your ceiling. KEF's patented Uni-Q driver spreads sound over a wider area enabling you to use less speakers and still experience an even sound-stage.
Features:
  • UTB™ Ultra Thin Bezel
  • 130mm (5.25in.) Uni-Q driver array
  • 19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide
  • Gold plated spring loaded binding posts

SPECIFICATIONS
Nominal Impedance

8 Ohm

Recommended Amplifier Power

10 - 100W

Sensitivity

87dB (2.83V/ 1m)

Crossover Frequencies

3.8kHz

Frequency Response

45Hz - 34kHz (±6dB) open backed

Drive Units

LF: 130mm (5.25in.)
HF: 19mm (0.75in.)

DIMENSIONS
Product External Dimension (H X W X D)

Diameter : 193.4mm (7.61in.)
Depth : 83mm (3.28in.)

Cut-Out Dimensions (H X W)

Diameter : 158mm (6.22in.)

Mounting Thickness

Ceiling Thickness (Maximum): 33mm (1.3 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)

Mounting Depth From Surface

Product only: 77.8mm (3.06in.)

Optional Rough In Frame

RIF130R

Net Weight

1.35 kg (2.97 lbs)

Unit Measurement

Piece

IN THE BOX

Sold as 1 piece

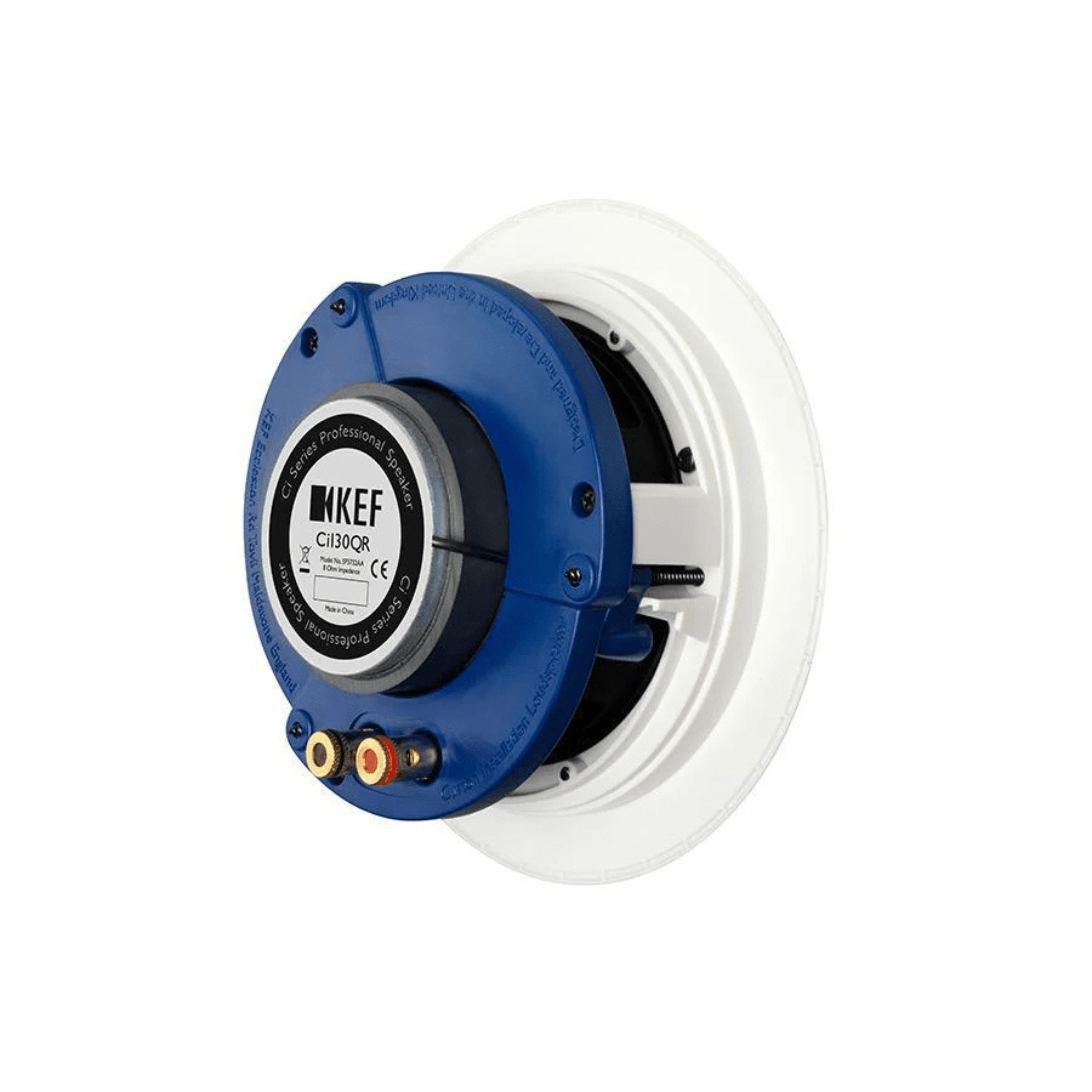

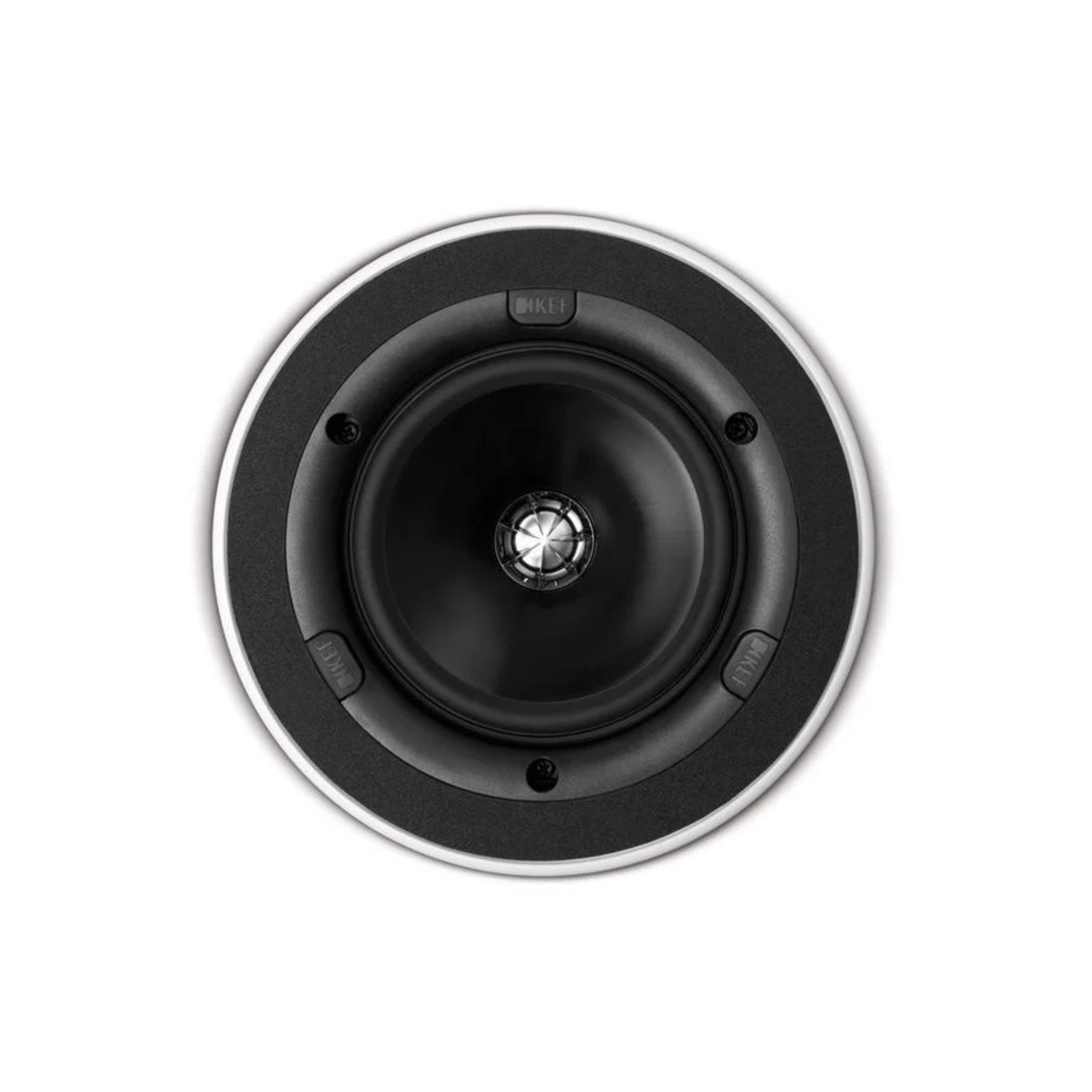

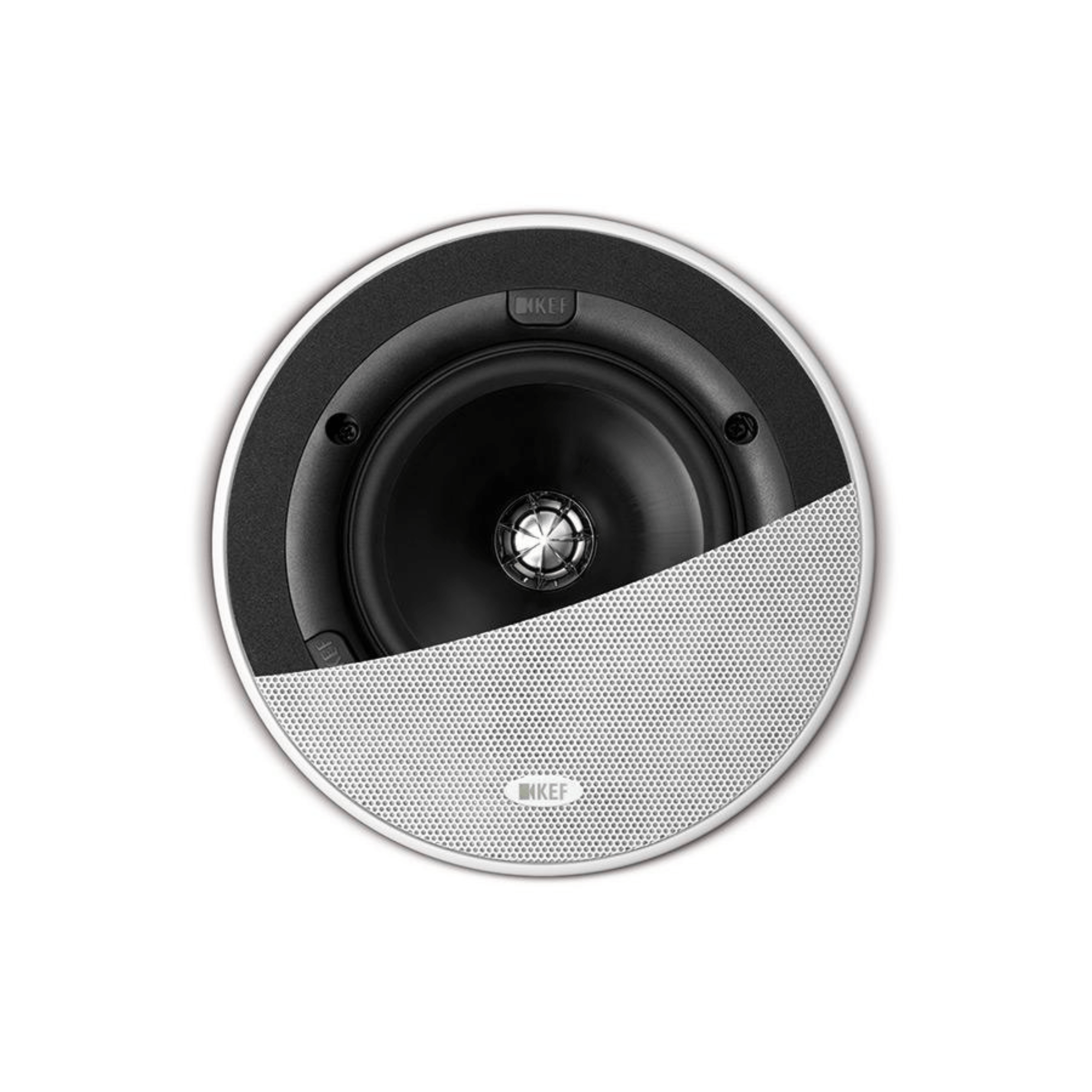

KEF Ci130QR In-Ceiling Architectural Speaker

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.
