KEF

Features KEF’s patented Uni-Q driver array

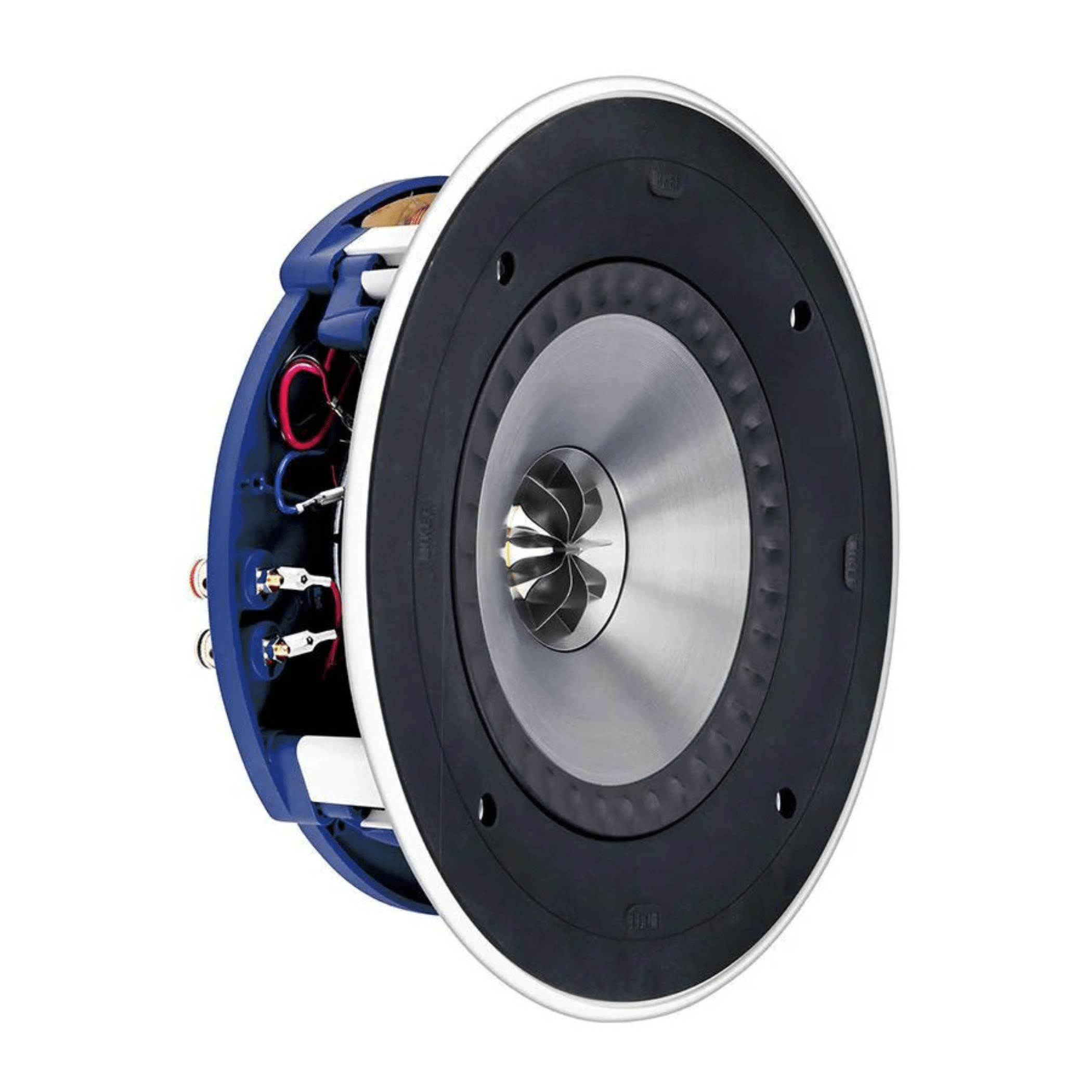

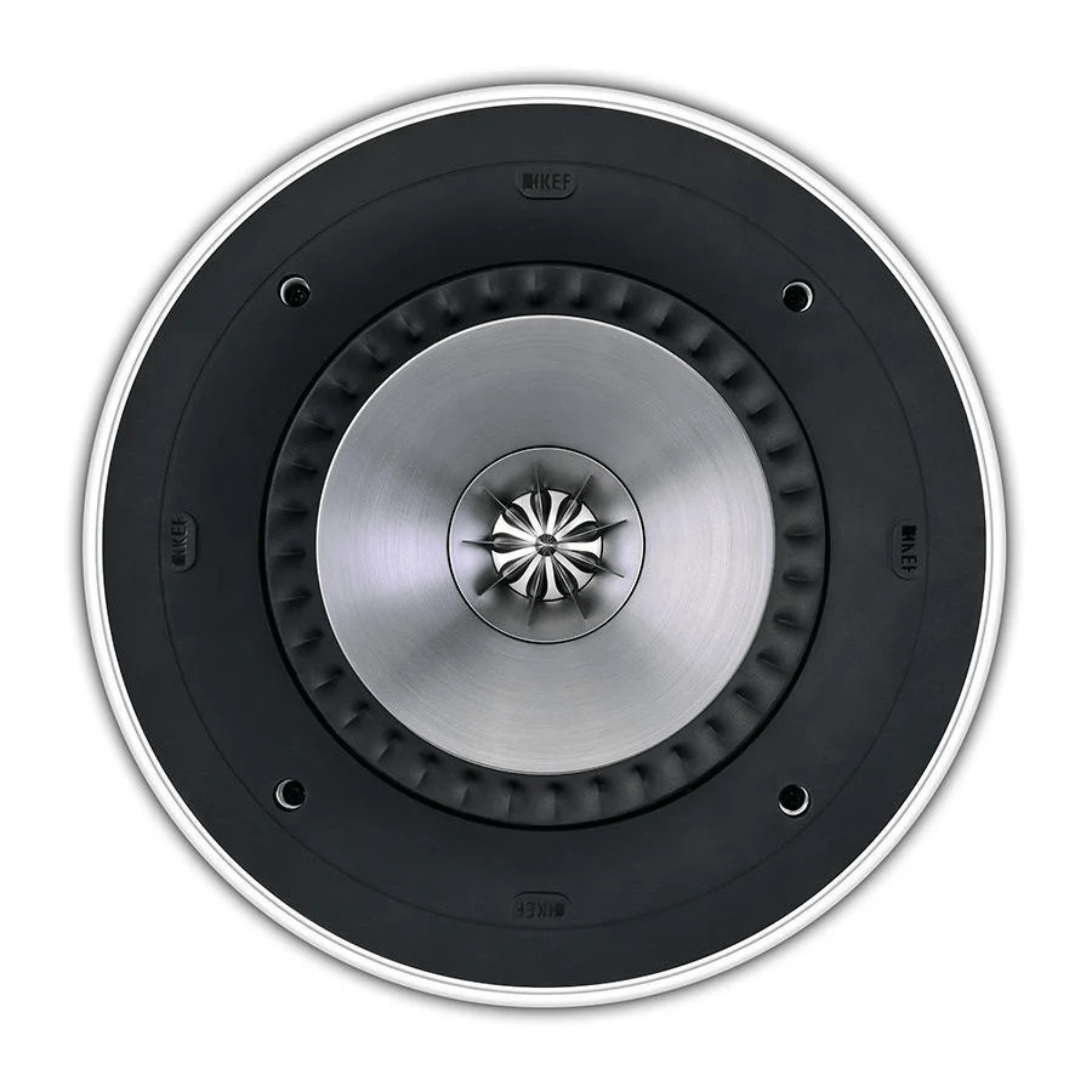

With a 38mm(1.5inch) tweeter voice coil coupled to a vented aluminium dome with tangerine waveguide, and a woofer with absolutely massive magnet and Z-flex surround, the KEF Ci200RR-THX is an in-ceiling LCR capable of delivering a magical musical theatre experience even in the largest of rooms.
SPECIFICATIONS
Nominal Impedance

4 Ohms

Sensitivity

90dB (2.83V/ 1m)

Frequency Response

33Hz - 28kHz (±6dB) open-backed

Crossover Frequencies

2.2kHz

Drive Units

LF: 200mm (8 in.)

HF: 38mm (1.5 in.) Uni-Q

Recommended Amplifier Power

10-190W

DIMENSIONS
Product External Dimension (H X W X D)

290 x 132.6mm (11.42 x 5.22 in.)

Cut-out Dimensions (H X W)

240mm (9.45 in.)

Mounting Thickness

Ceiling Thickness (Maximum): 37mm (1.46 in.)

Ceiling Thickness (Minimum): 6mm (0.24 in.)

Mounting Depth From Surface

126.5 mm (4.98 in.)

Optional Rough in Frame

RIF200R

Net Weight

3.6 kg (7.94 lbs)

Unit Measurement

Piece

IN THE BOX

Sold as 1 piece

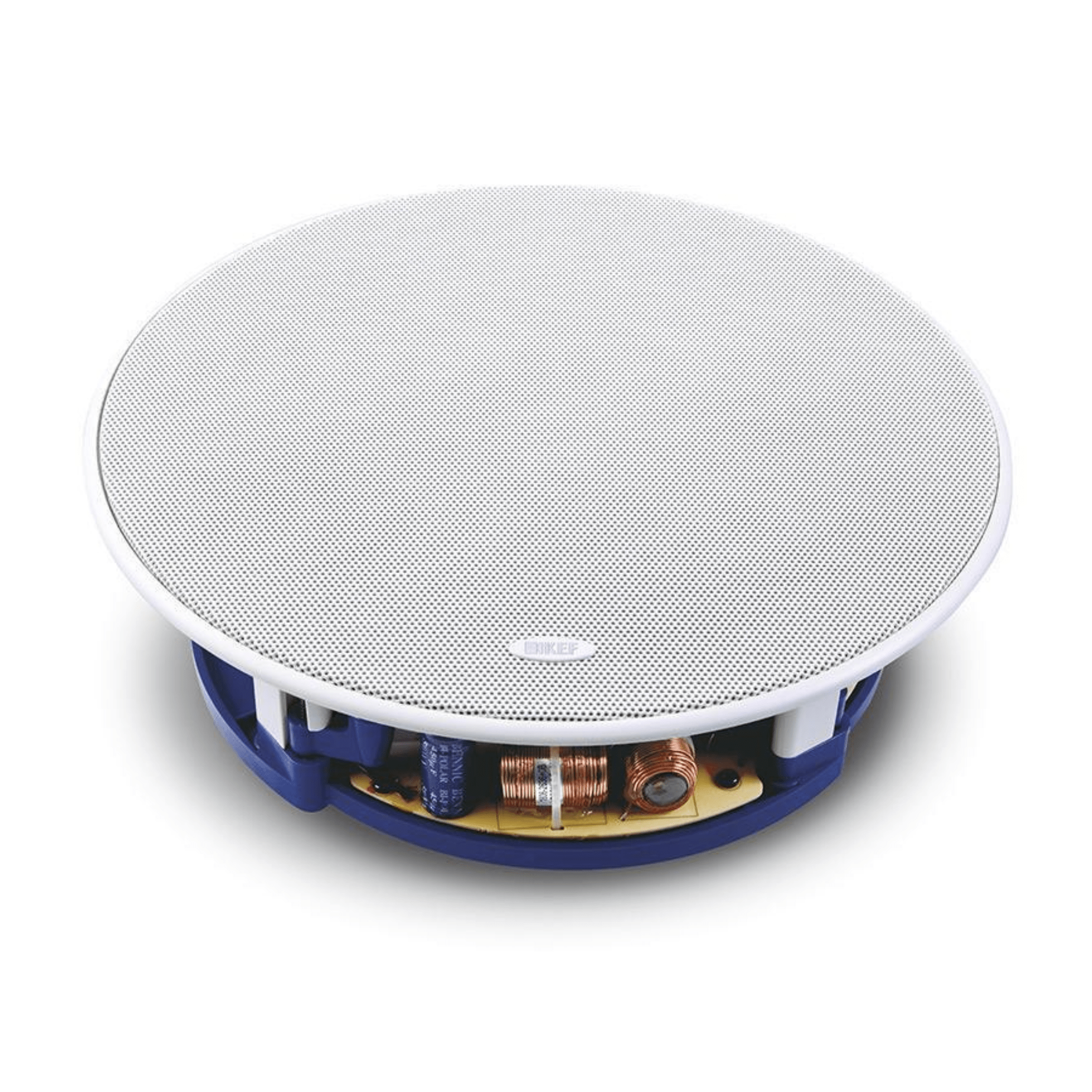

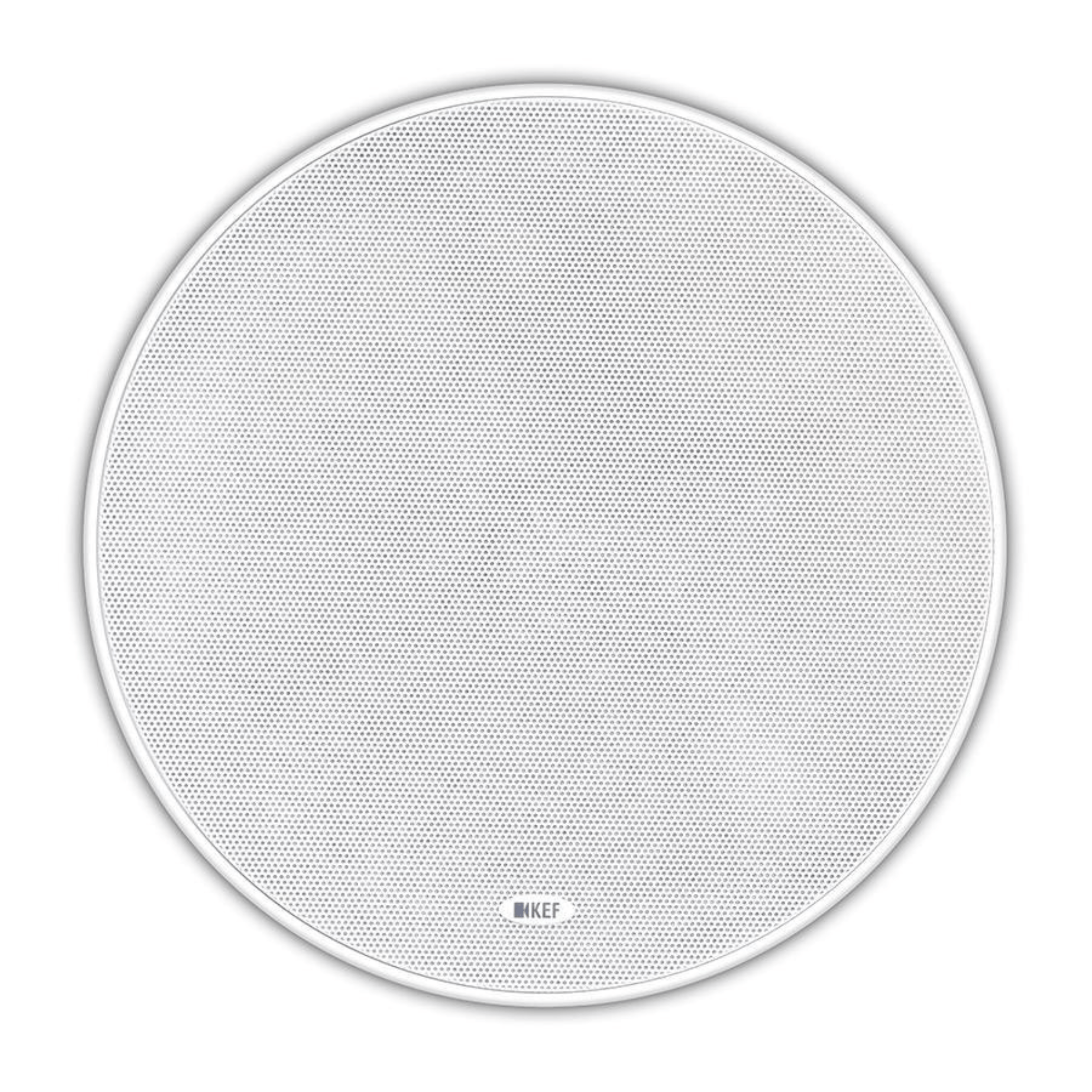

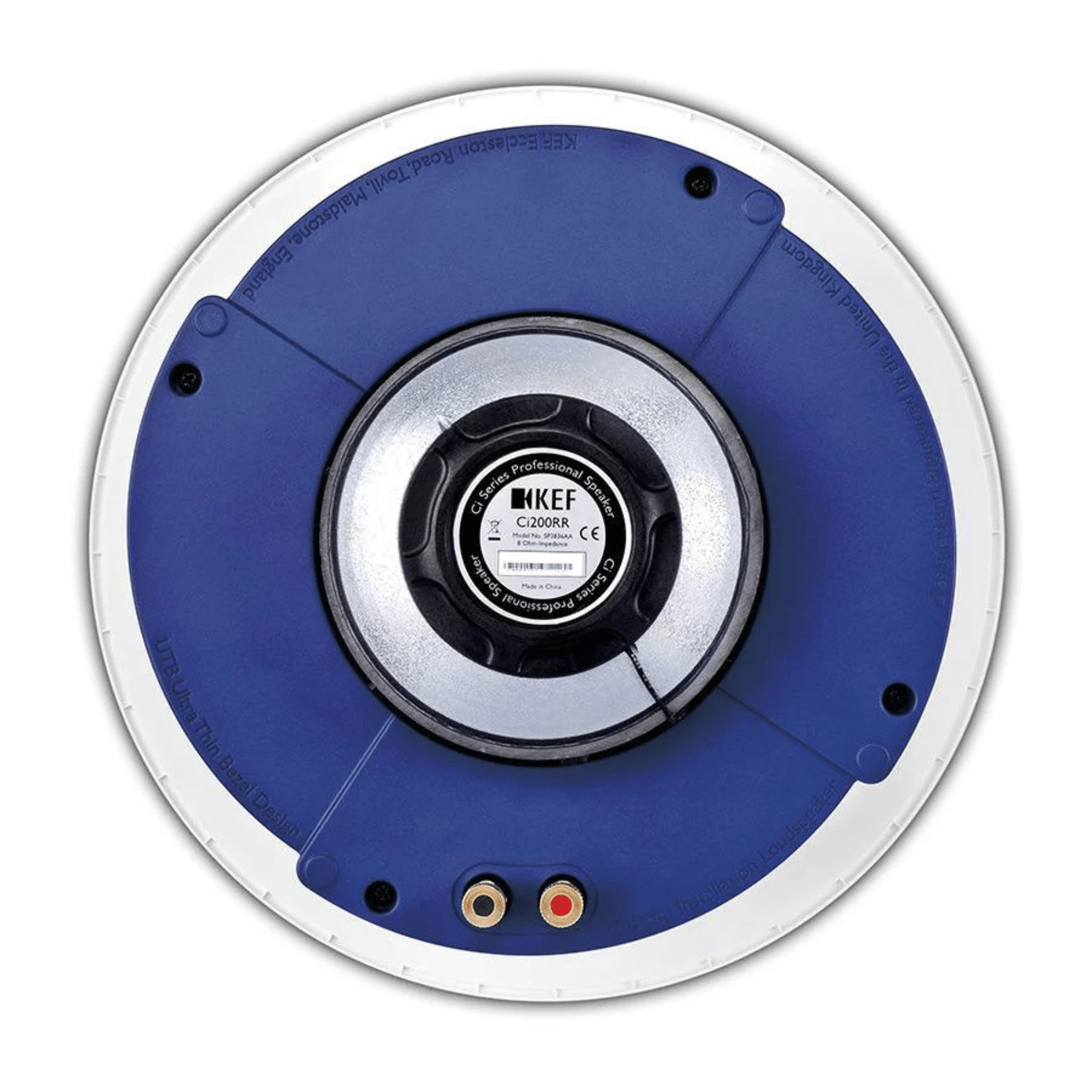

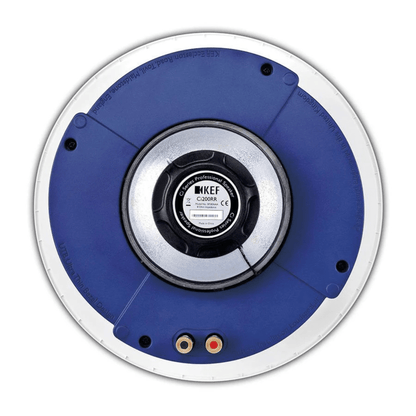

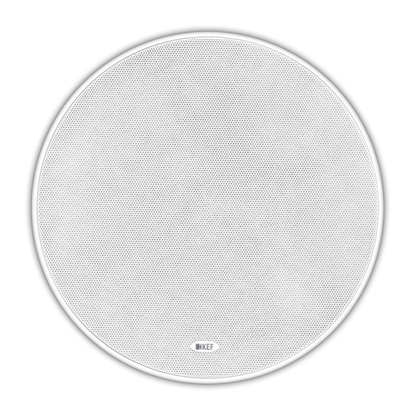

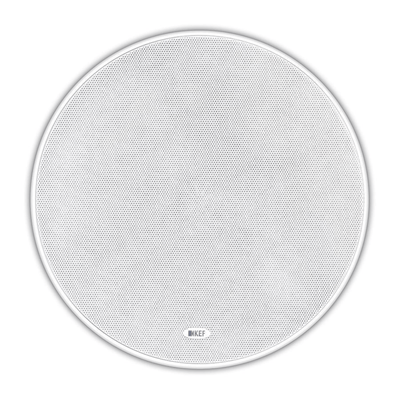

KEF Ci200RR-THX In-Ceiling Architectural Speaker

For the most versatile range in custom installed Extreme Home Theatre, the formidable Ci-R Series has a good portion of acoustic capabilities that derived from KEF's flagship The Reference, together with all the technological innovations that are developed for in-wall and in-ceiling use, making high fidelity sound more accessible for home theatres in different sizes.

With a 38mm(1.5inch) tweeter voice coil coupled to a vented aluminium dome with tangerine waveguide, and a woofer with absolutely massive magnet and Z-flex surround, the KEF Ci200RR-THX is an in-ceiling LCR capable of delivering a magical musical theatre experience even in the largest of rooms.
