KW2: Wireless Connection from XIO Soundbar to any Subwoofer

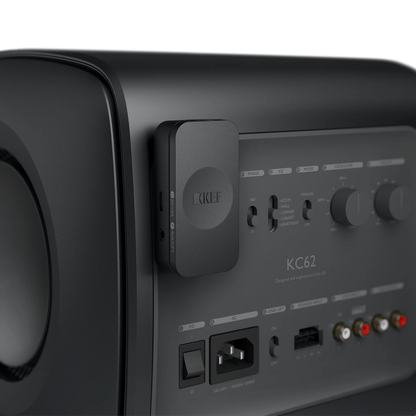

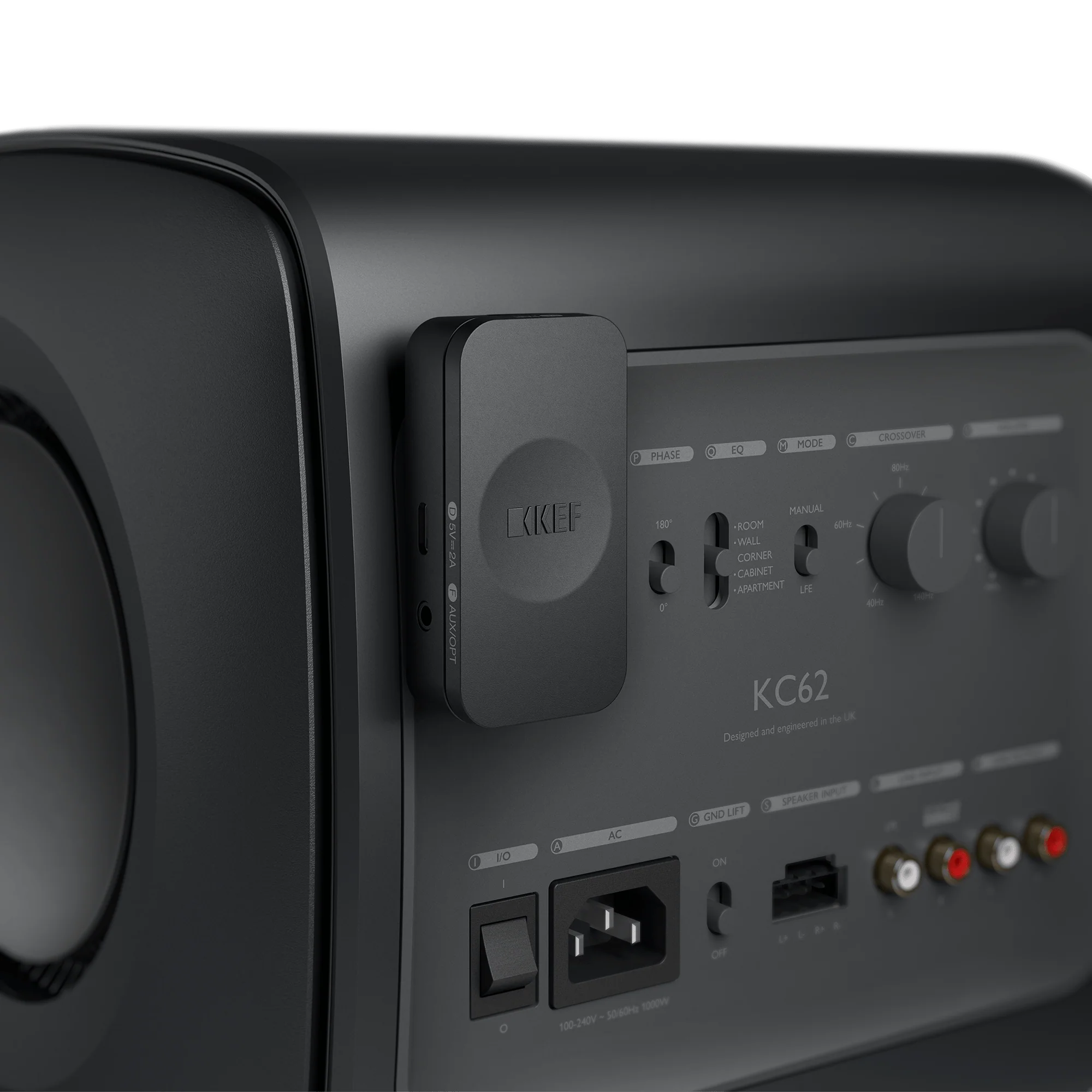

KW2 receives wireless signals from the XIO Soundbar and transmits them to any subwoofer it's connected to. It effortlessly plugs into the back of any active KEF subwoofer, including KC62, KC92 and Kube. Third party subwoofers can be connected via Aux/Optical Combo output.

*KW2 is not compatible with speakers (LSX II LT, LSX II, LS50 Wireless, LS60 Wireless) from the LS Wireless Collection. We recommend the KW1 Adapter Kit for connecting those speakers to  KEF subwoofers.
SPECIFICATIONS
Radio frequency

2.4 GHz

Radio frequency range

2400 MHz – 2483.5 MHz

Maximum radio frequency Power (EIRP)

<10 dBm

Frequency response

20 Hz – 20 kHz

Resolution

24bit/48KHz

Signal-to-noise-ratio

>80 dB

Maximum line of sight distance

15m from XIO

Latency

57 ms

Total harmonic distortion

<0.2 %

Input

USB Type-C (5V 2A)

Outputs

Proprietary analogue
3.5 mm analogue
TOSLINK Optical

LEARN MORE
IN THE BOX

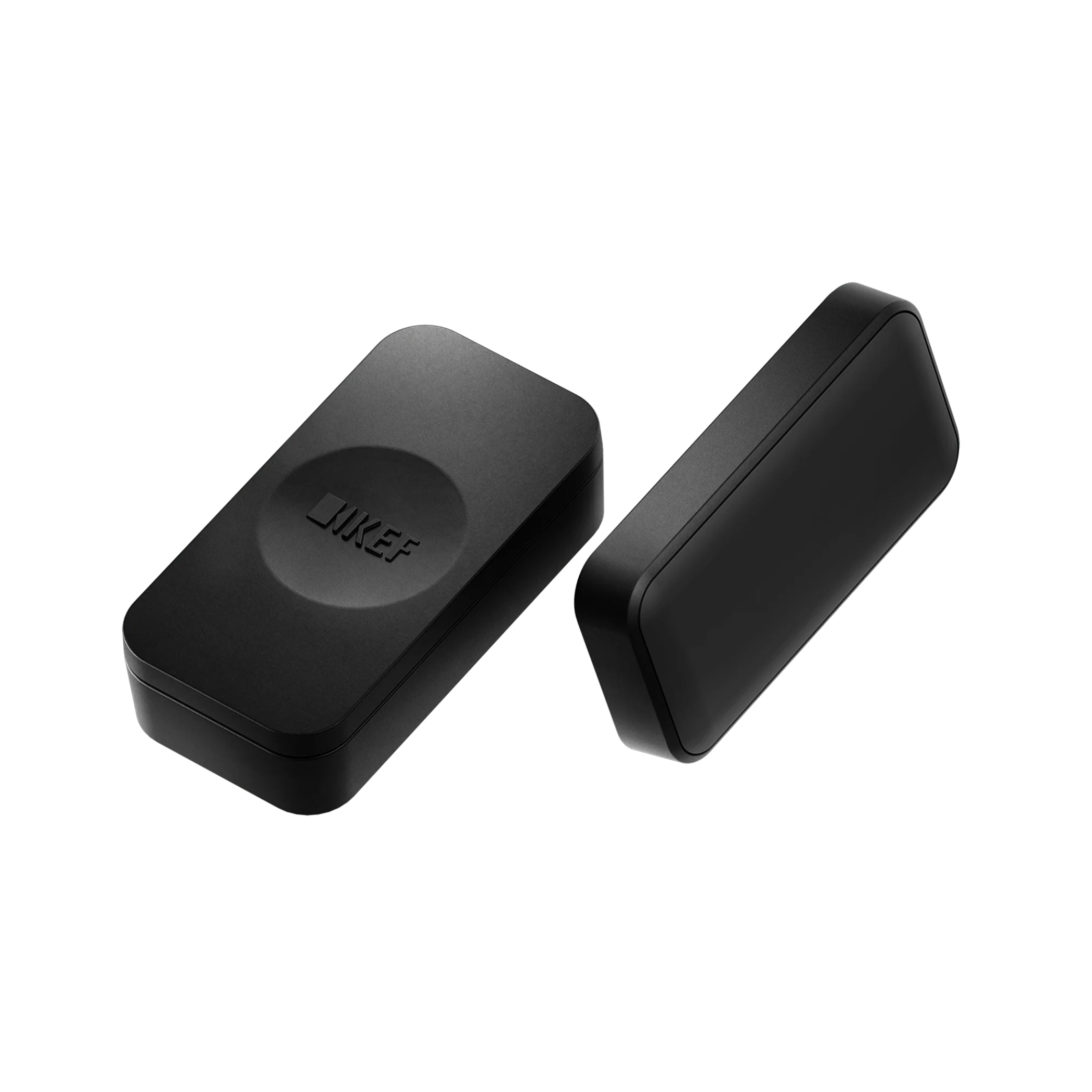

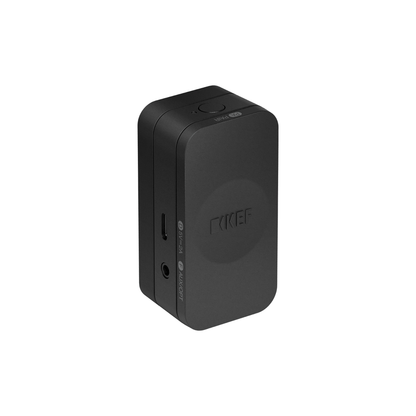

  • KW2 RX Receiver
  • USB-C Power Cable
  • Optical Cable
  • 3.5mm Aux to RCA Cable
  • Screw Sets
  • Quick Start Guide

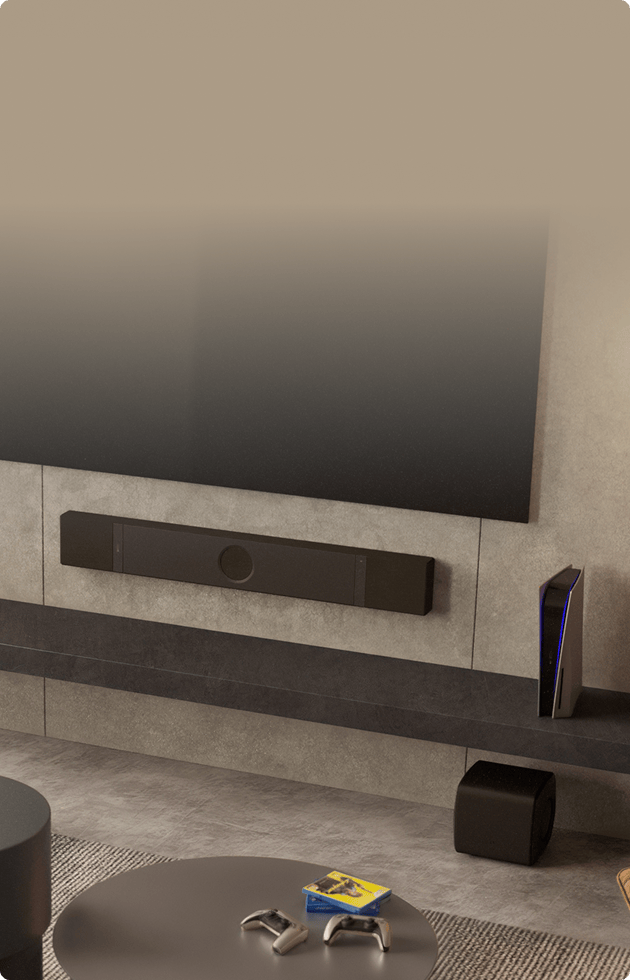

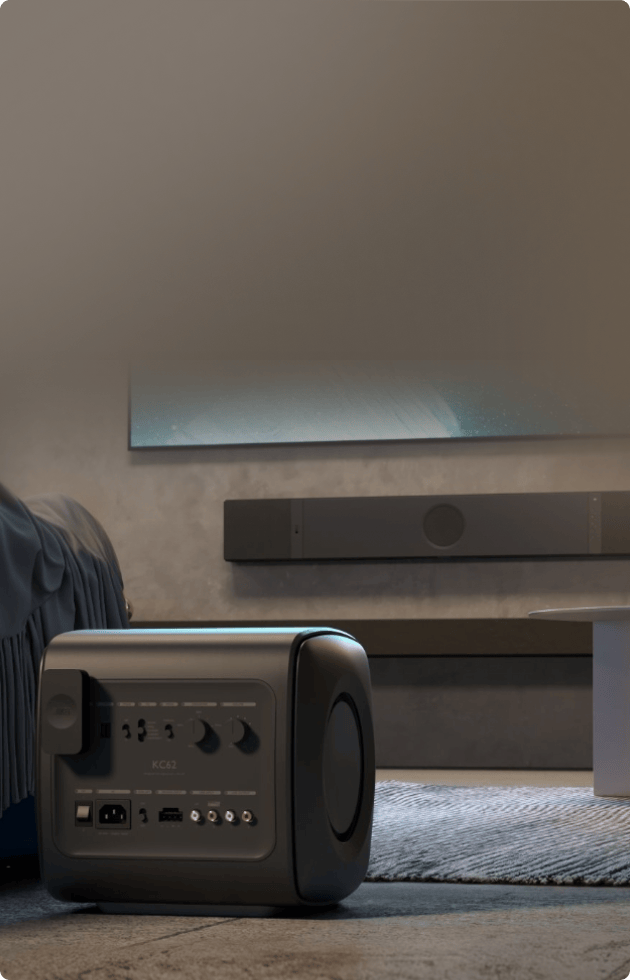

Flexible Subwoofer Placement

KW2 allows you to wirelessly connect the XIO Soundbar with a KEF subwoofer. It allows subwoofers to be optimally placed in the room without being limited by cables.

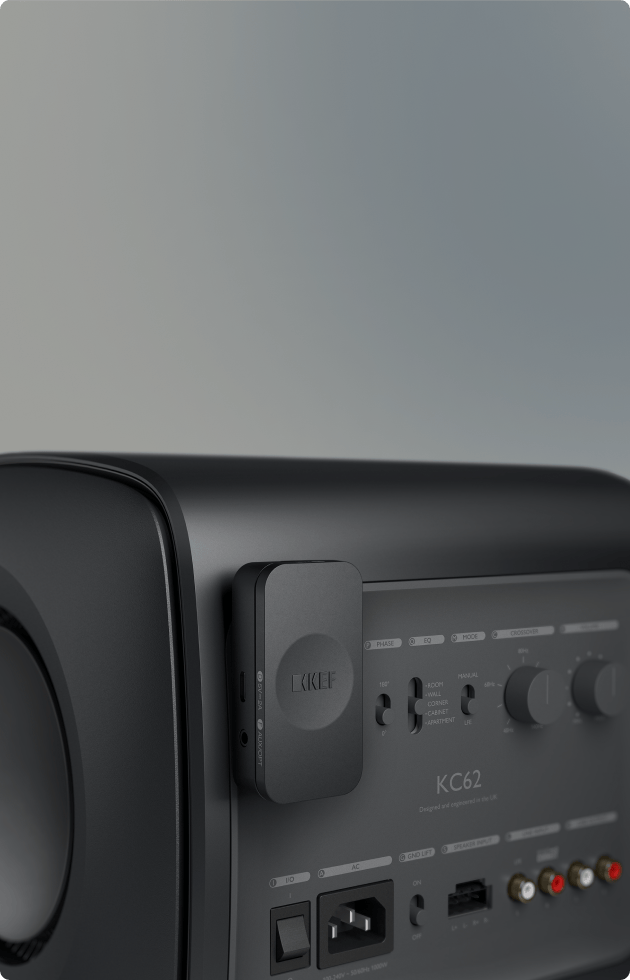

Wireless Connection with KEF Subwoofers

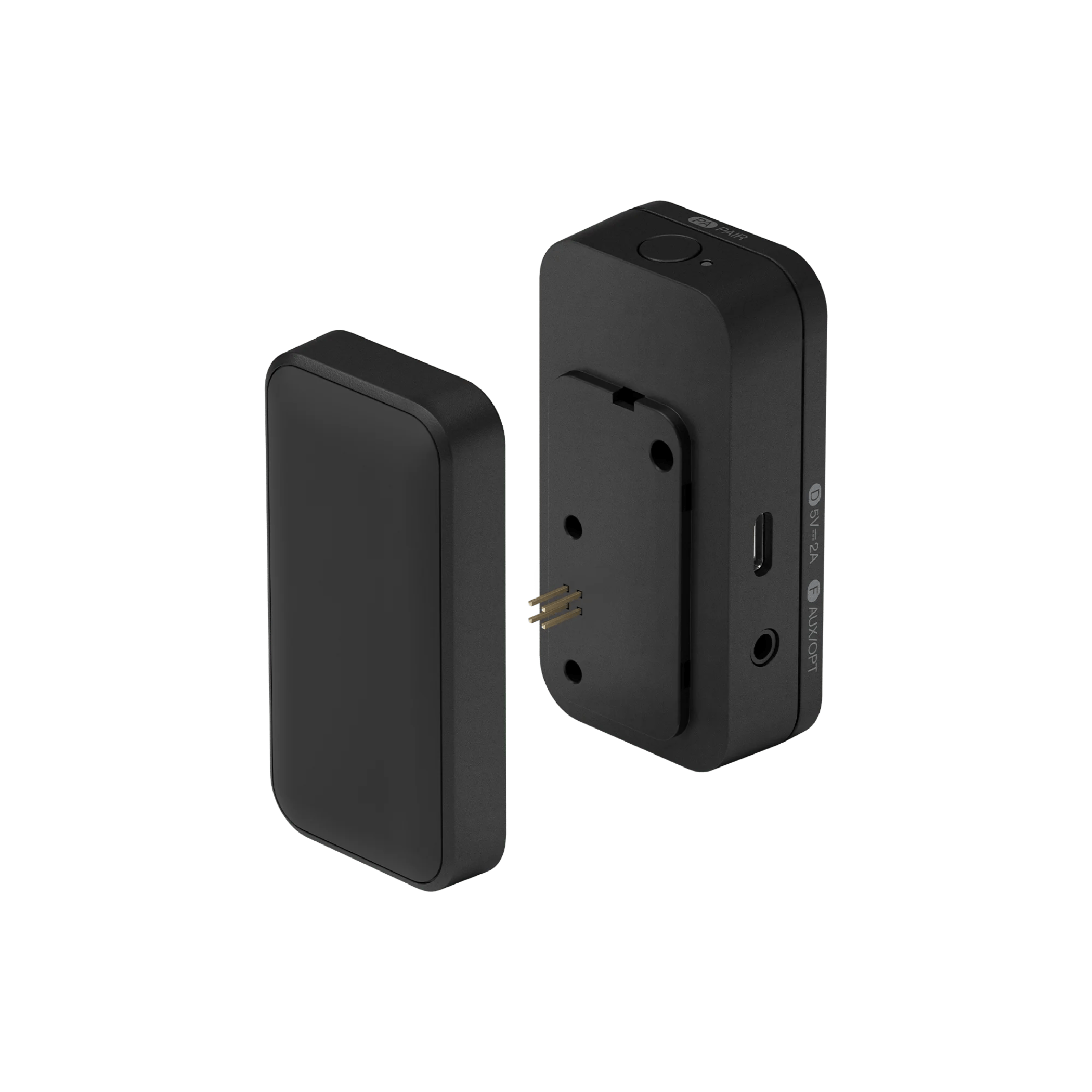

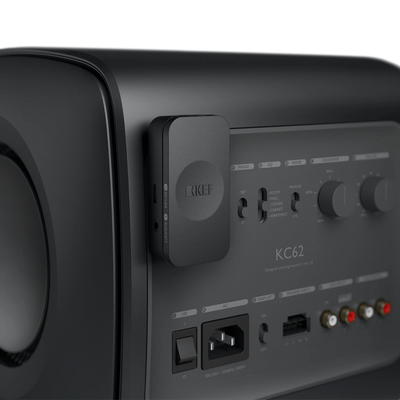

Four connector pins ensure uninterrupted transmission from the XIO Soundbar to the subwoofer without the need for any cables. KW2 works seamlessly with KC62, KC92, KF92, and Kube subwoofers, enhancing your sound system with flawless connectivity.

Aux/Optical Combo Output

KW2 also caters for pairing XIO with third-party subwoofers. Simply plug the receiver into a power supply using a USB-C cable and connect it to any subwoofer via the Aux/Optical Combo output on the side. Use the included cover to conceal the exposed pins.
