$1,849.00 SGD
Separate subwoofer cable required

Please note that MartinLogan subwoofers do not come with a subwoofer cable. Customers will have to purchase a subwoofer cable separately or the MartinLogan WSK-1 Wireless Subwoofer Adaptor Kit.

Color
Color: Gloss Black

Pickup available at ATLAS WAREHOUSE @ Harper

Usually ready in 24 hours
Listen to MartinLogan In-store

Book a demo at ATLAS @ Harper

Free 1-3 Day Delivery

Get free local delivery within 1-3 working days on orders S$300 and above.

Orders are processed and delivered Monday-Friday (excluding PH).

0% Interest Instalments

Pay with Atome to enjoy up to 3-month interest-free instalment when you shop online.

Choose interest-free instalment plans over 6-12 months with participating credit cards when you pay in-store. View our store locations here.

Warranty

All MartinLogan purchases are covered manufacturer's warranty for faulty material and/or workmanship:

  • 5 Years – Floorstanding, bookshelf, and on-wall speakers;
  • 5 Years – On-wall, in-wall, and in-ceiling speakers;
  • 3 Years – Powered subwoofers;
  • 3 Years – Separate power amplifiers (non-wireless);
  • 2 Years – Soundbars, power amplifiers (wireless), pre-amplifiers (wireless), and fully powered speakers

For more information, read more here.

MartinLogan

Supercharged Performance. Miniaturised Size.

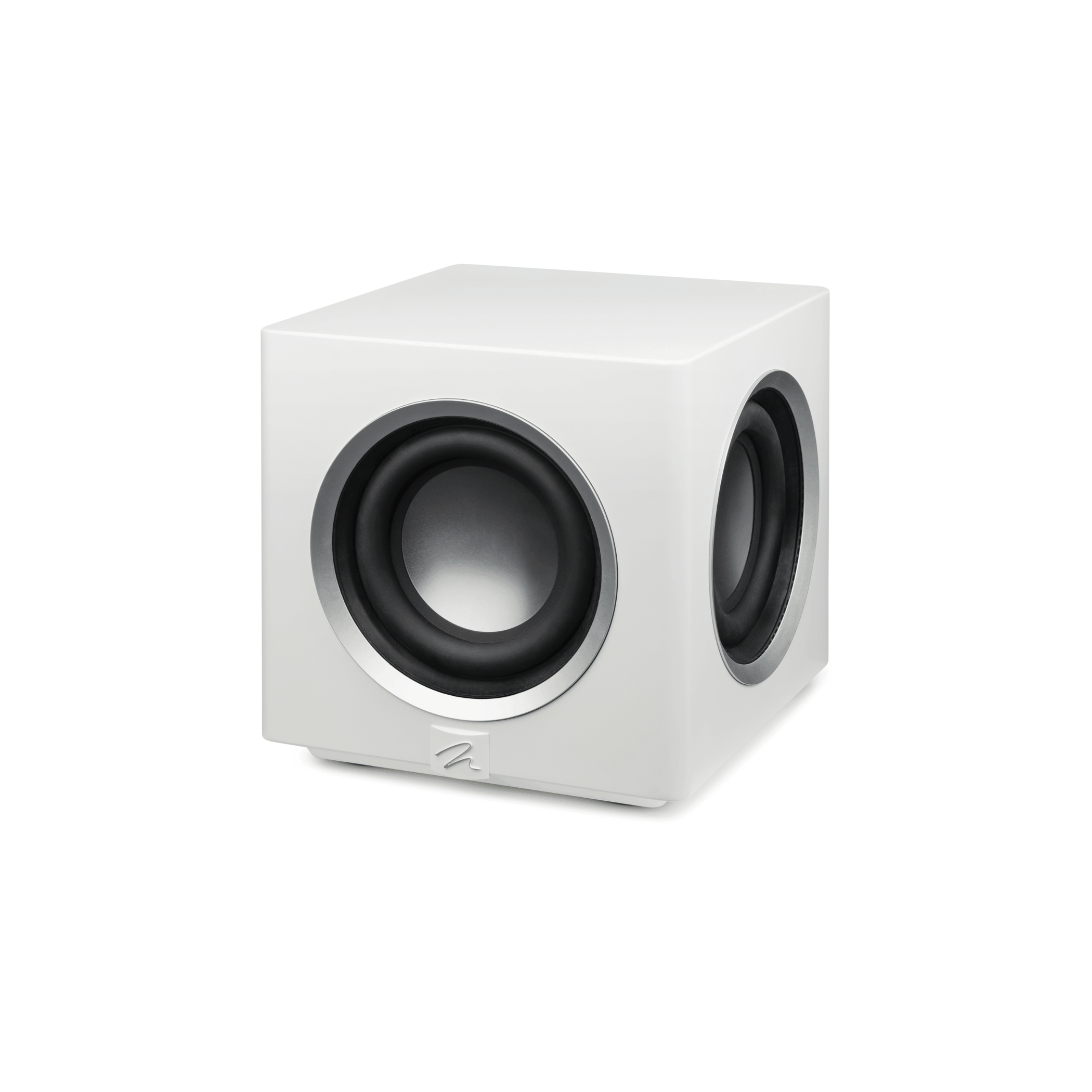

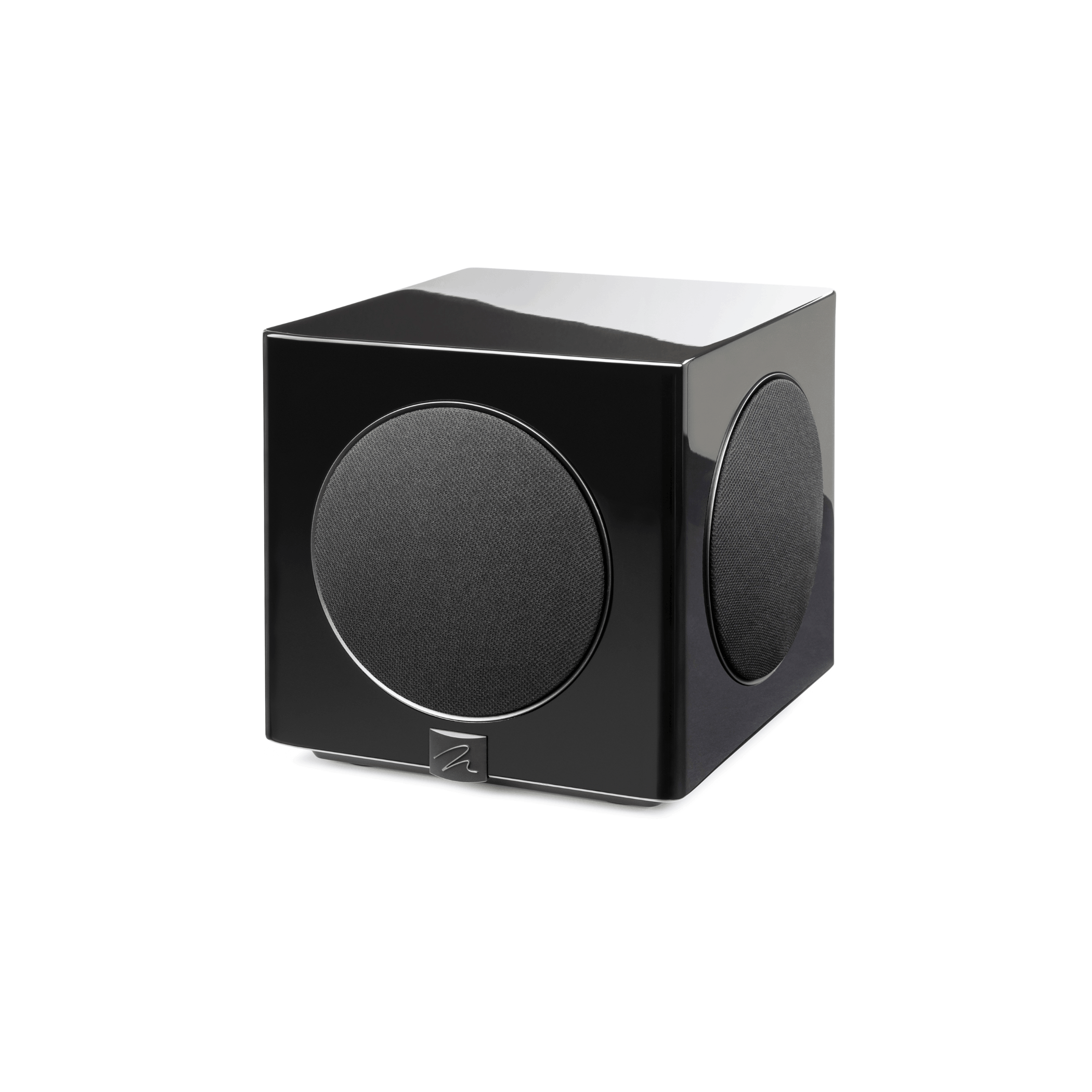

Abyss 8 is one of the smallest, most compact subwoofers that MartinLogan has ever built, but don't let its small footprint fool you. It is capable of bass completely unexpected from its ultra-compact size.

The key to its deceptively strong, yet detailed sound is its Hybrid Woofer System which utilises a pair of 8" passive radiators to bolster its active 8" woofer. This woofer system is driven by powerful amplification, and a precision DSP engine, all contained inside a beautiful, yet robust, 1" thick cabinet.

To complement the impressive power and musicality of Abyss 8, MartinLogan engineers included an array of connectivity options ranging from XLR to the built-in wireless option. Abyss 8 also features MartinLogan's powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC®) system.

LEARN MORE

Datasheet

Manual

SPECIFICATIONS
Digital Signal Processing

Ultra High-Resolution 500MHz Vojtko DSP Engine with 65t processing

Frequency Response

23-120 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer

Triple 8" (20.3cm) Hybrid Woofer System consisting of a single high-excursion, anodised-aluminium cone in a stamped steel basket with dual anodised-aluminium passive radiators

Cabinet

Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF structure with reinforced woofer baffles and center brace

Amplifier

Magnitude MT-1kW Amplifier with 1,000W peak (500W continuous)

Controls (Backplate)

Level: Interactive LED Backlit Knob
Tone Sweep: Sweep Start and Pause (with status light)
Power Mode: On, 12v Trigger, Auto
Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)

Controls (via Bluetooth)

Level: -40 to 12dB (Min-Max)
Low-Pass Filter (Frequency): 35–120Hz (1° Increments)
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Movie, Music, Night
20–30Hz Level: ±10dB
Anthem Room Correction (ARC Genesis): On, Off
Tone Sweep (120-20Hz): On, Off, Pause (Frequency)

Wireless Inputs

Integrated Wireless Receiver, Wireless Transmitter Included

Inputs

Line Level: Left, Right, and LFEXLR: LFE
Speaker Level: Left and Right (requires banana plugs)

Power Draw

Max: 500W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined

Feet

Integrated Anti-Vibration Feet (carpet spikes included)

ARC SOFTWARE

To run Anthem Room Correction (ARC) with your speakers you will need to purchase a PBK or ARC Kit:

Advanced ARC Calibration Kit

ARC Calibration Microphone Kit

PBK - Perfect Bass Kit

(Please note that MartinLogan Perfect Bass Kit (PBK) microphones are fully compatible with Anthem Room Correction for MartinLogan speakers).

To download the most up-to-date version of ARC, please click the link below to go directly to Anthem's website.

Get the Latest ARC Software

System Requirements

ARC Genesis requires an ARC or PBK Microphone, a Mac OS X (10.12+) or Windows (7/8/8.1/10/11) computer, and an ARC or PBK compatible audio product. One USB port is required. If you are using a laptop computer, check power settings and battery meter before starting to ensure the procedure is not interrupted.

DIMENSIONS
Weight

46.7 lbs (21.2 kg)

Dimensions (H x W x D)

13.5" x 13.2" x 13.2" (34.3cm x 33.5cm x 33.5cm)

Seamlessly Integrating High-Performance Audio with Elegant Design

Emphasizing high performance and decor-friendly aesthetics, MartinLogan subwoofers expertly blend audiophile musicality and theatricality with dynamic output and accuracy in a compact design. As with all MartinLogan subwoofers, the Abyss Series is designed to work with any speaker system while being uniquely engineered to keep pace with the exotic thin-film technologies utilized in MartinLogan loudspeakers.

Hybrid Woofer System – The Ultimate Compact Powerhouse

Abyss 8 is no ordinary 8” subwoofer. Featuring a unique 8” Hybrid Woofer System, Abyss 8 combines an active 8” aluminium woofer with two 8” aluminium passive radiators. This innovative design offers the enhanced output of a ported subwoofer while maintaining the compact size and tight bass associated with sealed subwoofers. Enjoy the best of both worlds without compromises like larger cabinets or port noise. Abyss 8’s custom-designed aluminium woofers are engineered for peak performance using advanced Klippel analysis. The lightweight, high-strength, and excellent heat dissipation properties of aluminium make it ideal for delivering clean, powerful bass in such an ultra-compact design.

Magnitude® MT-1kW Amplifier

The small but mighty Abyss 8’s Hybrid Woofer System is capable of handling a large amount of power. MartinLogan’s advanced Magnitude MT-1kW amplifier delivers up to 1000W peak (500W RMS) of clean power, ensuring incredible impact and seamless musicality. Magnitude amplifiers are designed to deliver their power reserves with ultra-low distortion to ensure maximum fidelity along with high output capability. Guaranteeing exceptional control over its long-throw 8” Hybrid Woofer System, the MT-1kW amplifier helps Abyss 8 provide an immersive audio experience from an ultra-compact subwoofer.

Advanced Vojtko DSP Engine: Elevating Subwoofer Performance

Abyss subwoofers utilize the cutting-edge, ultra-high-resolution Vojtko DSP engine, named after MartinLogan’s Chief Audio Technologist. Featuring a best-in-class 500MHz DSP with 64-bit processing, the Vojtko DSP engine is the maestro that commands all aspects of subwoofer performance in real-time. This level of computing power allows MartinLogan engineers to fine-tune performance for maximum output and fidelity with complete audible transparency as well as enabling advanced features like wireless app control, integrated wireless signal connection, and other advanced DSP functions. Thanks to the computational power of this sophisticated DSP engine, Abyss subwoofers are also compatible with the award-winning Anthem Room Correction (ARC®) system.

Built-In Wireless Capability

Although correct placement plays a key role in optimizing subwoofer performance, getting a cable where you need it can be challenging. For ultimate convenience, our Abyss subwoofers come with a built-in Wireless Receiver and Wireless Transmitter, making it easier than ever to eliminate cable clutter. With lossless transmission and low latency, even the most discerning enthusiast will be thrilled with the results.

Sound Structure

The cabinet plays a critical role in the sound quality of a speaker. Abyss subwoofer cabinets are made of 1” thick MDF (Medium Density Fiberboard) with additional reinforcement on the woofer baffles and a central brace. This solid construction provides a more stable platform for the high performance woofer to play from, resulting in cleaner, more articulate bass.

Robust Connectivity

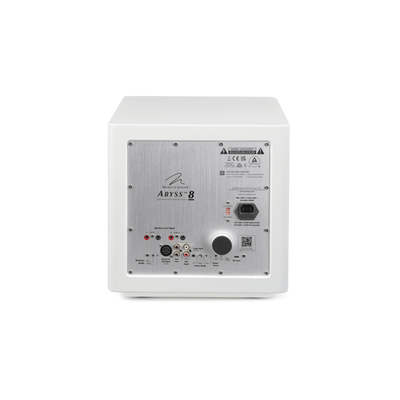

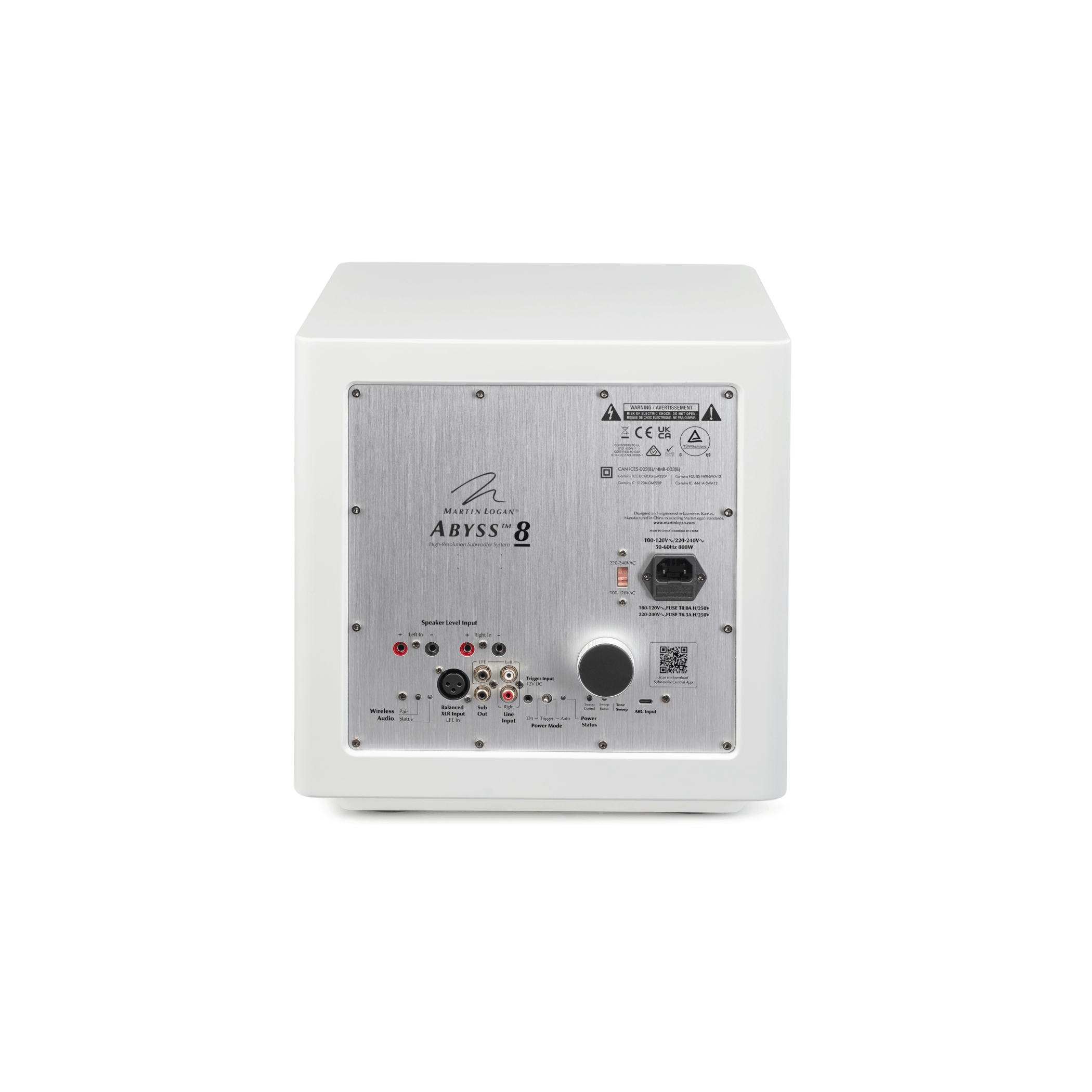

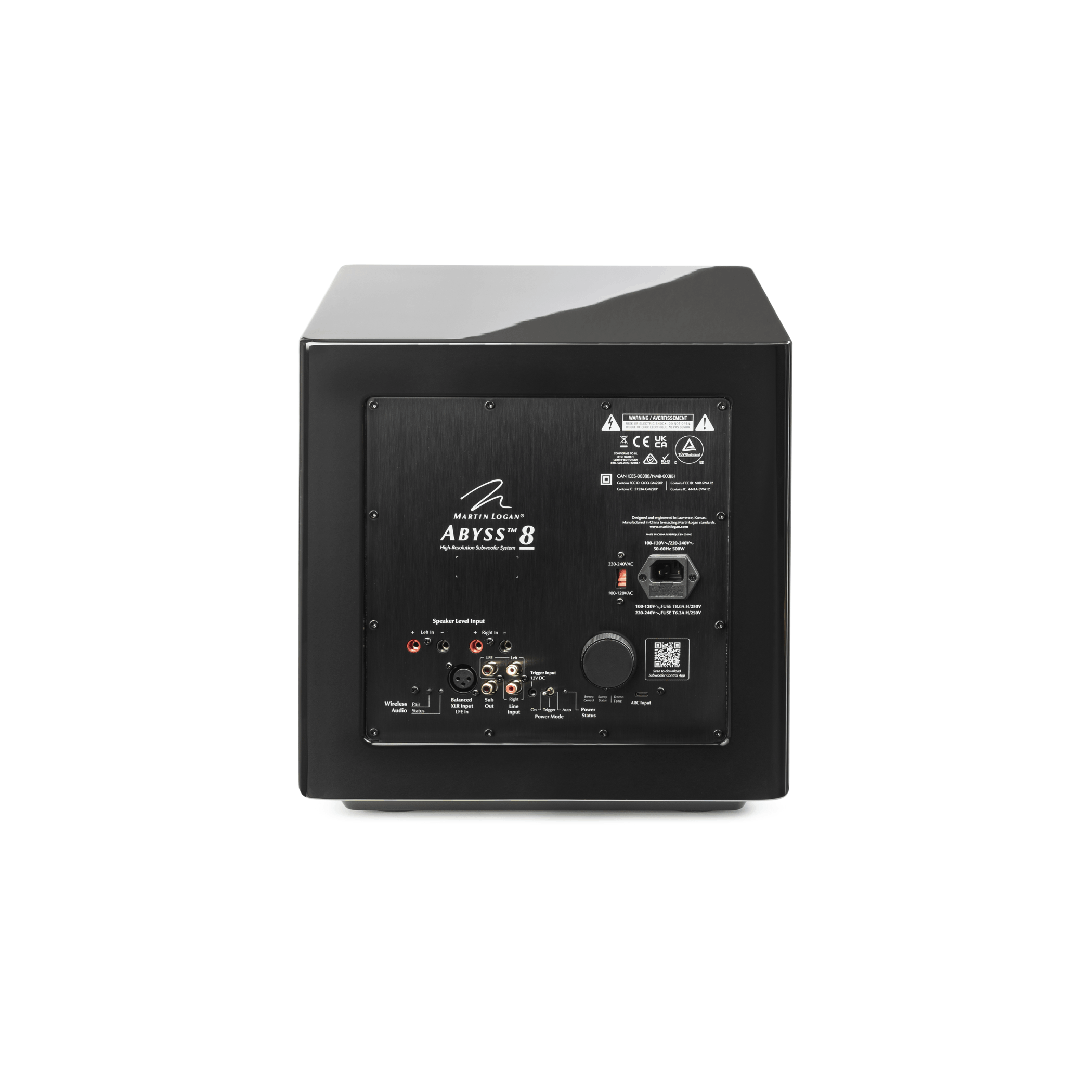

In addition to the built-in wireless connection option, Abyss 8 offers incredible wired installation flexibility. With both RCA and XLR LFE inputs, Stereo RCA inputs, Speaker Level inputs, and Sub Out connections, Abyss 8 can be easily integrated into even the most complex systems. Simultaneous connections are also supported.

Reduced Vibration, Enhanced Bass

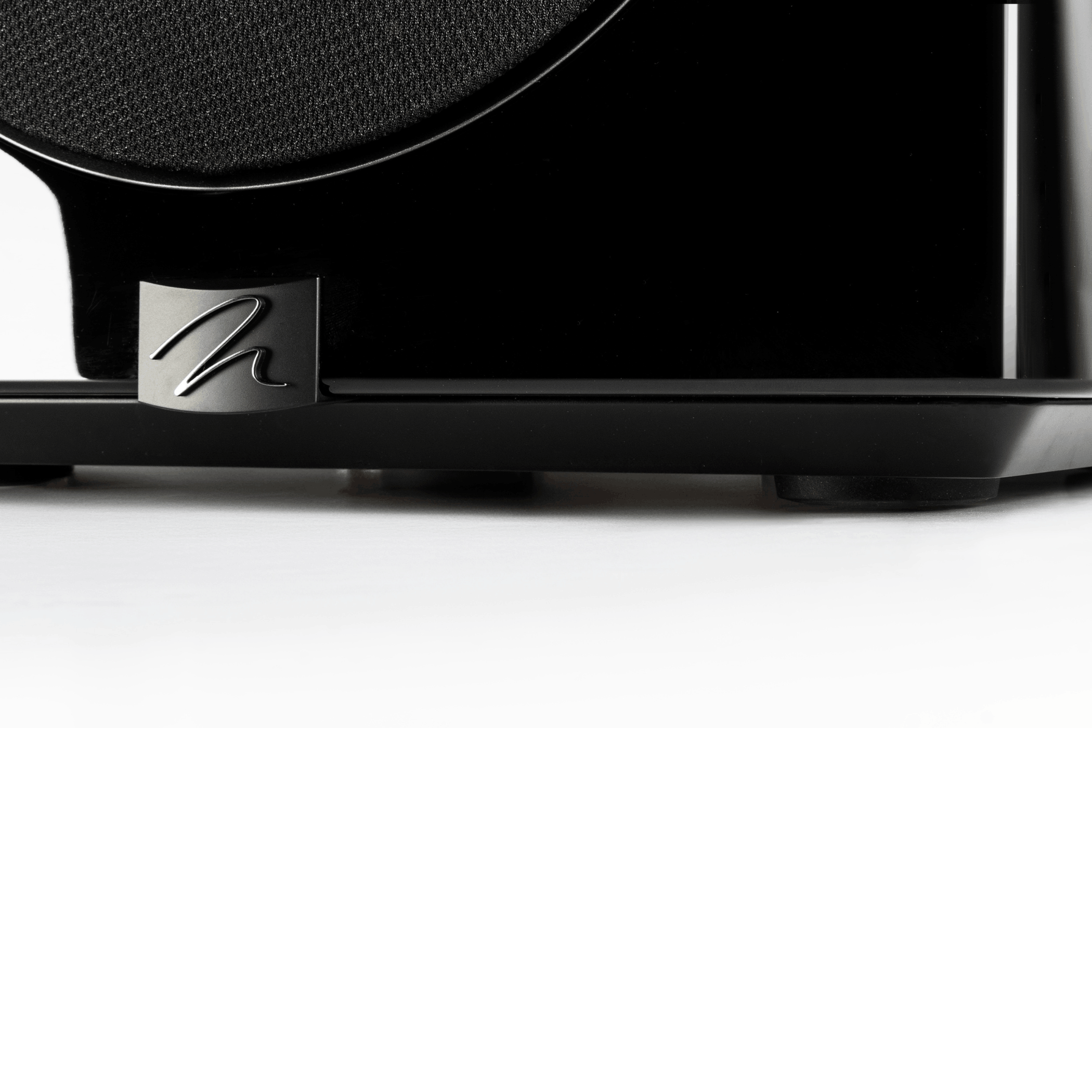

Solid bass performance is a critical component of any audio system and contributes to the visceral impact of your entertainment. Abyss 8’s integrated anti-vibration feet improve bass performance while reducing floor and wall vibrations. By dramatically reducing energy transfer between the subwoofer and the floor, unwanted room rattles and buzzes are eliminated, resulting in tighter, cleaner bass and improved system clarity and dynamics. As a less intrusive alternative to acoustic room treatments, Abyss 8’s integrated anti-vibration feet can also help minimize noise complaints by reducing vibration transfer into adjoining rooms. Out of the box, Abyss 8’s anti-vibration feet are safe for all flooring types, and optional carpet spikes are included to further improve performance on carpeted floors.

Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App

By far the most convenient way to adjust a subwoofer, MartinLogan’s Subwoofer Control app for iOS and Android devices allows you to easily adjust settings such as Volume, DSP Mode, Phase, and many others right from the comfort of your seat for ultimate control and ease of tuning.

Optimize Bass Performance with Award-Winning Anthem Room Correction

Abyss 8 is compatible with the award-winning Anthem Room Correction (ARC®) system. This highly advanced software measures subwoofer performance in your room and then performs custom equalization, tuning, and calibration to achieve the highest levels of bass impact and accuracy possible for your specific installation. Requires an ARC® Calibration Microphone and a PC or Mac computer (sold separately).
