MartinLogan Dynamo Foundation 10 Subwoofer

MartinLogan Dynamo Foundation 10 Subwoofer

Name: MartinLogan Dynamo Foundation 10 Subwoofer
Brand: MartinLogan
SKU: DYNFND10E
Price: 849.00 SGD
Availability: InStock

$849.00 SGD

Separate subwoofer cable required

Please note that MartinLogan subwoofers do not come with a subwoofer cable. Customers will have to purchase a subwoofer cable separately or the MartinLogan WSK-1 Wireless Subwoofer Adaptor Kit.

Product variants

Pickup available at ATLAS WAREHOUSE @ Harper

Usually ready in 24 hours

Listen to MartinLogan In-store

Book a demo at ATLAS @ Harper

Free 1-3 Day Delivery

Get free local delivery within 1-3 working days on orders S$300 and above.

Orders are processed and delivered Monday-Friday (excluding PH).

0% Interest Instalments

Pay with Atome to enjoy up to 3-month interest-free instalment when you shop online.

Choose interest-free instalment plans over 6-12 months with participating credit cards when you pay in-store. View our store locations here.

Warranty

All MartinLogan purchases are covered manufacturer's warranty for faulty material and/or workmanship:

5 Years – Floorstanding, bookshelf, and on-wall speakers;
5 Years – On-wall, in-wall, and in-ceiling speakers;
3 Years – Powered subwoofers;
3 Years – Separate power amplifiers (non-wireless);
2 Years – Soundbars, power amplifiers (wireless), pre-amplifiers (wireless), and fully powered speakers

For more information, read more here.

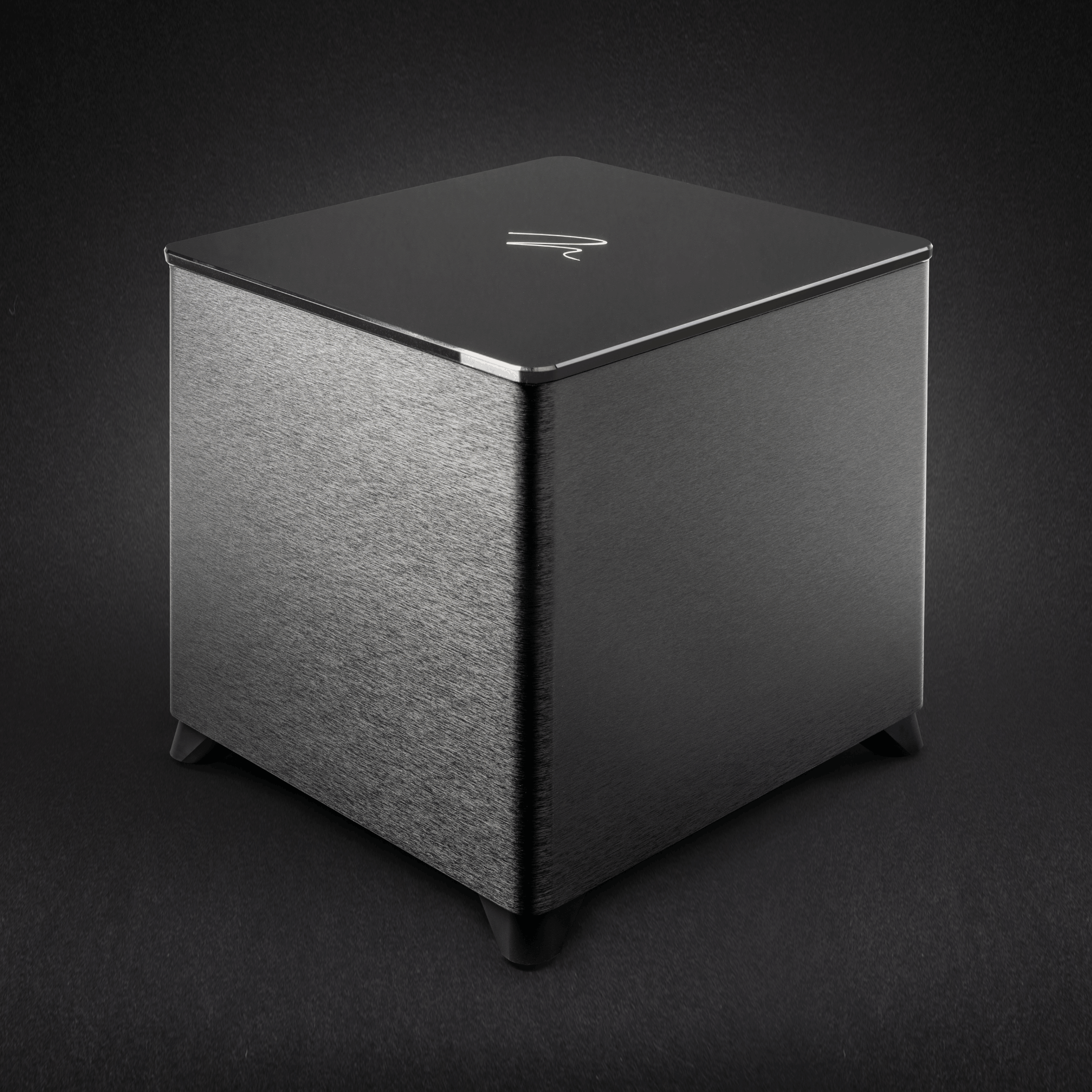

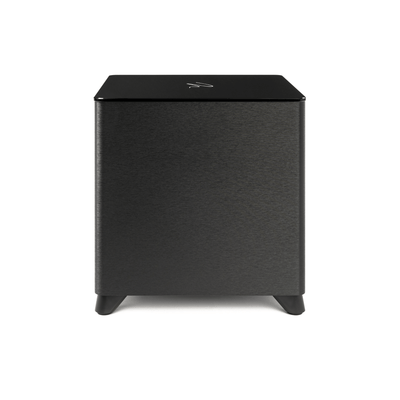

MartinLogan Dynamo Foundation 10 Subwoofer

$849.00 SGD

MartinLogan

Powerful. Compact. Precise.

Dynamo™ Foundation® 10 is the gateway into the world of MartinLogan's High Performance subwoofers, delivering an immersive experience for all your content, at an exceptional value.

As the most compact Dynamo Foundation model, the Dynamo Foundation 10 merges high performance and value into a decor friendly design that can be used with any speaker system.

As with all MartinLogan subwoofers, it is also uniquely designed to keep pace with the renowned clarity of MartinLogan loudspeakers. The combination of sleek looks, a solid cabinet, and a powerful 10" woofer backed up by a robust amplifier all controlled by a powerful DSP Engine is an incredible recipe for thrilling low frequency performance.

LEARN MORE

Dynamo Foundation 10 Owners Manual

Datasheet

SPECIFICATIONS

Digital Signal Processing

High-resolution 200MHz DSP engine with 56-bit processing

Frequency Response

25–200 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer

10” (25.4cm) high-excursion, Ultra-Rigid Polypropylene (URP) cone in a stamped steel basket

Cabinet

Sealed MDF cabinet with reinforced MDF woofer baffle

Amplifier

Magnitude® MT-400 Amplifier with 400W peak (200W continuous)

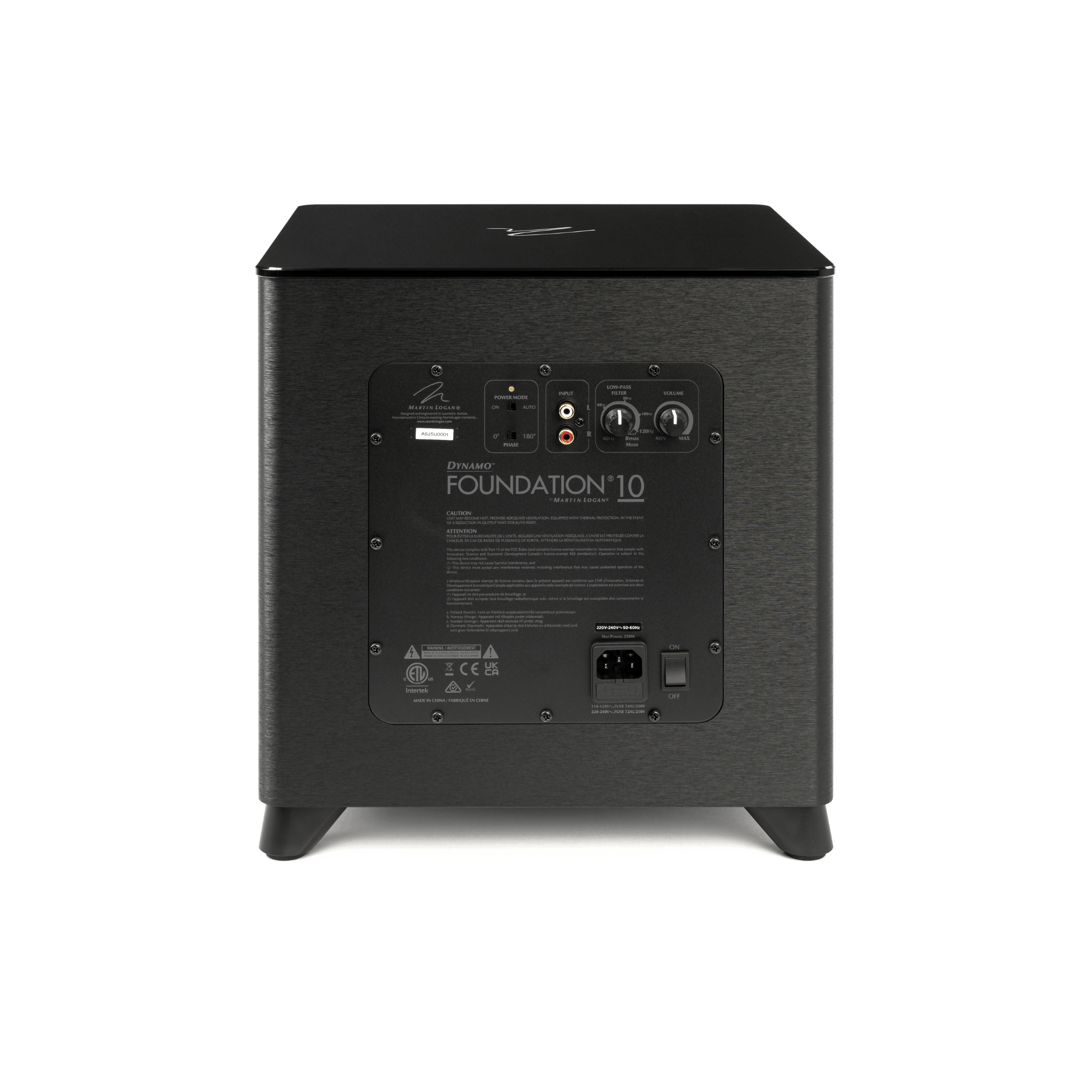

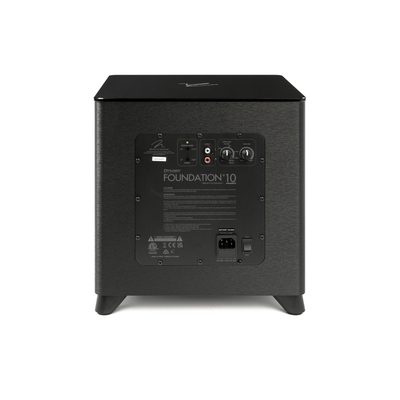

Controls (Backplate)

Level: Min–Max
Low-Pass Filter: 40Hz-Bypass
Power Mode: On, Auto
Phase: 0°, 180°

Wireless Inputs

WSK-1 Kit Sold Separately

Inputs

Line Level: Left, Right/LFE

Power Draw

Max: 250W
Standby: 0.5W

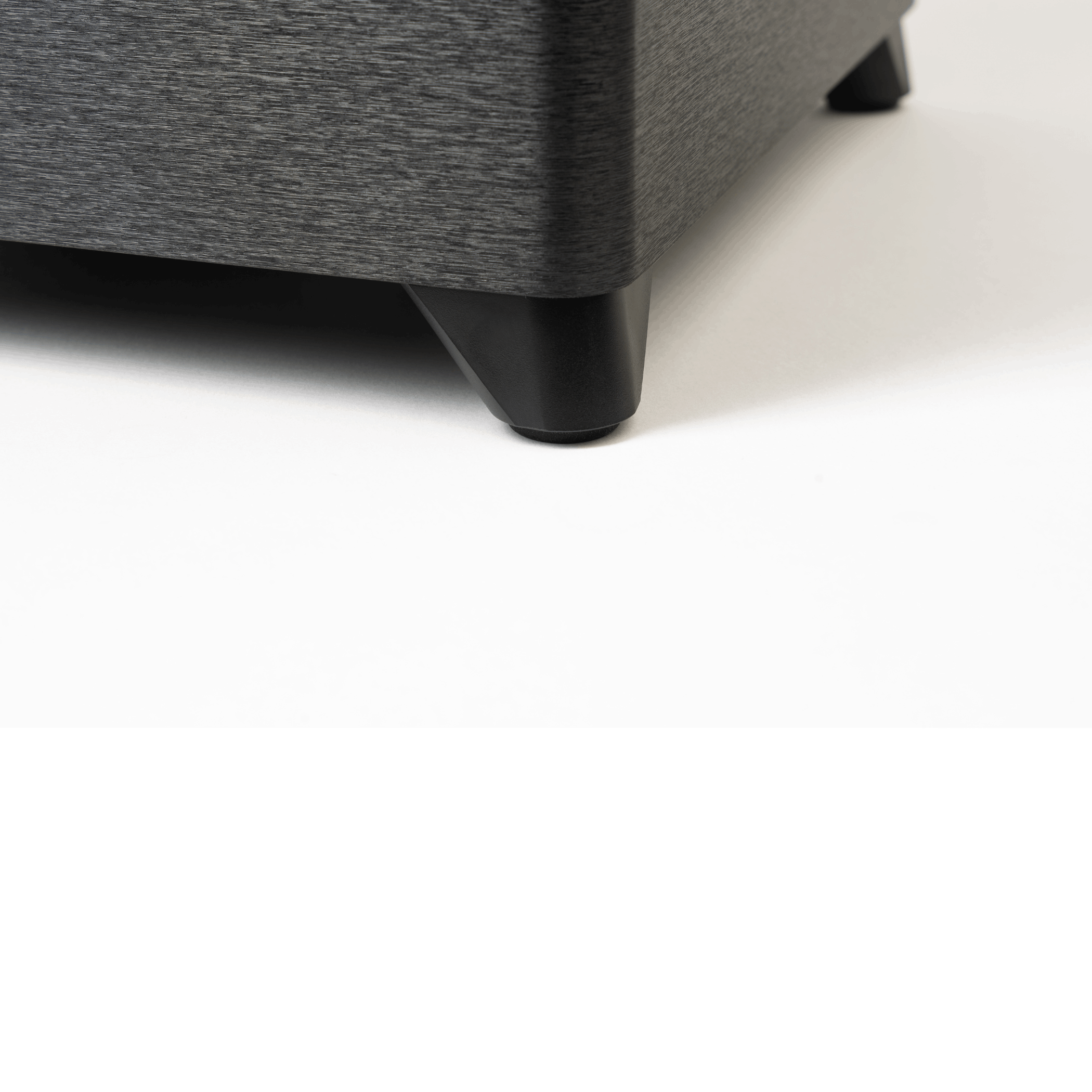

Feet

Non-Slip

DIMENSIONS

Weight

23.8 lbs. (10.8 kg)

Dimensions (H x W x D)

13" x 12-3/4" x 12-3/4" (33cm x 31.3cm x 31.3cm)

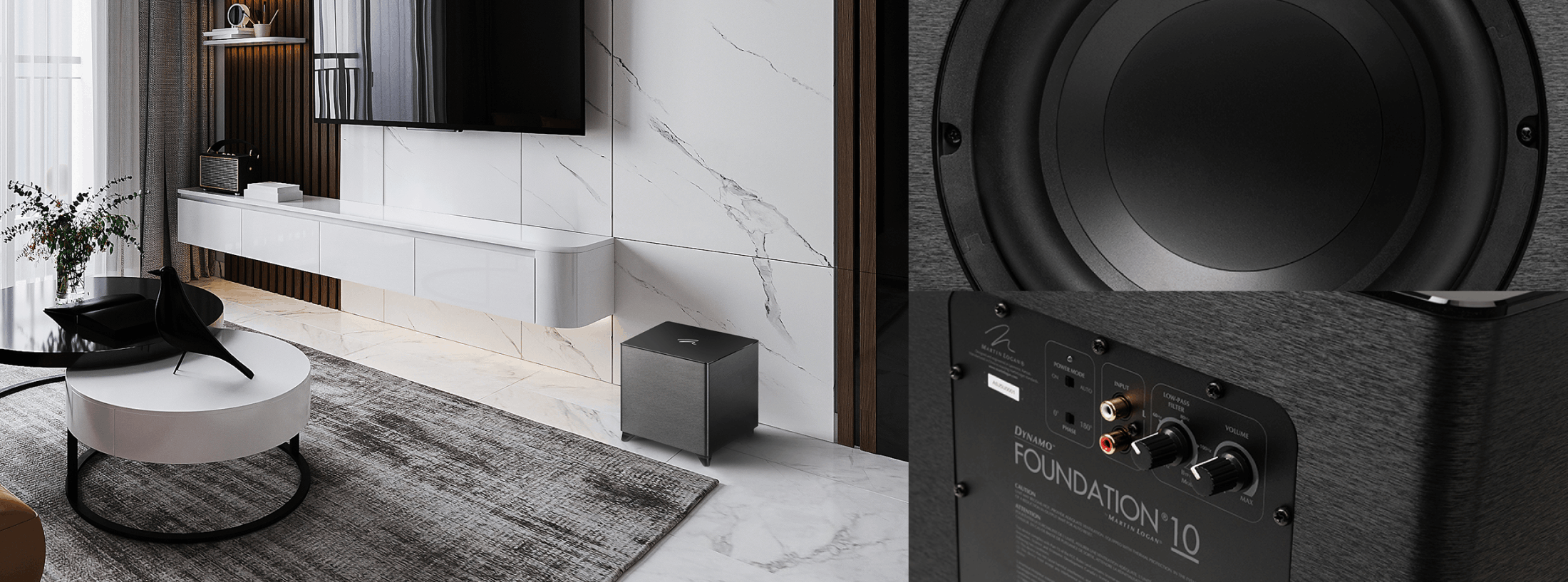

Seamlessly Integrating High-Performance Audio with Elegant Design

MartinLogan subwoofers are uniquely engineered to complement the exotic thin-film technologies utilised in MartinLogan loudspeakers. Emphasising high performance and decor-friendly aesthetics, MartinLogan subwoofers expertly blend audiophile musicality and theatricality with dynamic output and accuracy in a compact design.

High-Performance, Low-Distortion Bass at an Exceptional Value

Dynamo Foundation 10 features a custom-designed and tuned 10” Ultra-Rigid Polypropylene (URP) woofer. Utilizing the same state-of-the-art Klippel analysis as MartinLogan’s more premium woofers, this proprietary driver is specially engineered to provide high output and low distortion at an exceptional value, while embodying every bit of MartinLogan quality.

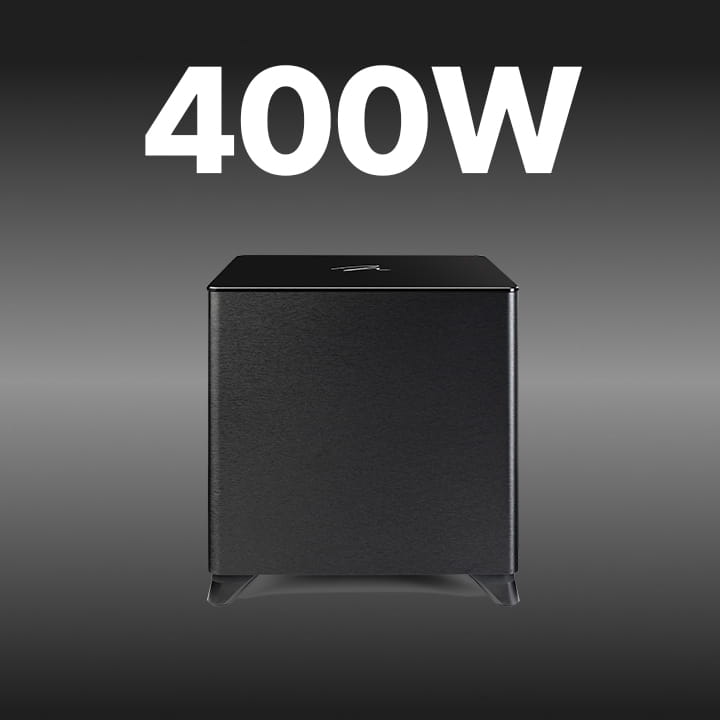

High-Impact Magnitude MT-400 Amplifier

MartinLogan’s proprietary Magnitude Amplifier unleashes the full potential of the custom-engineered 10” URP woofer. The Magnitude MT-400 delivers up to 400W Peak (200W RMS) of clean power for incredible impact and effortless musicality. This ultra-efficient Class-D amplifier delivers commanding bass with the utmost precision and control, providing an immersive experience regardless of the content.

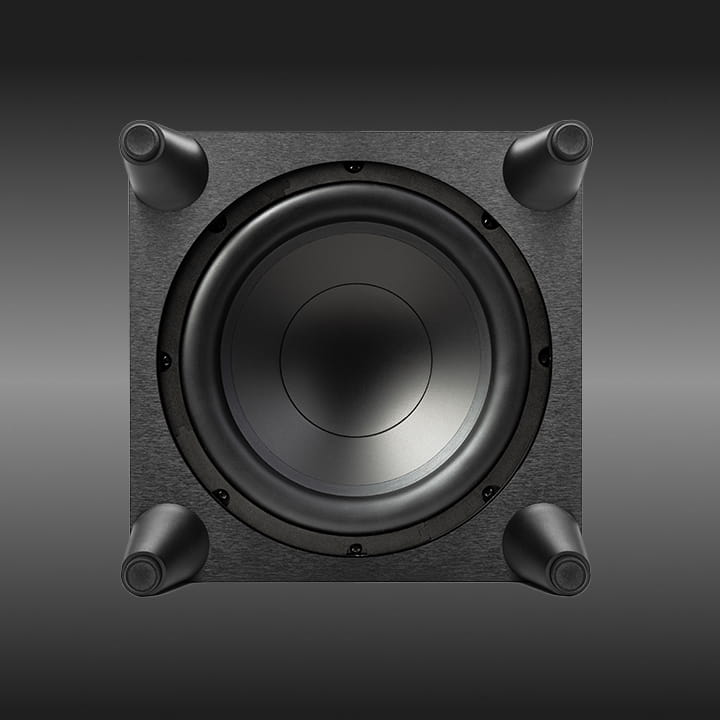

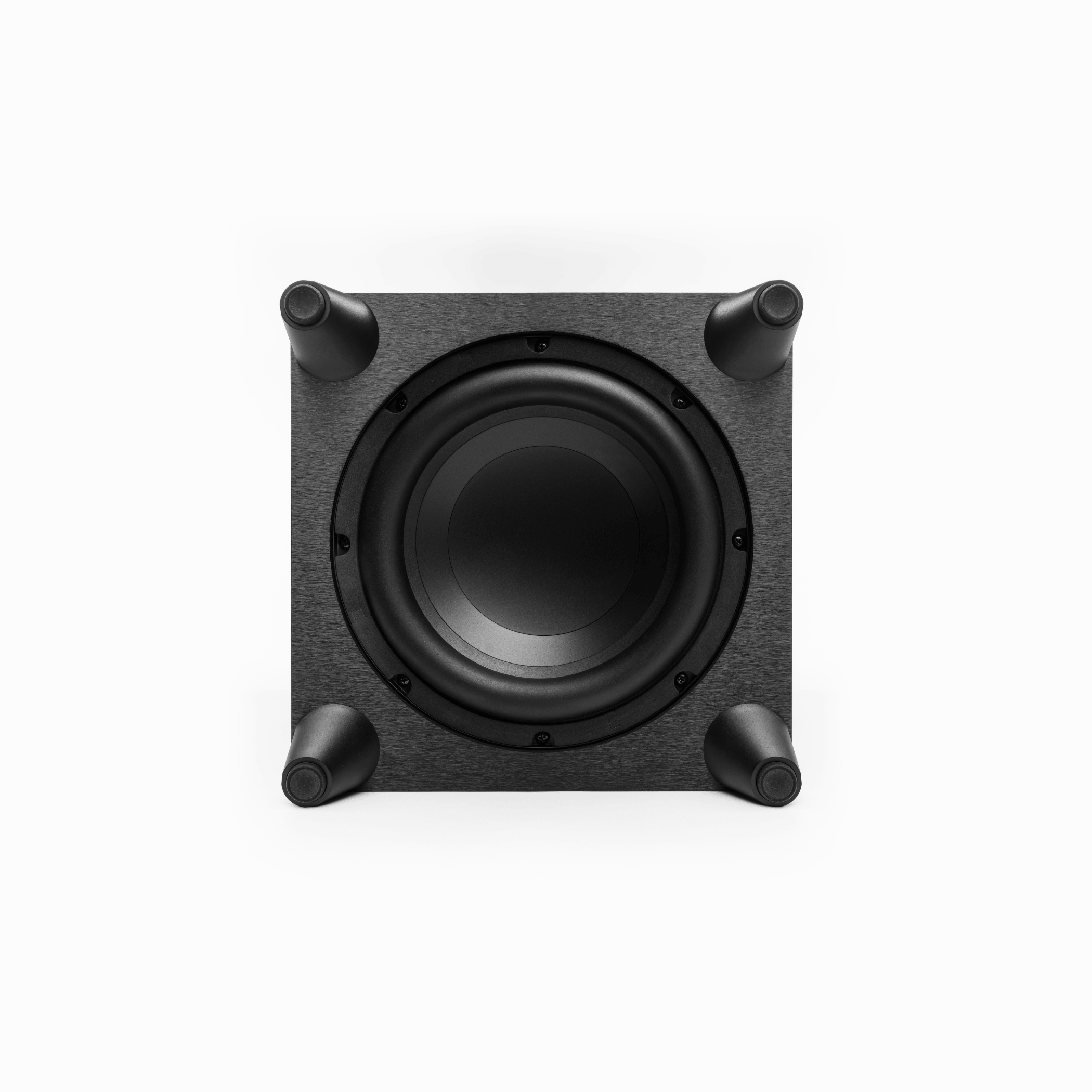

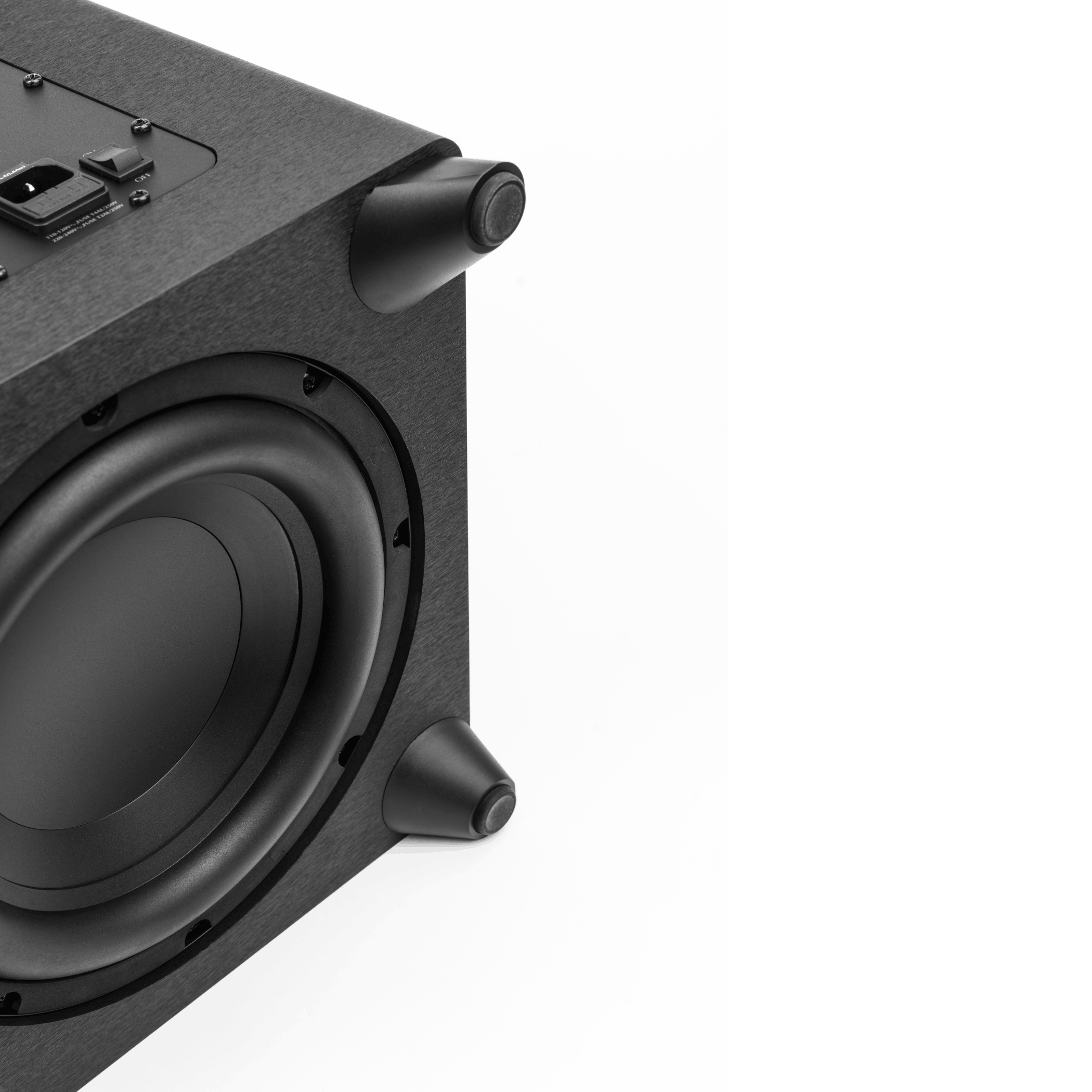

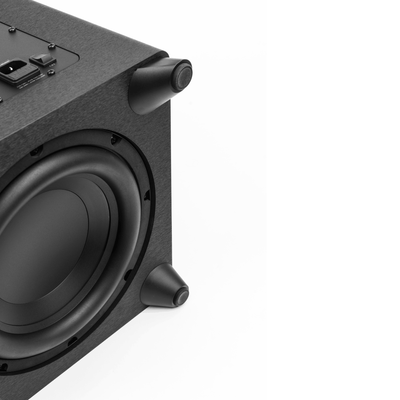

Seamless Integration with Grille-Less Down-Firing Design

Dynamo Foundation subwoofers use a down-firing design, resulting in a clean, grille-less aesthetic to seamlessly blend into a variety of decors.

Versatile Connectivity with LFE and Stereo RCA Inputs

Dynamo Foundation subwoofers feature an LFE input for a simplistic home theatre setup, as well as Stereo RCA inputs for flexible installation options with a variety of audio equipment.

Advanced DSP Engine Ensures Distortion-Free, High-Fidelity Audio

Dynamo Foundation subwoofers utilize a high-resolution 200MHz DSP engine with 56-bit processing, a performance enhancement rarely found in this class of subwoofers. This level of computing power ensures that audio processing is completely free of distortion or artifacts, allowing MartinLogan engineers to enhance the subwoofers capabilities for maximum output and fidelity.

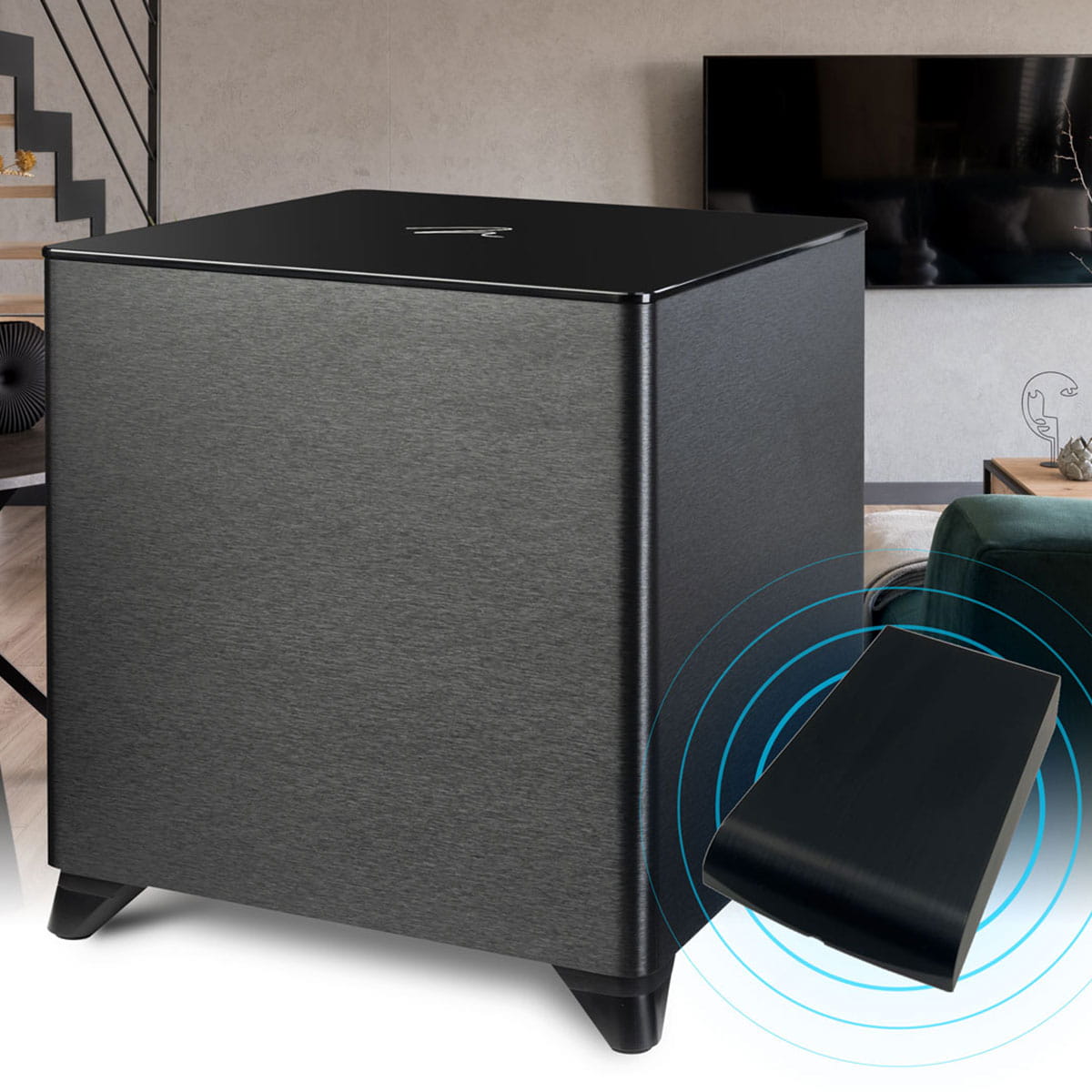

Effortless Wireless Connectivity

Enhance your audio setup with the optional WSK-1 Wireless Subwoofer Kit (sold separately). This easy-to-install accessory allows Dynamo Foundation subwoofers to connect wirelessly to your audio system, eliminating the need for cumbersome cables.

Experience the same high-quality sound performance without the clutter, and enjoy the freedom to place your subwoofer anywhere in the room for optimal performance. With the WSK-1 Wireless Subwoofer Kit, achieving a clean, sleek, and powerful home theatre experience has never been easier. WSK-1 is also compatible with any powered subwoofer with an RCA input.

Uncompromising Bass

Designed to complement MartinLogan Motion® Foundation® Series systems and other brands, offering high-performance, low-distortion bass at a remarkable value.
