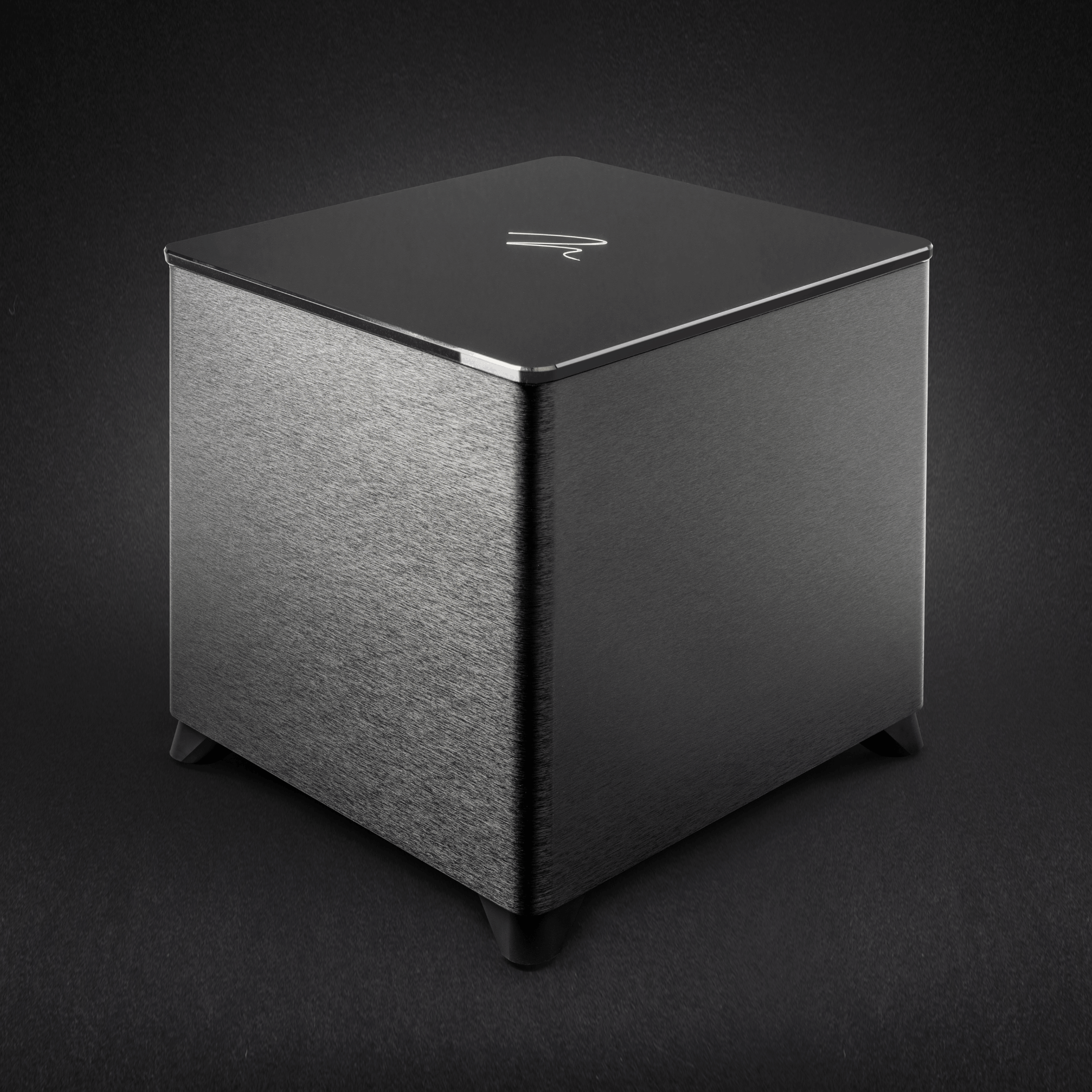

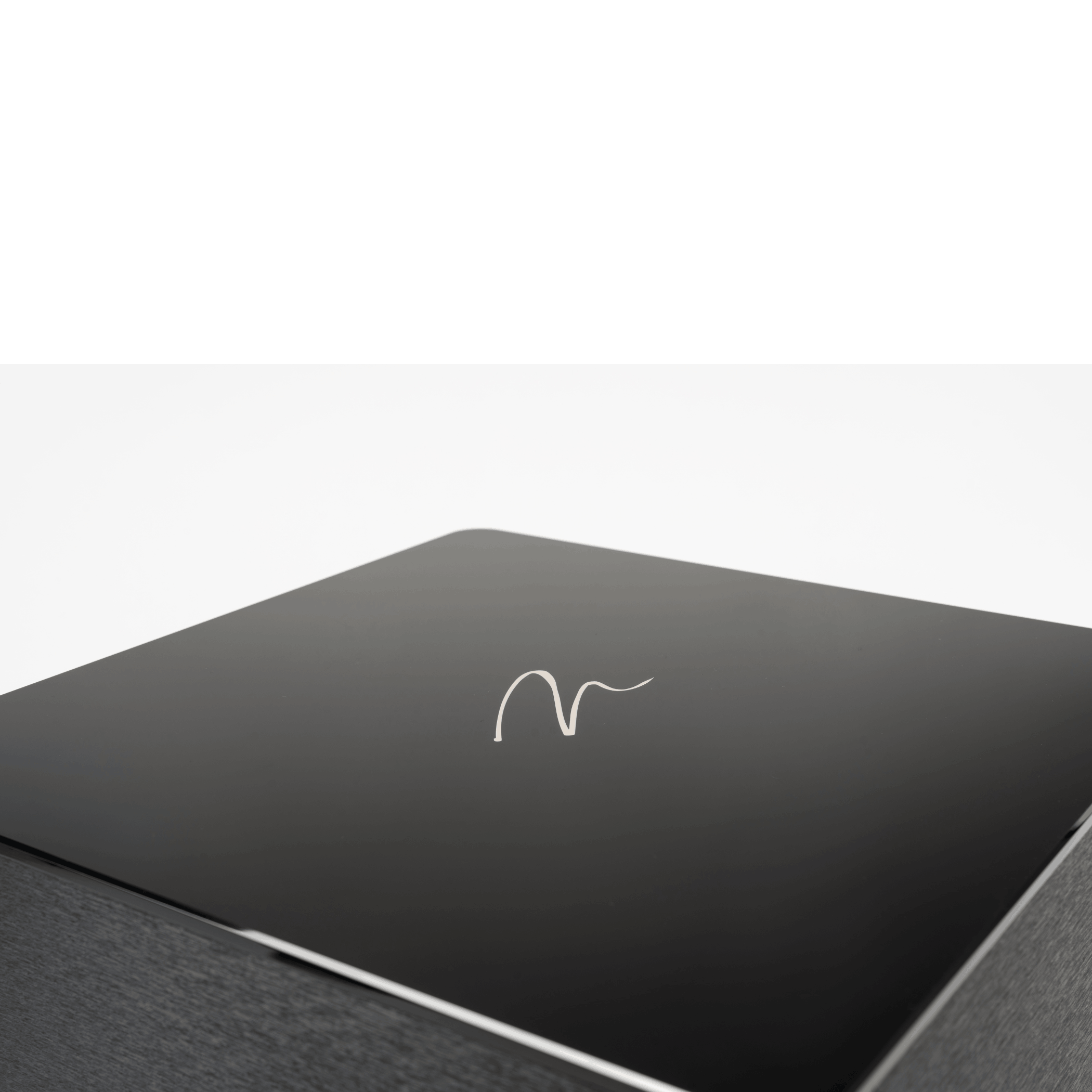

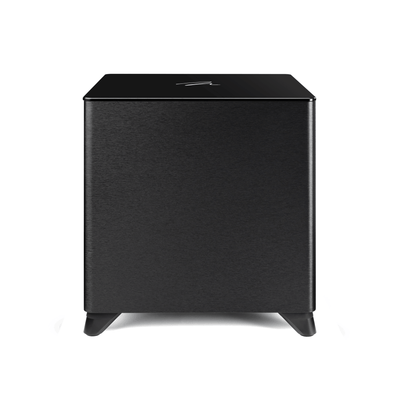

MartinLogan Dynamo Foundation 12 Subwoofer
MartinLogan Dynamo Foundation 12 Subwoofer
MartinLogan Dynamo Foundation 12 Subwoofer
MartinLogan Dynamo Foundation 12 Subwoofer
MartinLogan Dynamo Foundation 12 Subwoofer
MartinLogan Dynamo Foundation 12 Subwoofer
MartinLogan Dynamo Foundation 12 Subwoofer

MartinLogan Dynamo Foundation 12 Subwoofer

$1,179.00 SGD
Separate subwoofer cable required

Please note that MartinLogan subwoofers do not come with a subwoofer cable. Customers will have to purchase a subwoofer cable separately or the MartinLogan WSK-1 Wireless Subwoofer Adaptor Kit.

Add Ons

Pickup available at ATLAS WAREHOUSE @ Harper

Usually ready in 24 hours
Listen to MartinLogan In-store

Book a demo at ATLAS @ Harper

Free 1-3 Day Delivery

Get free local delivery within 1-3 working days on orders S$300 and above.

Orders are processed and delivered Monday-Friday (excluding PH).

0% Interest Instalments

Pay with Atome to enjoy up to 3-month interest-free instalment when you shop online.

Choose interest-free instalment plans over 6-12 months with participating credit cards when you pay in-store. View our store locations here.

Warranty

All MartinLogan purchases are covered manufacturer's warranty for faulty material and/or workmanship:

  • 5 Years – Floorstanding, bookshelf, and on-wall speakers;
  • 5 Years – On-wall, in-wall, and in-ceiling speakers;
  • 3 Years – Powered subwoofers;
  • 3 Years – Separate power amplifiers (non-wireless);
  • 2 Years – Soundbars, power amplifiers (wireless), pre-amplifiers (wireless), and fully powered speakers

For more information, read more here.

MartinLogan

Powerful. Compact. Precise.

With its larger 12" woofer and more powerful amplifier, Dynamo™ Foundation® 12 offers even more output and low frequency extension than its smaller sibling, the Dynamo 10.

Thanks to its enhanced capabilities, the Dynamo Foundation 12 is the ideal choice for those with larger rooms or anyone desiring high output, and low distortion bass from a decor-friendly design.

With its powerful 12" woofer, strong amplification, and precise DSP Engine encased in a solid yet sleek cabinet, the Dynamon Foundation 12 is perfectly suited to keep up with the speed of MartinLogan loudspeakers and ready to deliver in any system.

LEARN MORE

Dynamo Foundation 12 Owners Manual

Datasheet

SPECIFICATIONS
Digital Signal Processing

High-resolution 200MHz DSP engine with 56-bit processing

Frequency Response

24–200 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer

12” (30.5cm) high-excursion, Ultra-Rigid Polypropylene (URP) cone in a stamped steel basket

Cabinet

Sealed MDF cabinet with reinforced MDF woofer baffle

Amplifier

Magnitude® MT-700 Amplifier with 700W peak (350W continuous)

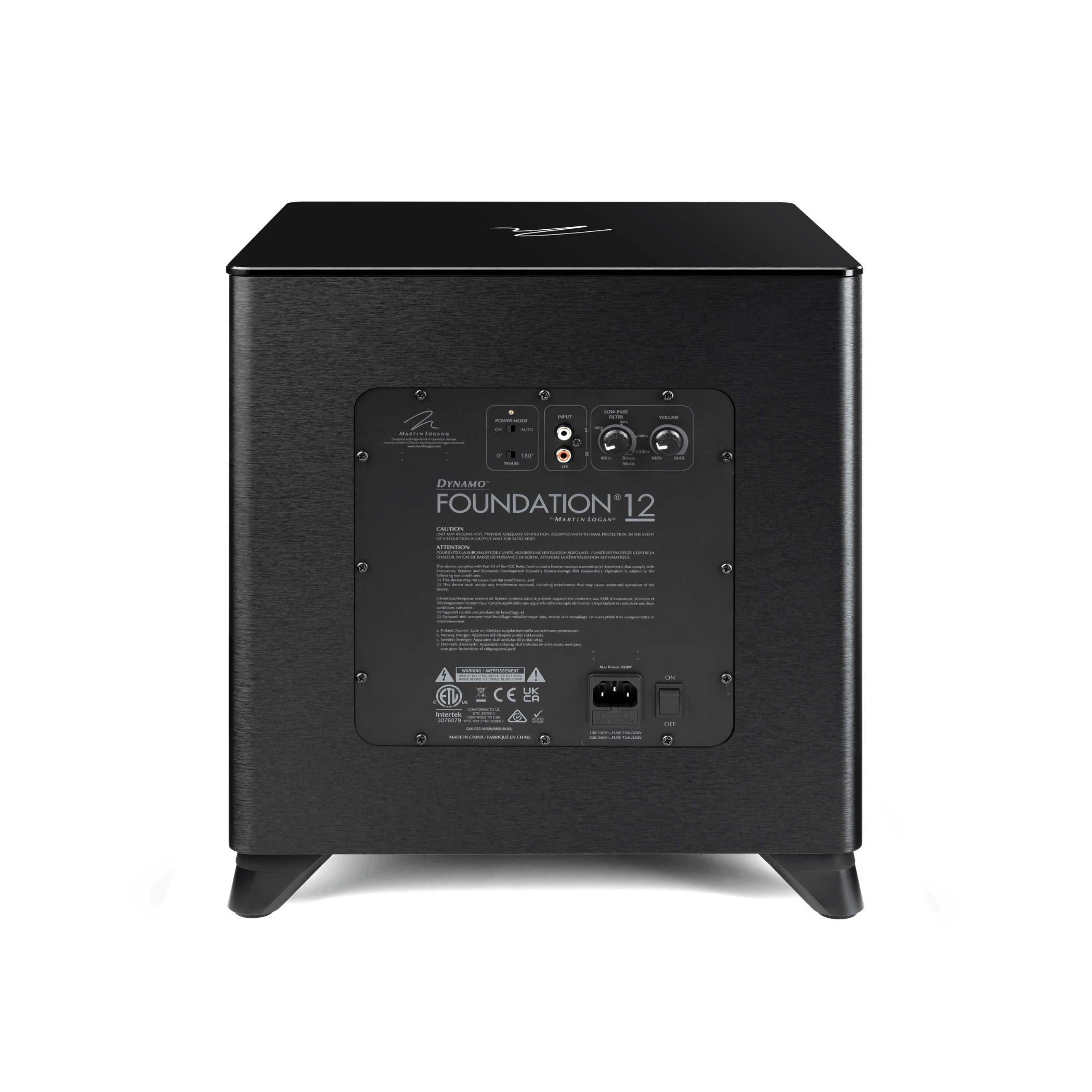

Controls (Backplate)

Level: Min–Max
Low-Pass Filter: 40Hz-Bypass
Power Mode: On, Auto
Phase: 0°, 180°

Wireless Inputs

WSK-1 Kit Sold Separately

Inputs

Line Level: Left, Right/LFE

Power Draw

Max: 350W
Standby: 0.5W

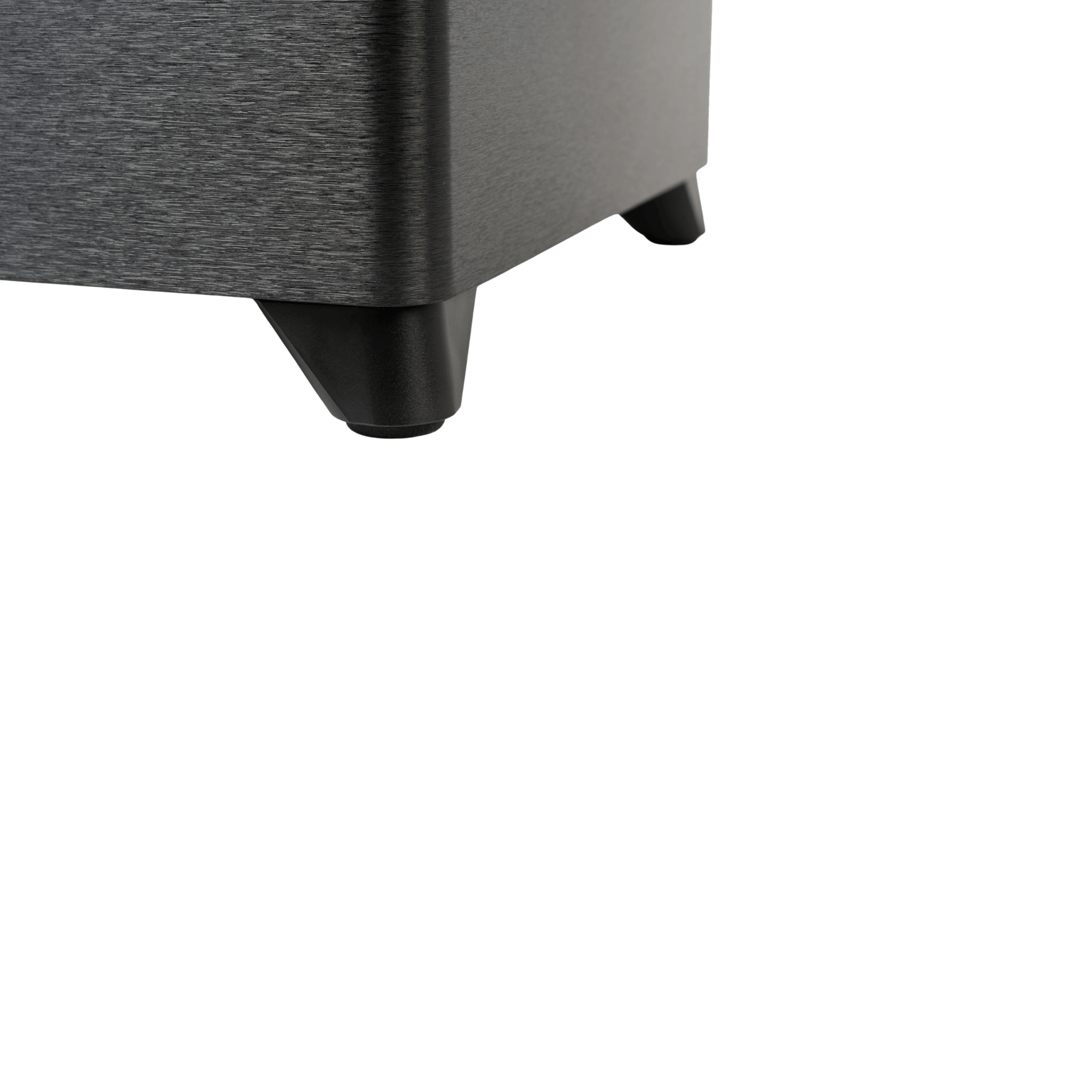

Feet

Non-Slip

DIMENSIONS
Weight

29.1 lbs. (13.2 kg)

Dimensions (H x W x D)

16" x 14" x 14" (40.6cm x 35.8cm x 35.8cm)

Seamlessly Integrating High-Performance Audio with Elegant Design

MartinLogan subwoofers are uniquely engineered to complement the exotic thin-film technologies utilised in MartinLogan loudspeakers. Emphasising high performance and decor-friendly aesthetics, MartinLogan subwoofers expertly blend audiophile musicality and theatricality with dynamic output and accuracy in a compact design.

High-Performance, Low-Distortion Bass at an Exceptional Value

Dynamo Foundation 12 features a custom-designed and tuned 12” Ultra-Rigid Polypropylene (URP) woofer. Utilising the same state-of-the-art Klippel analysis as MartinLogan’s more premium woofers, this proprietary driver is specially engineered to provide high output and low distortion at an exceptional value, while embodying every bit of MartinLogan quality.

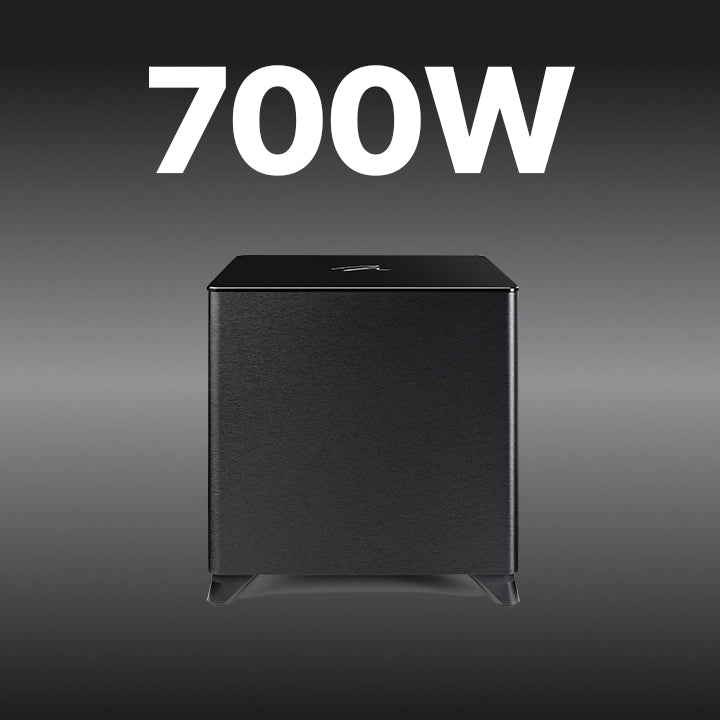

High-Impact Magnitude MT-700 Amplifier

MartinLogan’s proprietary Magnitude Amplifier unleashes the full potential of the custom-engineered 12” URP woofer. The Magnitude MT-700 delivers up to 700W Peak (350W RMS) of clean power for incredible impact and effortless musicality. This ultra-efficient Class-D amplifier delivers commanding bass with the utmost precision and control, providing an immersive experience regardless of the content.

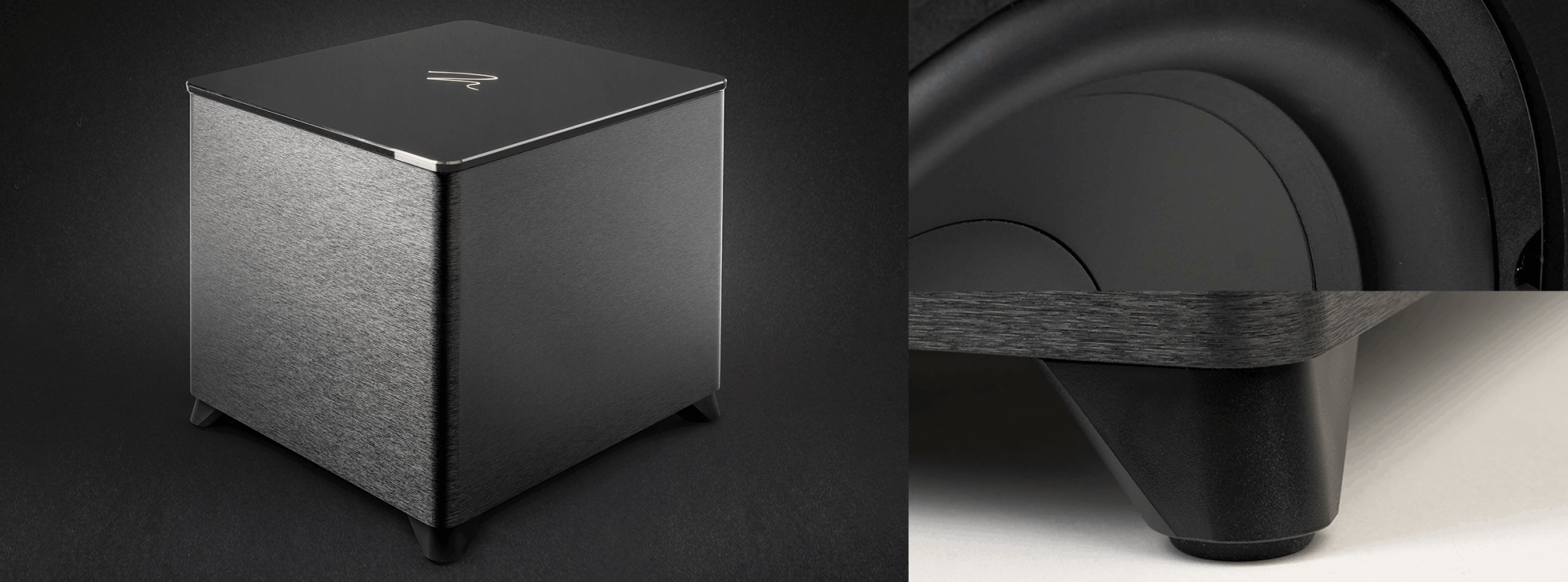

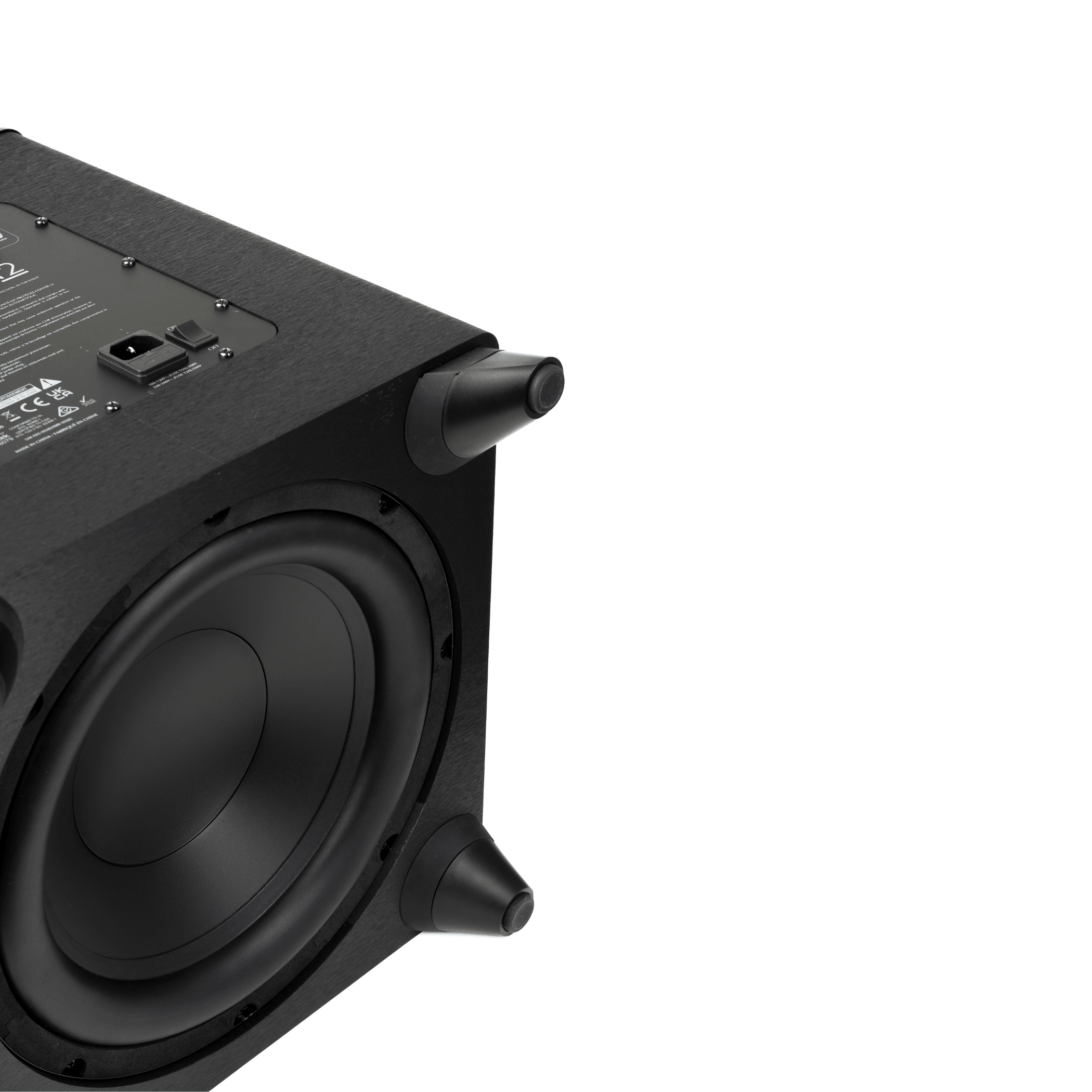

Seamless Integration with Grille-Less Down-Firing Design

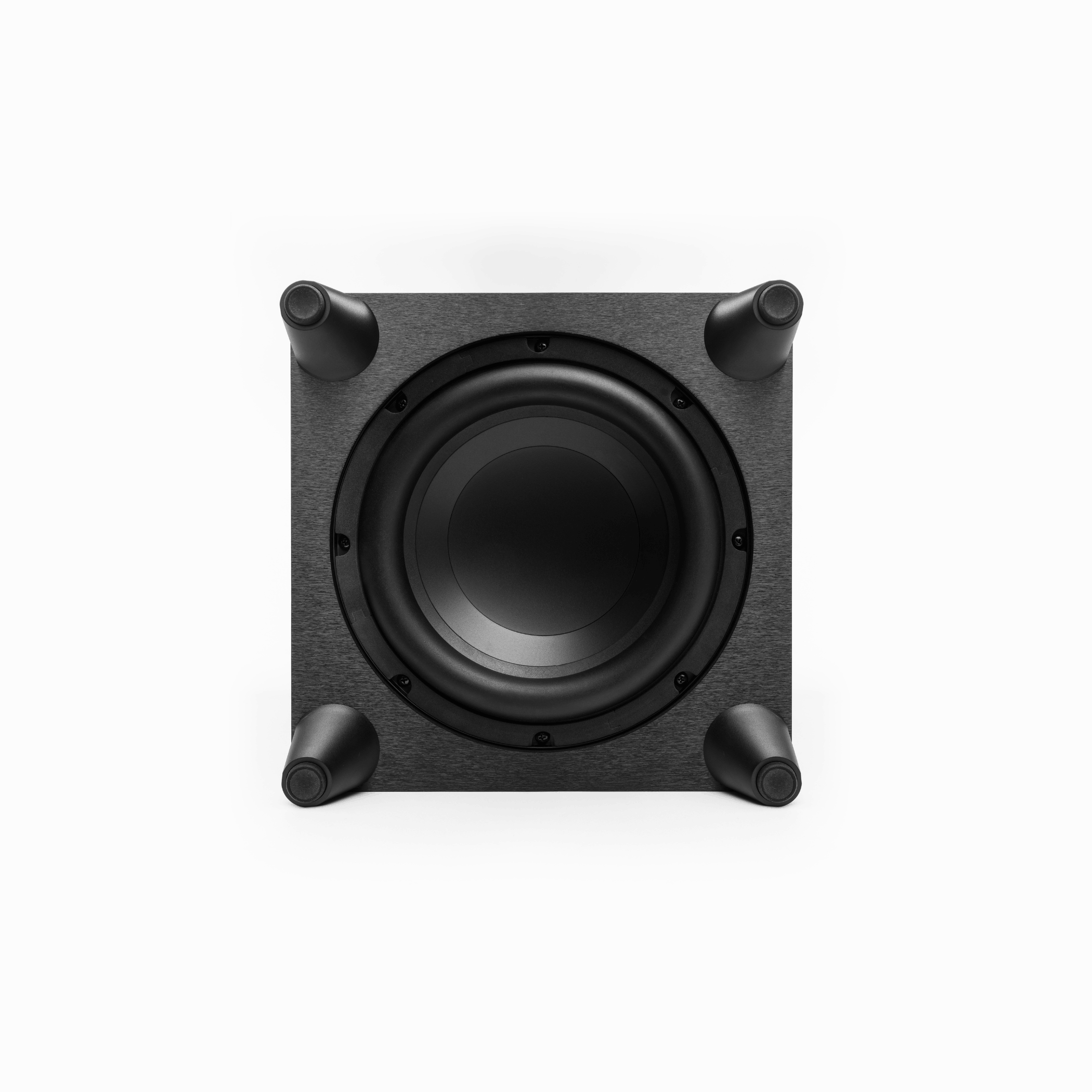

Dynamo Foundation subwoofers use a down-firing design, resulting in a clean, grille-less aesthetic to seamlessly blend into a variety of decors.

Versatile Connectivity with LFE and Stereo RCA Inputs

Dynamo Foundation subwoofers feature an LFE input for a simplistic home theatre setup, as well as Stereo RCA inputs for flexible installation options with a variety of audio equipment.

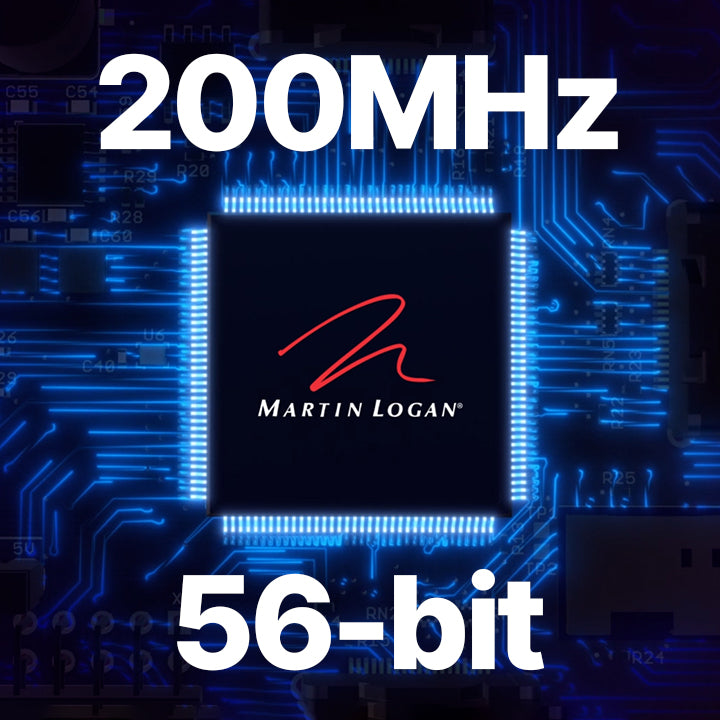

Advanced DSP Engine Ensures Distortion-Free, High-Fidelity Audio

Dynamo Foundation subwoofers utilise a high-resolution 200MHz DSP engine with 56-bit processing, a performance enhancement rarely found in this class of subwoofers. This level of computing power ensures that audio processing is completely free of distortion or artefacts, allowing MartinLogan engineers to enhance the subwoofer's capabilities for maximum output and fidelity.

Effortless Wireless Connectivity

Enhance your audio setup with the optional WSK-1 Wireless Subwoofer Kit (sold separately). This easy-to-install accessory allows Dynamo Foundation subwoofers to connect wirelessly to your audio system, eliminating the need for cumbersome cables. Experience the same high-quality sound performance without the clutter, and enjoy the freedom to place your subwoofer anywhere in the room for optimal performance. With the WSK-1 Wireless Subwoofer Kit, achieving a clean, sleek, and powerful home theater experience has never been easier. WSK-1 is also compatible with any powered subwoofer with an RCA input.

Uncompromising Bass

Designed to complement MartinLogan® Motion® Foundation® Series systems and other brands, offering high-performance, low-distortion bass at a remarkable value.
