Devialet

Big sound, small package.

95 dB | 18Hz – 21kHz | 350 Watts RMS

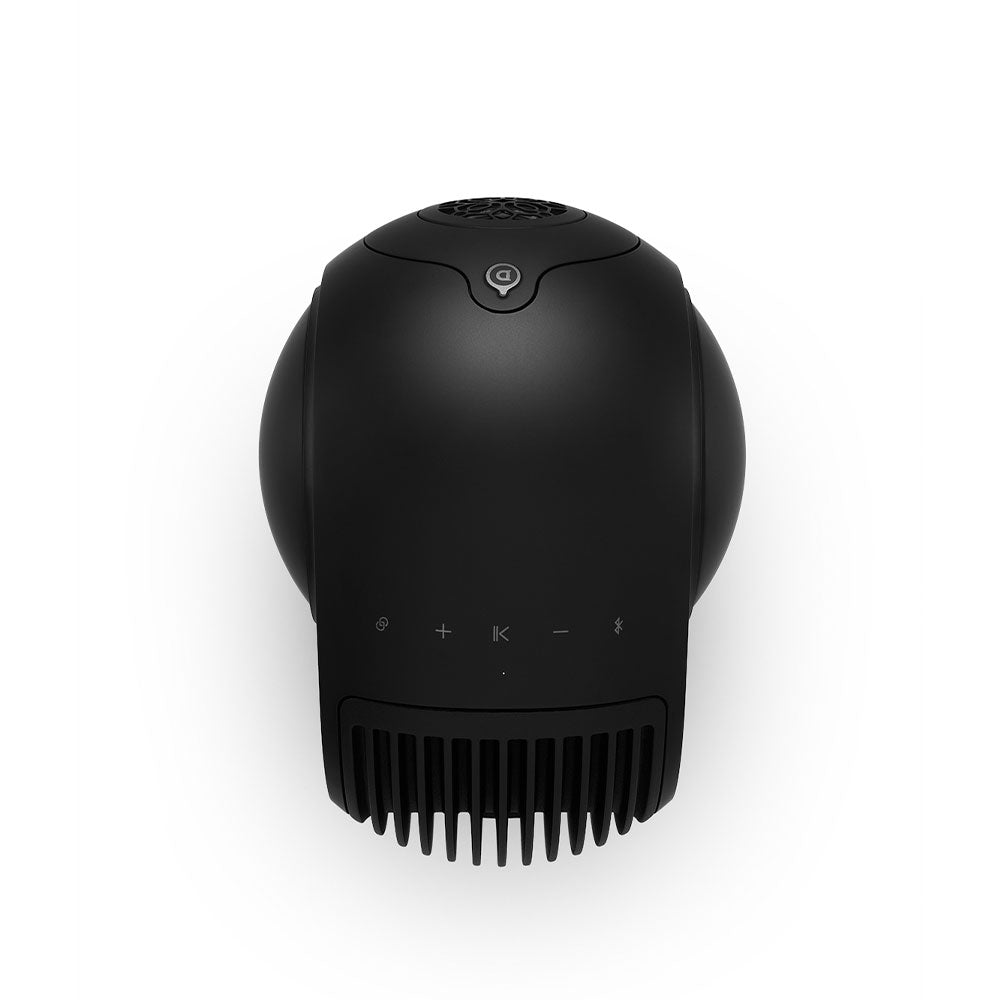

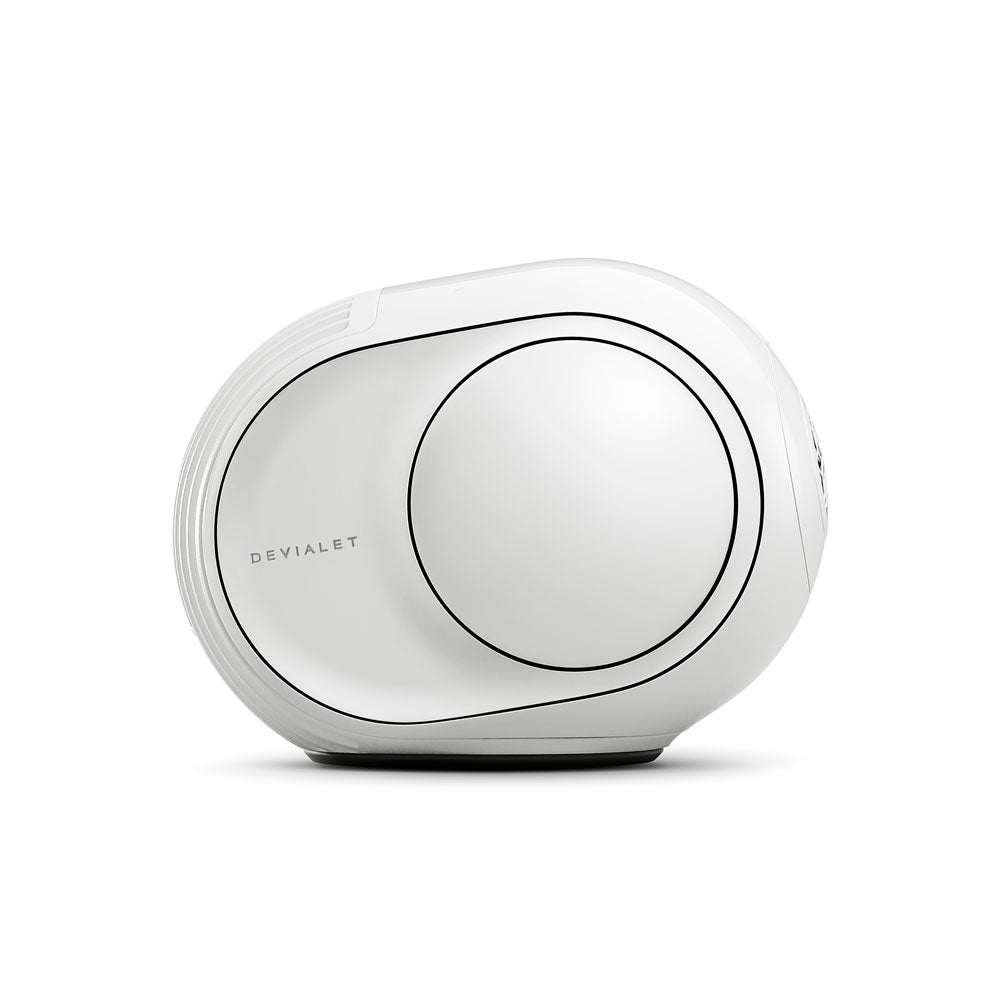

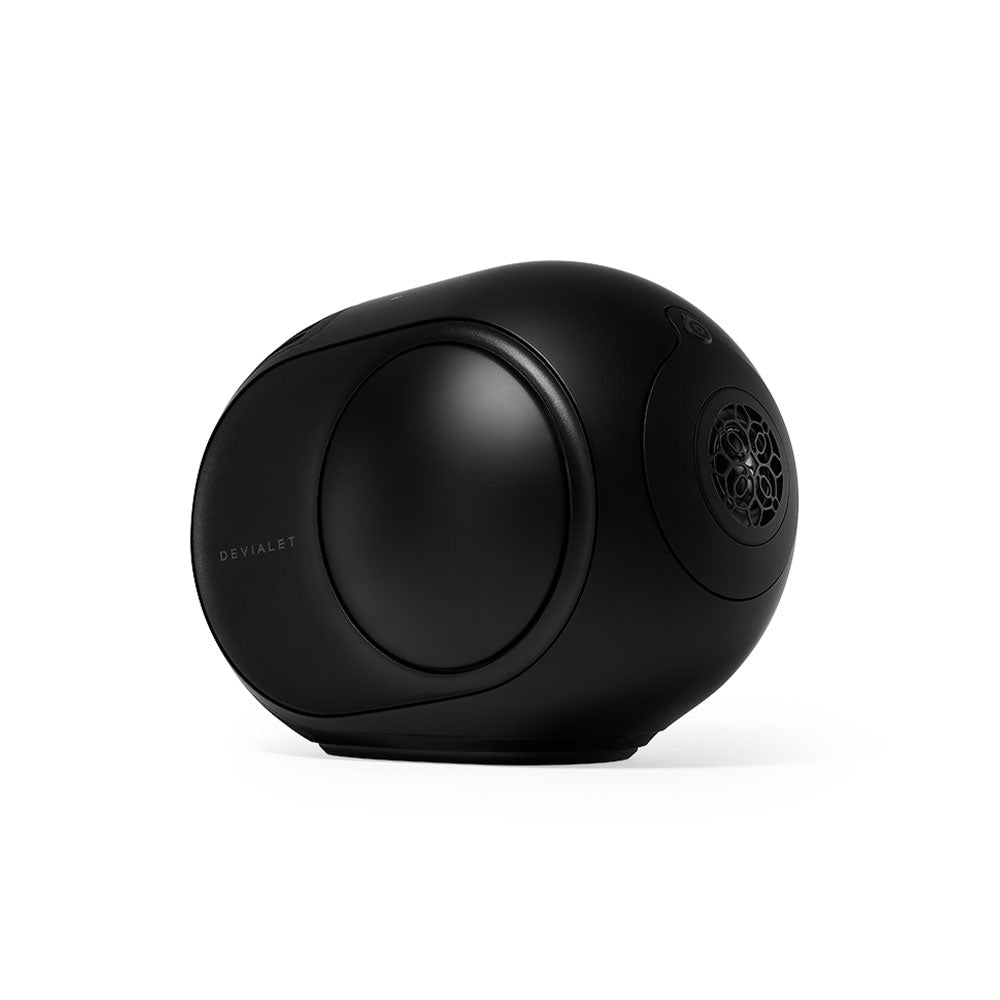

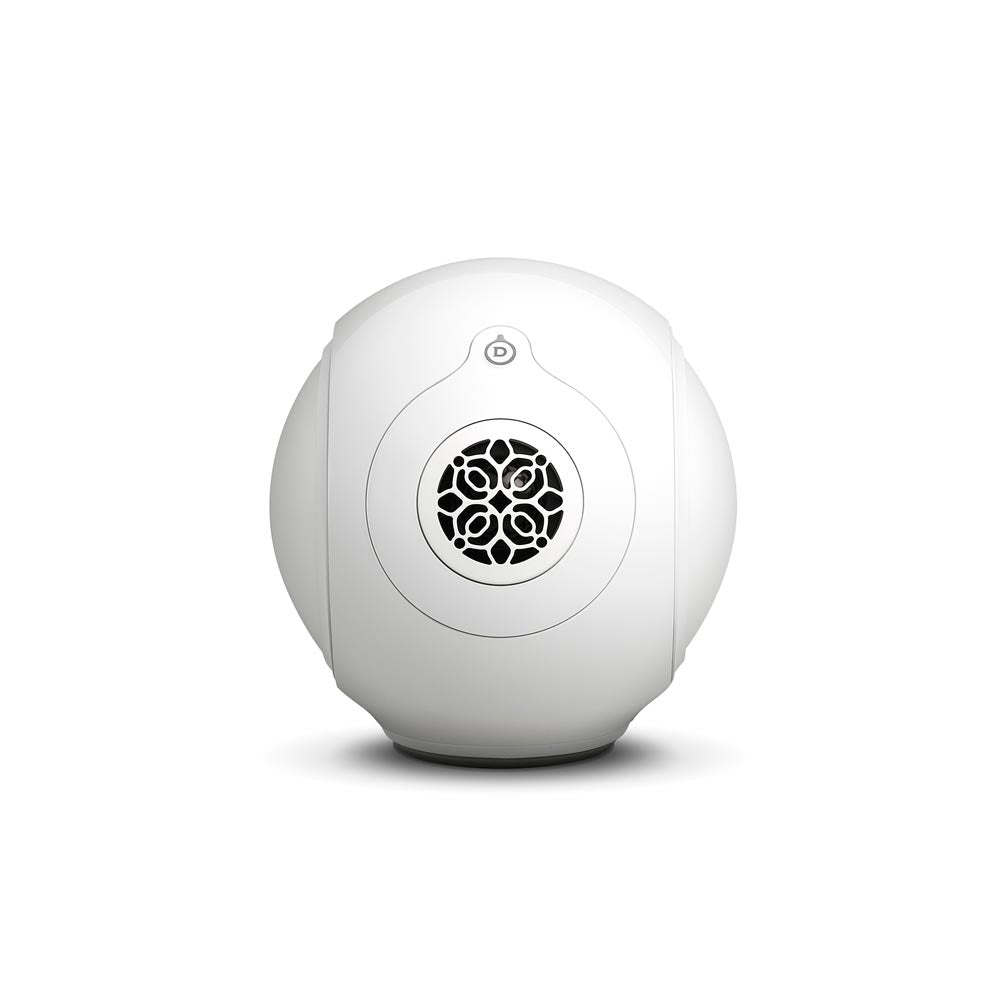

Ultra-compact home sound system: the easy-to-transport Phantom speaker.

SPECIFICATIONS
Loudspeakers

1 x Aluminum Full-Range driver
2 x Aluminum Bass drivers

Digital to Analog Converter

Devialet DAC embedded in Devialet Intelligence Processor
24bits / 96kHz
THD: -112dB

Processor

ARM Cortex-A9 1.25GHz processor 512MB
DDR3-1600 memory

Power Supply

IEC 100-240V ~ 50/60Hz

Maximum Sound Level

95 dB SPL at 1 meter

Total amplification power

350 Watts RMS

Amplification Performance

THD+N* : 0.001% (*Total Harmonic Distortion + Noise)

Frequency response (bandwidth)

Bandwidth: 18Hz to 21kHz (@-6dB)
Accuracy in frequency response : ± 1dB from 25Hz to 20kHz (*Average on ± 30°)

Synchronisation

Phantom synchronisation via Wi-Fi or Ethernet.
Ethernet wiring is recommended for multiroom installation with more than 6 Phantoms.

Connectivity

Airplay 2
Spotify Connect
Bluetooth : A2D and AVRCP profiles, AAC, SBC audio codecs
Roon Ready (Inputs up to 24bits/96kHz)
UPnP Renderer (Inputs up to 24bits/96kHz)
Analog/Optical jack input (Inputs up to 24bits/96kHz)

Network

Wi-Fi Dual-band (a/b/g/n/ac 2.4GHz & 5GHz)Ethernet RJ-45 10/100/1000 Mbps (Gigabit)CPL Homeplug AV2

App

Devialet app (iOS, Android)

IN THE BOX

1 Phantom II

1 Power cord

1 Quickstart guide

DIMENSIONS
Dimension

Width: 157 mm | Height: 168 mm | Depth: 219 mm

Weight

4.3 kg
