Power Input

IEC (AC) 115-230V or 120-240V, 1.5A at max

Power Consumption

100W at max

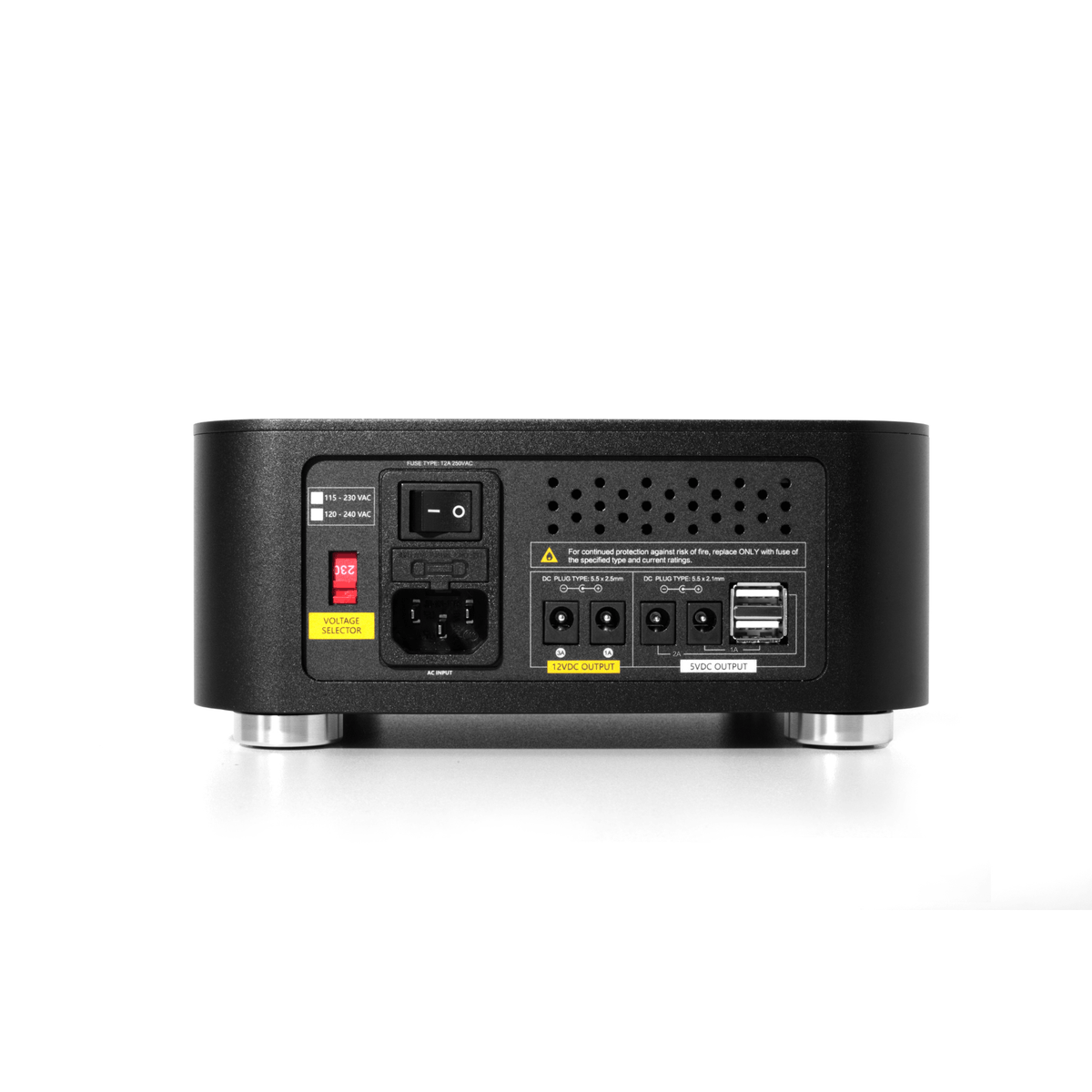

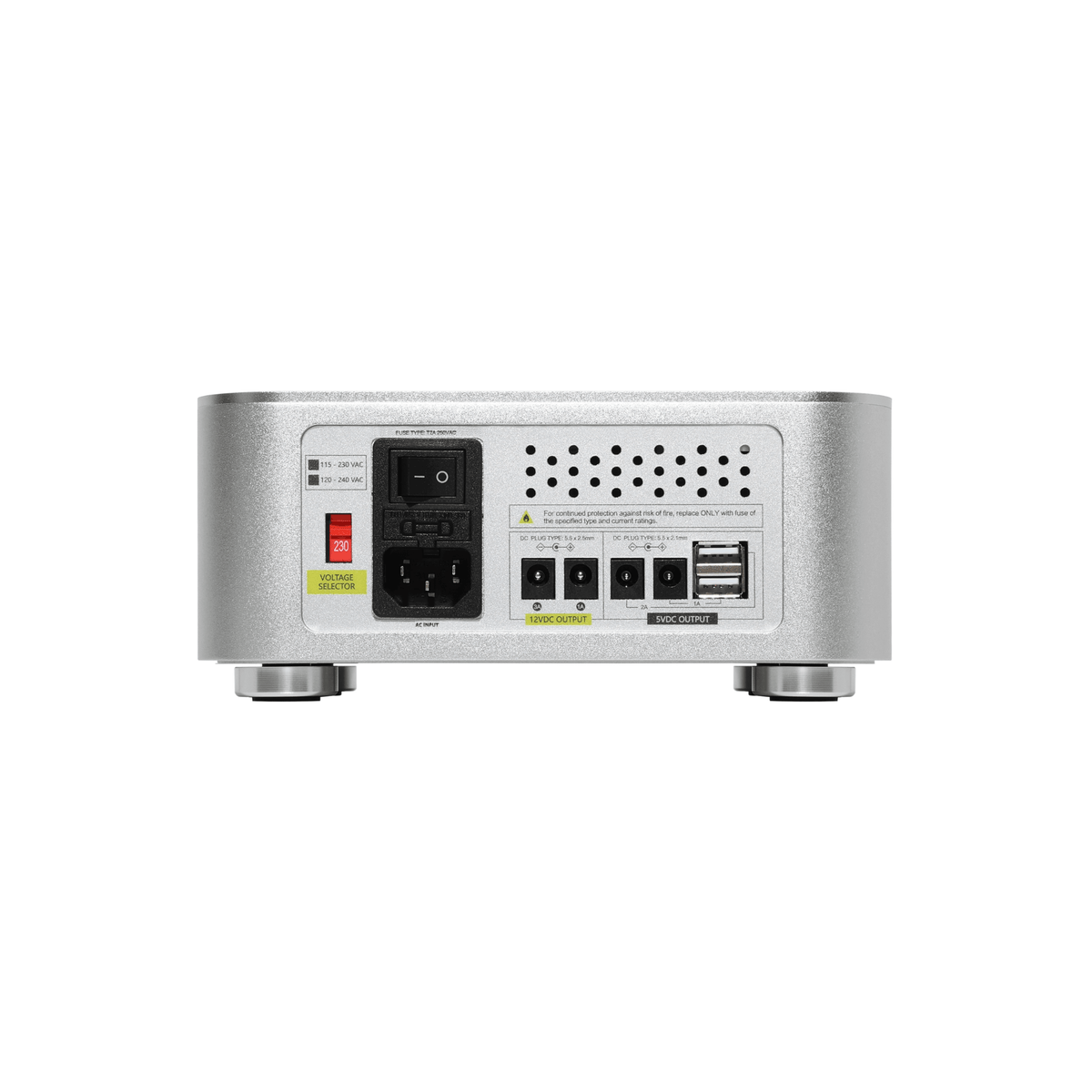

Power Output

- (DC) 12V/3A plug x 1, 5.5 x 2.5 mm
- (DC) 12V/1A plug x 1, 5.5 x 2.5 mm
- (DC) 5V/2A plug x 1, 5.5 x 2.1 mm
- (DC) 5V/1A plug x 1, 5.5 x 2.1 mm
- USB Ports*
* The same set of USB ports and DC plugs of 5V output cannot be connected simultaneously. (The two sets share the same current output)

LED Indicator

Output Status x 4
- Green light means power on and the condition is stable
- Red light means over current protection activated and power off
- No light means no power input

Output Over Temperature x 2
- Yellow light means over temperature protection activated
- No light means temperature is normal or no power input

Temperature

Operating: 0 ~ 35 °C (32 ~ 86 °F)
Storage: -20 ~ 70 °C (-4 ~ 158 °F)

Humidity

Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)

Dimensions

200(W) x 111(H) x 200(D)mm
7.88(W) inch x 4.38(H) inch x 7.88(D) inch

Weight

4.2 KG / 9.3lbs
