Experience Hi-Fi-Grade Precision Audio

Focused on Enhancing Listening Environment Precision, the Genesis GC clock enhances audio quality by utilising a premium clock source and Silent Angel’s proprietary ultra-low noise, high precision, and low phase error HiFi-grade clock technology.

LEARN MORE

Genesis GC Quick Product Guide

SPECIFICATIONS
Clock Option

25MHz

Power Input

(DC) 12V/1A, 1.2W (5.5mm x 2.5mm connector)

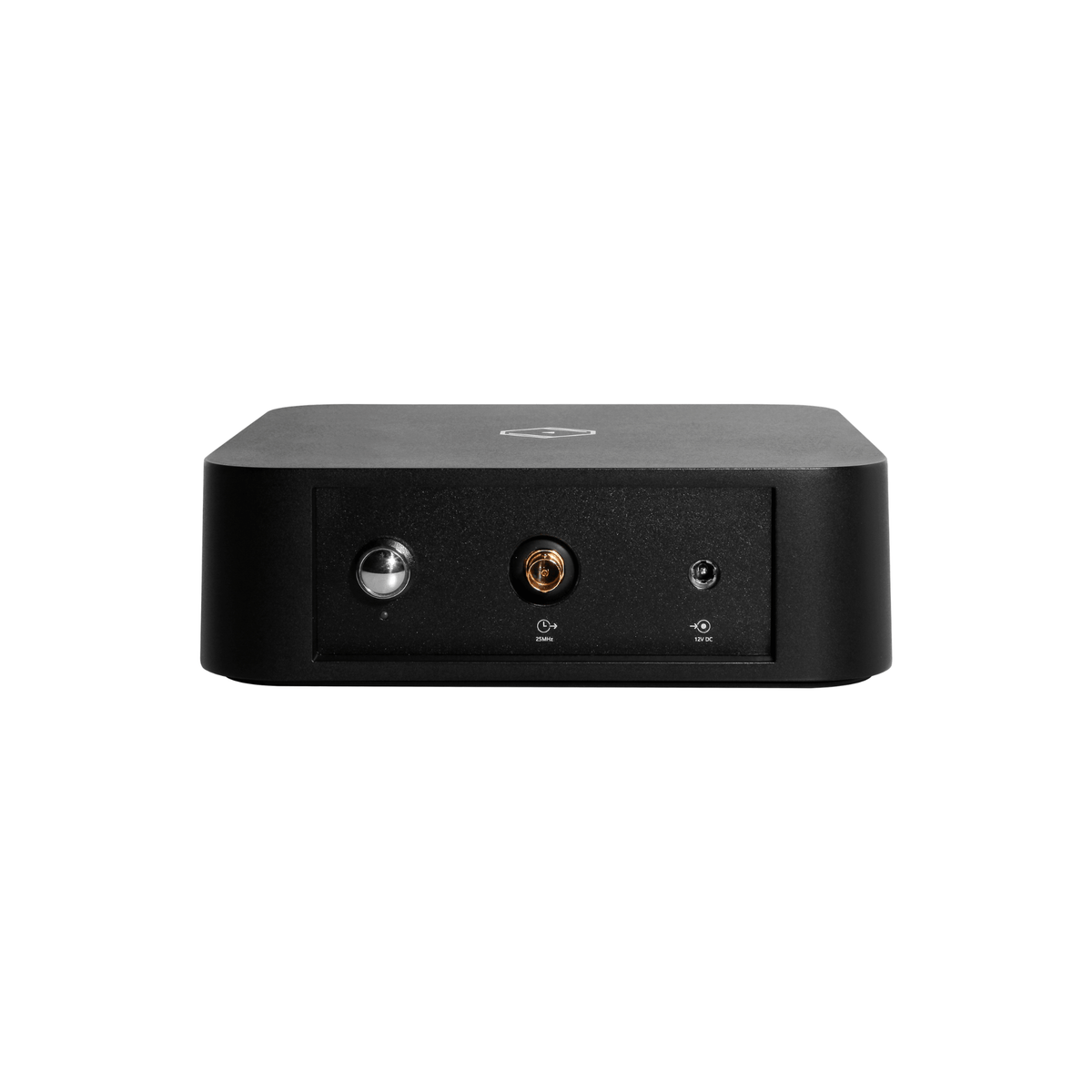

Clock Output Port

1 Port (BNC, gold-plated)

Clock Output Port Impedance

50 / 75 ohm auto-detection (default is 50 ohm)

Temperature

Operating: 32 ~ 86 °F (0 ~ 30 °C)
Storage: -4 ~ 158 °F (-20 ~ 70 °C)

Humidity

Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)

Certificate

CE, FCC, PSE

DIMENSIONS
Dimensions

200(W) * 62(H) * 200(D)mm
7.88(W) * 2.45(H) * 7.88(D) inches

Weight

Net: 2.8kg (6.18lbs) / Gross: 3.6kg (7.94lbs)
