Silent Angel

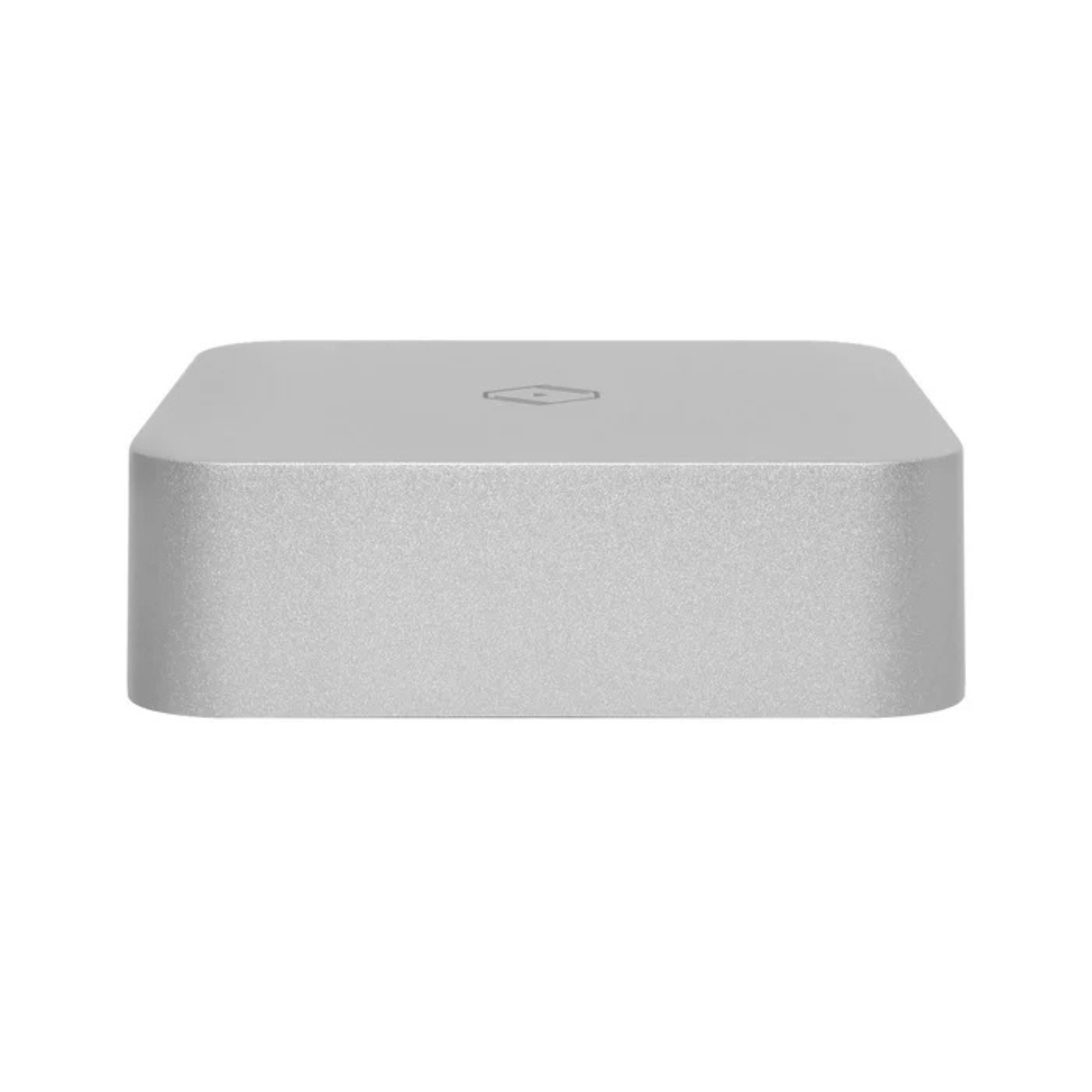

The Perfect Entry-Level HiFi Music Server, Delivering Uncompromised Streaming Experience

Tailored for popular music streaming services, the Z1C boasts Silent Angel’s famed audio-grade OS (VitOS), network streaming capabilities, music library features, and electro-magnetic signal optimization, delivering a unique digital audio experience.
SPECIFICATIONS

Download Z1C Quick Start Guide

CPU

Intel Quad-core CPU J4125

RAM

8GB

Storage

NVMe SSD, 250GB / 1TB /2TB / 4TB

Audio Format

AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD (DSF, DFF), WAV64, AIFF, CUE Files, WMA, APE*Max. Supported DSD Sample Rate: DSD256 (11.2MHz)

Ethernet

1GbE x 1

USB Audio Port

USB Audio Port x 1

Expansion USB Port

USB 3.1 x 2
USB 2.0 x 1

External Clock Input Port

10MHz x 1

Chassis Material

Aluminum alloy chassis

Input Power

External power 12V / 3A (5.5mm x 2.5mm connector)

Temperature

Operating: 32 ~ 86 °F (0 ~ 30 °C)
Storage: -4 ~ 158 °F (-20 ~ 70 °C)

Humidity

Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)

Certificate

CE, FCC

DIMENSIONS

Dimension

7.87(W) inch x 2.56(H) inch x 7.87(D) inch
200(W) mm x 65(H) mm x 200(D) mm

Weight

7.5lbs / 3.4kg

A Shiny New Product In The HiFi Music Server Market

Tailored for popular music streaming services, the Z1C boasts Silent Angel's famed audio-grade OS (VitOS), network streaming capabilities, music library features, and electro-magnetic signal optimisation, delivering a unique digital audio experience.

Innovative Technology, Redefining Entry-Level Music Server Standards

Versatile High-Format Resolution Support

Supports a large number of high-resolution audio formats for digital audiophiles

Hi-Res Streaming Platform Capability

Compatible with most major streaming platforms

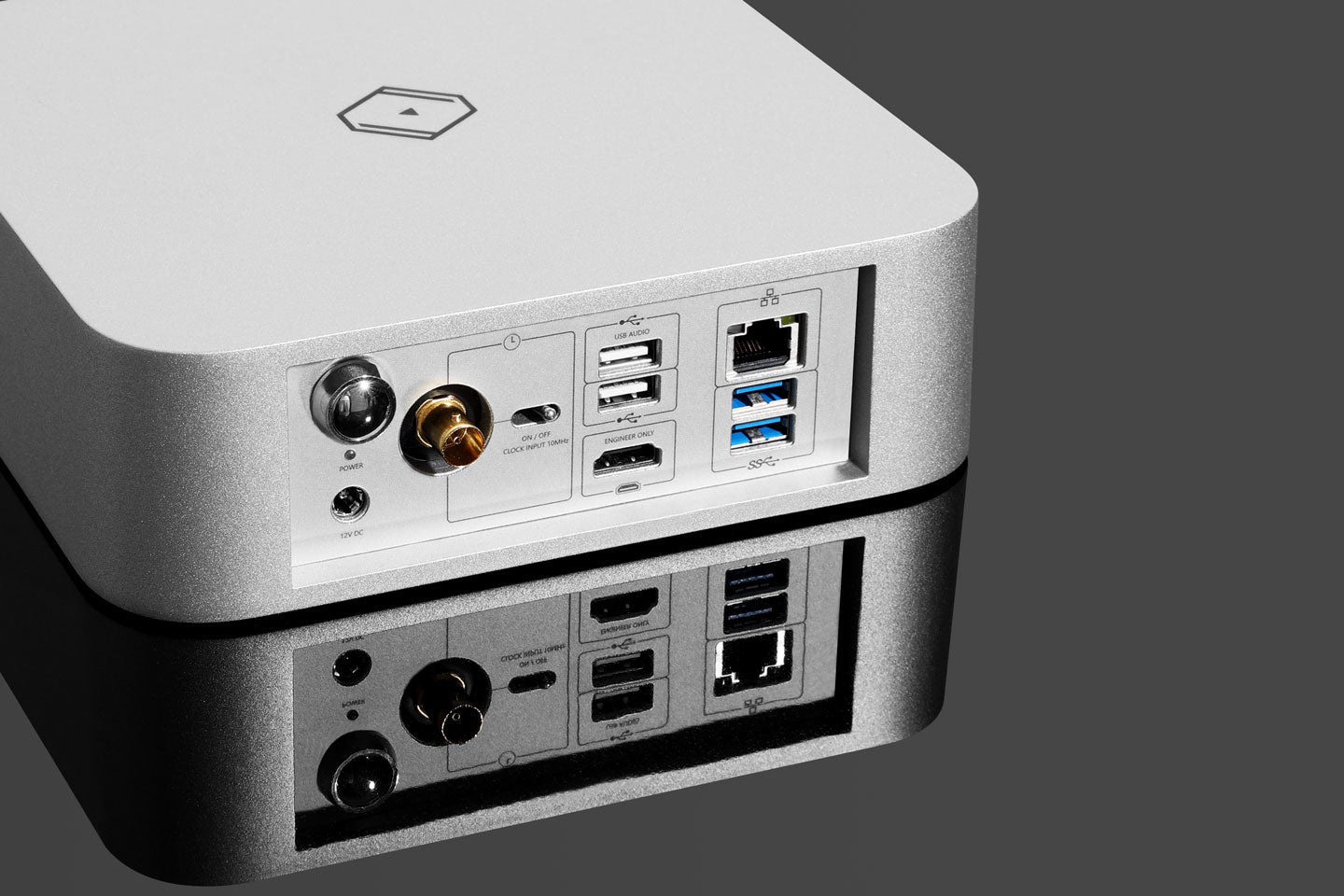

External Word Clock Input

Enables seamless clock upgrades with the silent angel word clock

TCXO - High Precision Clock Signal

Minimises network latency and jitter problems

Support Multi Player Streaming

Simultaneous delivery of up to 10 audio endpoints

Latest Storage Subsystem

Supports High Capacity and high speed NVMe SSD Storage

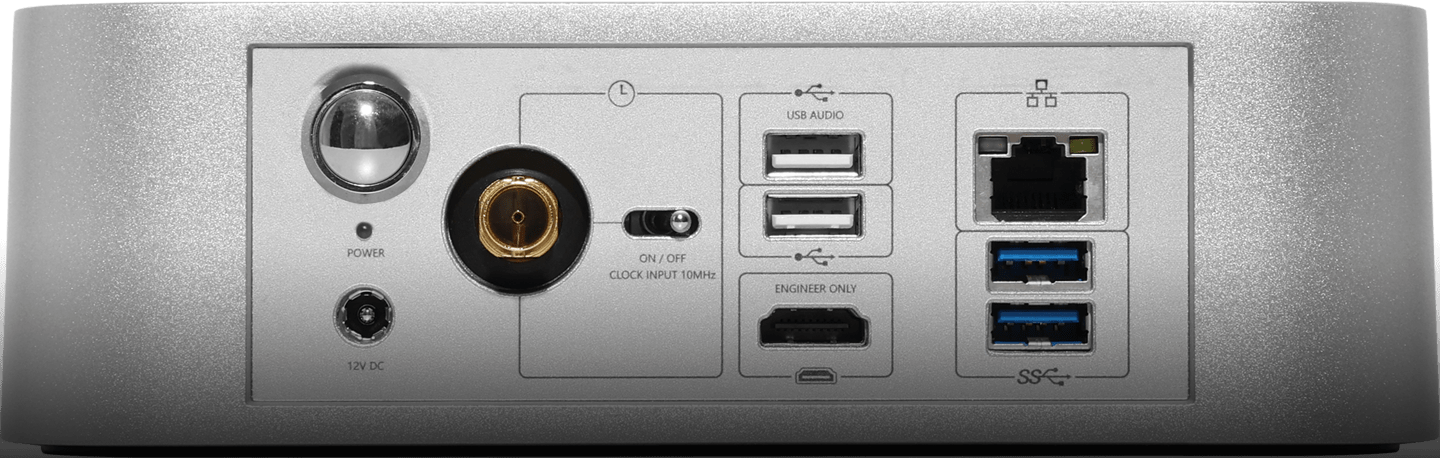

Enhanced Interface For High-Fidelity Digital Music

Elevate Audio Quality with Clock Selector. Utilize an external 10MHz clock source connected to the Z1C for precise timing and optimal performance. By selecting the appropriate clock source, you can further enhance the quality of your audio playback and immerse yourself in a truly captivating listening experience.

Versatile Audio Outputs with Expandable DAC connectivity. Optimized USB Audio port for rich high-definition digital signal delivery, meeting diverse connection needs.

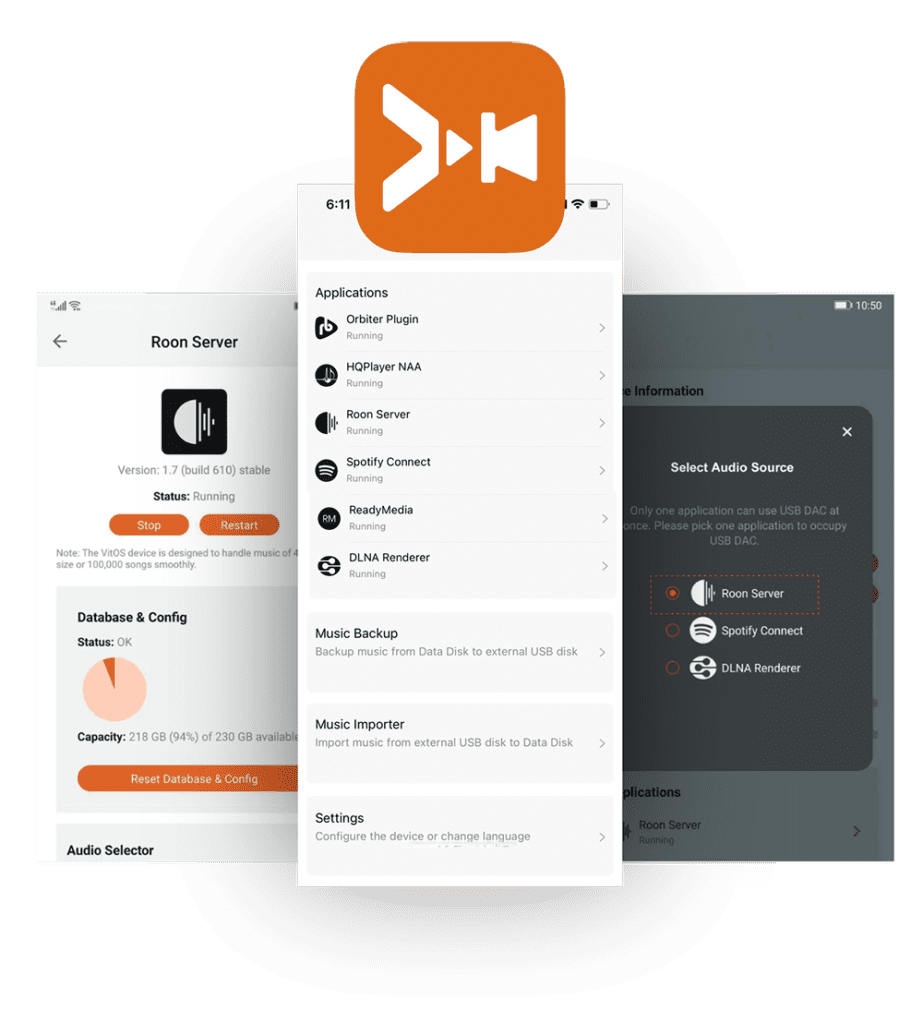

Mobile App, VitOS Manager

  • Discover and configure the network settings of Z1C.
  • Install and manage add-on packages on VitOS, including Roon Server (Roon Core and Roon Bridge), Spotify Connect, DLNA renderer & server, Orbiter Plug-in, and more on the Z1C.
  • Import the music files from a USB hard drive to Z1Cs internal disk with the Music Importer feature.
  • Back up the stored music files to an external USB hard drive with the Music Backup feature.
  • Online firmware update push.

Internal NVMe SSD

NAS Server

Laptop

External Drive

USB Drive
