GoldenEar

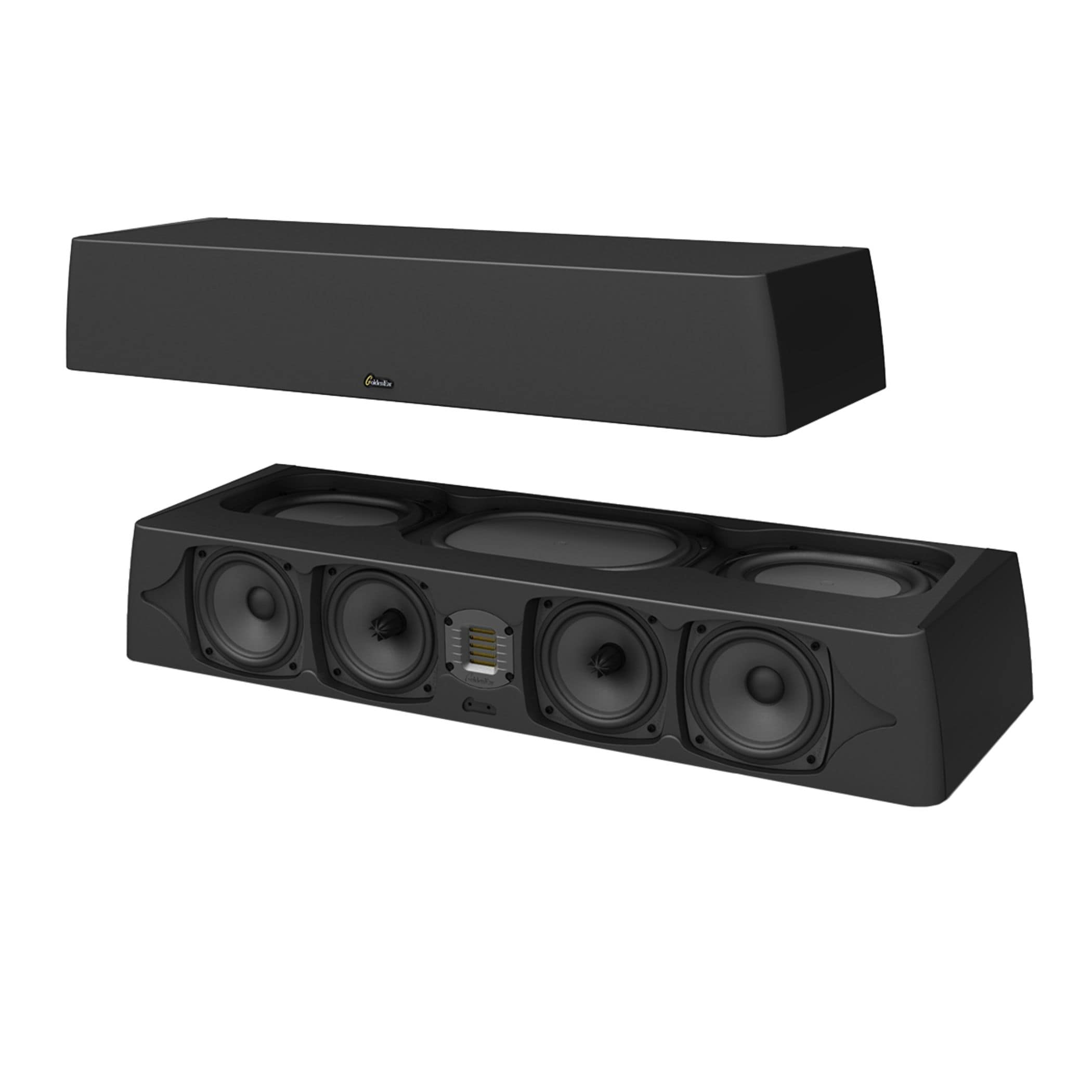

The top of the SuperCenter lineup is the reference-performance SuperCenter Reference, the perfect match for large GoldenEar home theater systems. Only 35” wide, it includes four 5-1/4″ drivers utilizing the focused-field magnet structure developed for the Triton Reference, the GoldenEar One Reference High-Velocity Folded Ribbon AMT Tweeter, and three planar passive radiators. Our unique linear-phase crossover network employs a fully balanced topology which reduces stray capacitances for dramatically improved clarity.

It utilizes precision film capacitors and special internal wiring to perfectly blend the drivers for a seamless homogeneous sound. There are three separate internal chambers: a larger one in the center which contains two 5-1/4˝ drivers which run up to meet the tweeter and are coupled to the larger, 7˝ x 10˝ passive radiator in the center, and two smaller ones which each contain a special 5-1/4˝ driver engineered for low frequency response, which runs up to 500 Hz, and is coupled to one of the smaller, 6-3/4˝ x 8˝ passives

SPECIFICATIONS
Driver Complement

One Reference High-Velocity Folded Ribbon AMT Tweeter

Four 5.25" Cast-Basket Mid/Bass Drivers

Two 6.7"˝ x 8" Quadratic Planar Low-Frequency Radiators; One 7" x 10" Quadratic Planar

Passive Radiator Surface Area

53.36in2(344.3cm2)

Efficiency

90dB 1W/1M @ 4Ω (2.83V/1M)

Frequency Response

38Hz – 25kHz (-6dB on axis @ 65Hz, anechoic bass response)

Nominal Impedance

Low-Frequency Radiator Recommended Amplification

20–350Wpc

DIMENSIONS

Dimensions
35" (88.9 cm) W x 5.75" (14.6 cm) H x 11" (28 cm) D

Weight
Product: 31 lbs (14 kg) / Shipping: 38 lbs (17.2 kg)
